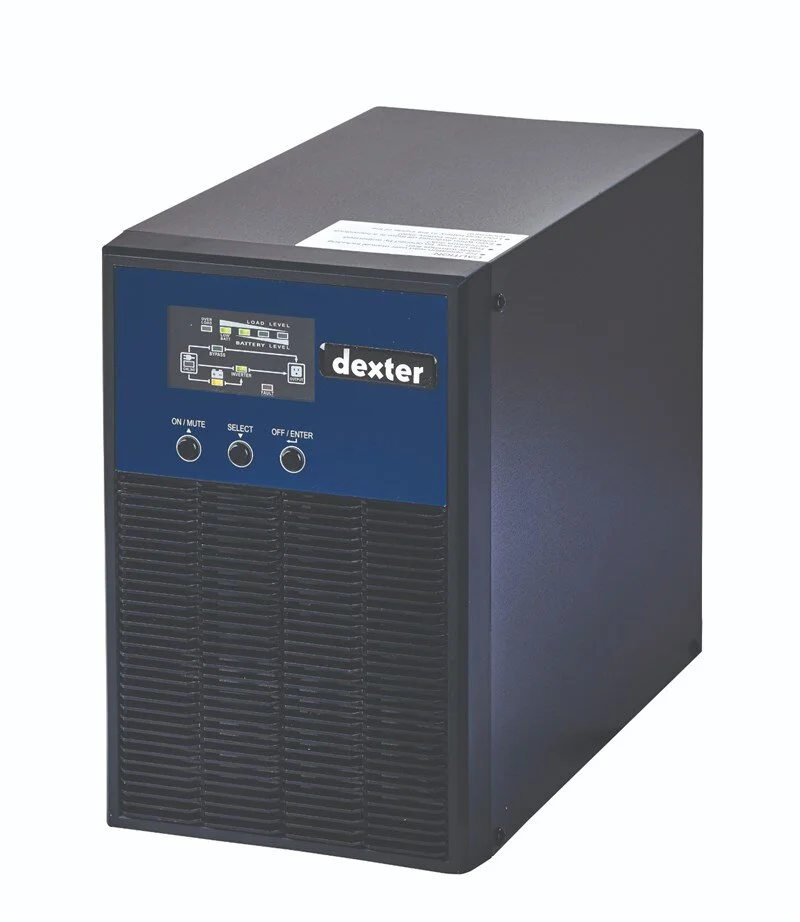

TUNCMATIK DEXTER 1KVA ON-LINE
371,89 лв.
В наличност
Капацитет: 1000 VA / 800 W
Вход: Voltage Range:Low Voltage Transfer-110VAC / 120VAC / 140VAC / 160VAC ±5% (Temperature <35°C) (Based on load percentage 0 – 60% / 60% – 70% / 70% – 80% / 80% – 100%); High Voltage Transfer:300VAC ±5%; Frequency Range:40 Hz～70 Hz; Phase:Single phase + Ground; Power Factor:≥0.99 (@ Nominal input voltage)
Изход: Output Voltage:200/208/220/230/240 VAC; Outpu Power Factor (PF):0.8; AC Voltage Regulation (Bat. Mode):±1%; Frequency Range:47～53 Hz veya 57～63 Hz (Sync. Mode); Frequency Range (Battery Mode):50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz; Overload:Temperature <35°C; %105～%110: UPS shuts down after 10min or transfer to bypass; %110～%130: UPS shuts down after 1min or transfer to bypass; >%130: UPS shuts down after 3sec or transfer to bypass; Crest Factor:3:1; Harmonic Distortion:≤3% THD (Linear load), ≤6% THD (Non-linear load); Transfer Time:Line ↔ Battery Mode-0 msn; Inverter ↔ Bypass:4 msn (Typical); Waveform:Pure Sinewave
Батерия: Standard Model:Batery Type-12V/9AH; Number of Batteries:2; Charging Time:4 hours recover to 90% capacity (Typical); Charge Current:1.0A (max.); Charge Voltage:27.4VDC ±1%;
Заобикаляща среда: Operating Temperature:0 – 40°C; Humidity:20-90% relative humidity (non-condensing); Noise Level:<50dBA, from 1 meter
Тегло: Standard Model:27.6 kg
Размери: Standard Model:190 x 421 x 318mm;
Други: EFFICIENCY:Line Mode-88%; Battery Mode:83%
Производител: TUNCMATIK
Гаранция: 24 месеца
