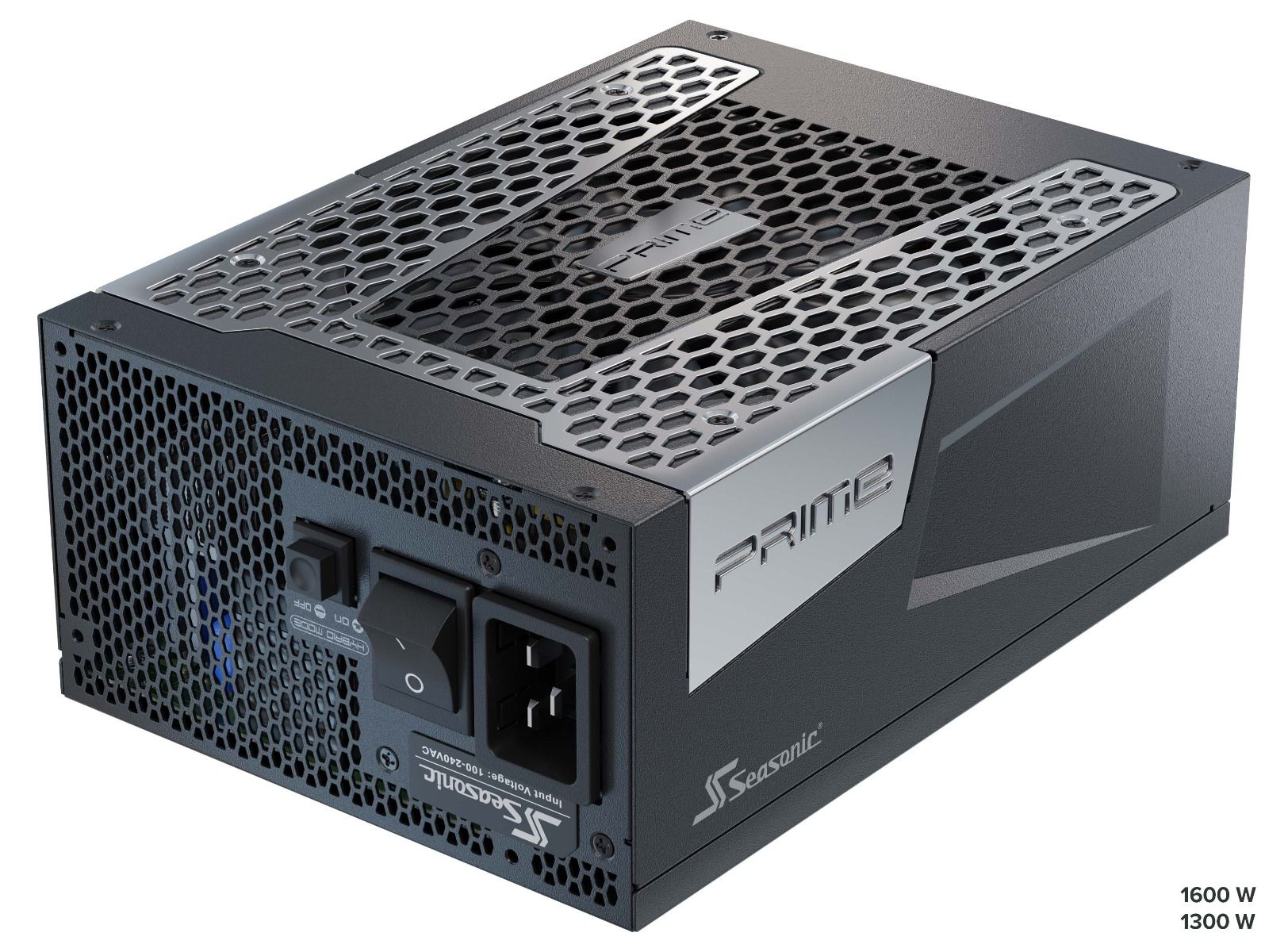

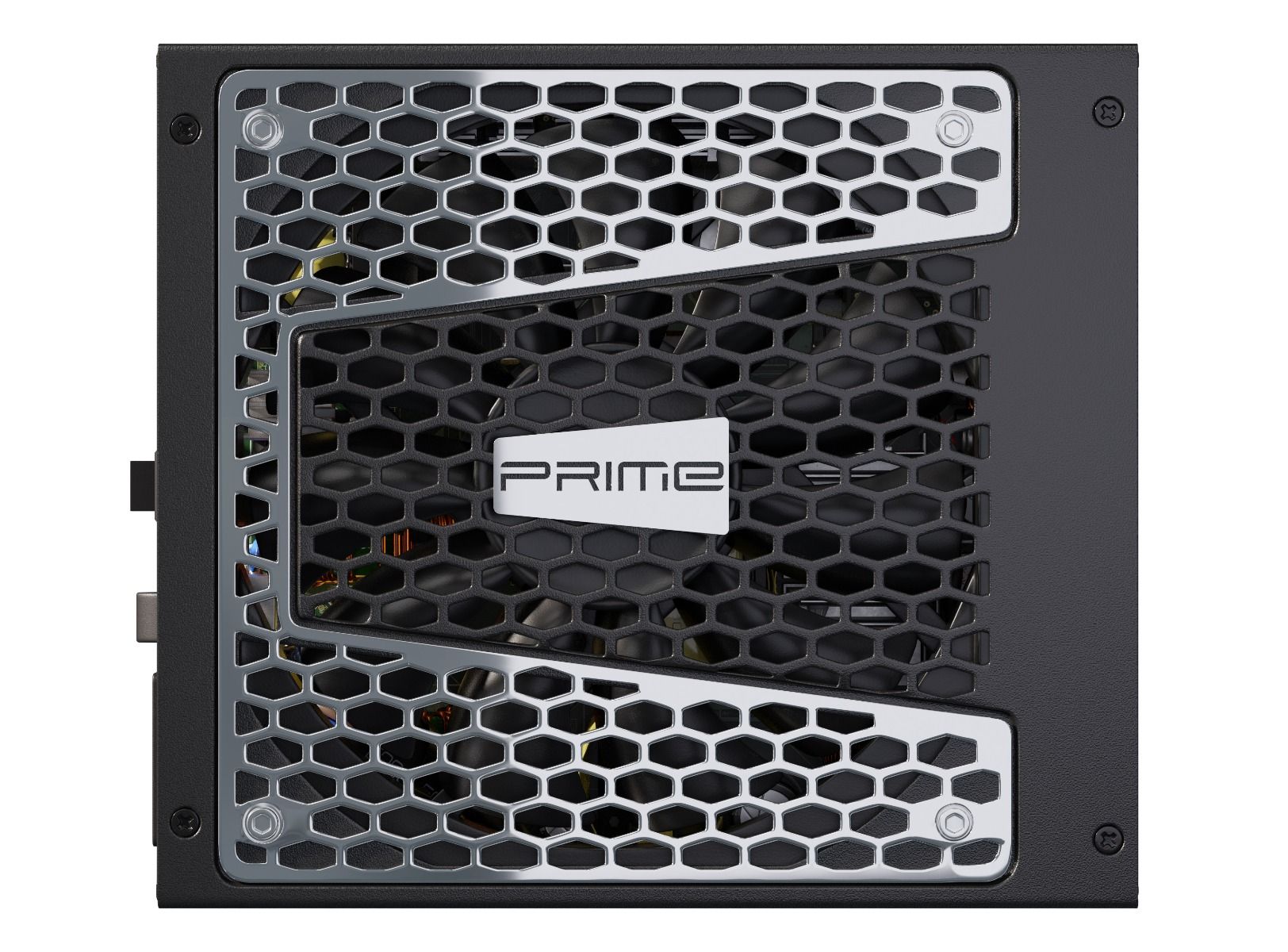

SEASONIC SSR-1300TR TITANIUM

Форма фактор: Intel ATX 12 V

AC вход: Voltage: 100 V – 240 V; Current: 15 – 8 A; Frequency: 50 Hz – 60 Hz

DC изход: Rail:+3.3 V/+5 V/+12 V/-12 V/+5 VSB; Maximum Power:25 A/25 A /108.3 A/0.5 A/3 A; 125 W/1300 W/6 W/15 W; Total Continuous Power:1300 W

Конектори: MB (24/20 pins):1-610-1; CPU (8/4 pins):1-700-3; PCIe (8/6 pins):2-750-0; PCIe (8/6 pins):1-750-8; SATA:4-950-4; SATA:4-860-0; SATA:4-760 -0; SATA 3.3 V:2-550-1; SATA:2-570-0; SATA:2-470-0; SATA:2-450-0; Molex:3-690-1; Molex:2-470-0; 12VHPWR :1 (12+4 Pins to 8+8 Pins)-750-2

Информация за вентилатора: Fan Size:135 mm; Fan Control:Premium Hybrid Fan Control; Fan Bearing:Fluid Dynamic Bearing; Life Expectancy:50,000 hours at 40 °C, 15 % – 65 % RH

Информация за кабела: Modularity:Fully Modular; Cable type:Flat black cables

Характеристика: Operating Temperature:0 – 50 °C; MTBF @ 25 °C, excl. fan:150,000 hours; AC Input:Full Range; Protection:OPP, OVP, UVP, OCP, OTP, SCP

Безопасност и опазване на околната среда: Safety and EMC:cTUVus, TUV, CB, CCC, BSMI, EAC, CE; Environmental Compliance:Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Размери: 210 mm (L) x 150 mm (W) x 86 mm (H)

Производител: SEASONIC

Гаранция: 99 месеца
