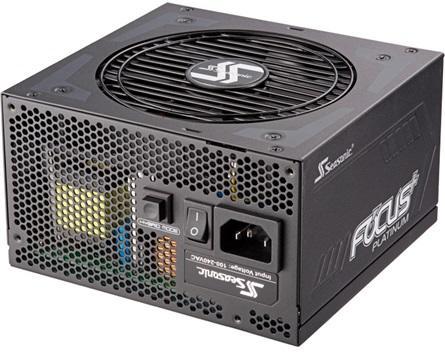

PSU SEASONIC SSR-850PX PLATINU

Форма фактор: Intel ATX 12 V

AC вход: Voltage: 100 V – 240 V; Current: 11 – 5.5 A; Frequency: 50 Hz – 60 Hz

DC изход: Rail:+3.3 V/+5 V/+12 V/-12 V/+5 VSB; Maximum Power:20 A/20 A /70 A /0.3 A /3 A; 100 W /840 W /3.6 W/ 15 W; Total continuous power:850 W

Конектори: MB (24/20 pins) 1-610-1; CPU-650 CPU (8/4 pins)-1-650-2; PCIe (8/6 pins):2-750-3; PCIe (8/6 pins):1-750-0; SATA:4-810-2; SATA:4-800-0; SATA:4-760 -0; SATA:2-700-0; SATA:2-570-1; SATA:2-470-0; SATA:2-450-0; Molex:3-690-1; Molex:2-470-0; Molex to SATA 3.3 Adapter:2-300-0; Molex to FDD Adapter:1-101 -1

Информация за вентилатора: Fan Size:120 mm; Fan Control:S3FC – Fanless until 30 % load; Fan Bearing:Fluid Dynamic Bearing; Life Expectancy:50,000 hours at 40 °C, 15 % – 65 % RH

Информация за кабела: Modularity:Fully Modular; Cable type“:Flat black cables

Характеристика: Operating Temperature:0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C); MTBF @ 25 °C, excl. fan:100,000 hours; AC Input:Full Range; Protection:OPP, OVP, UVP, OCP, OTP, SCP

Безопасност и опазване на околната среда: Safety and EMC:cTUVus, TUV, CB, CCC, BSMI, EAC, CE; Environmental Compliance:Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Размери: 140 mm (L) x 150 mm (W) x 86 mm (H)

Производител: SEASONIC
