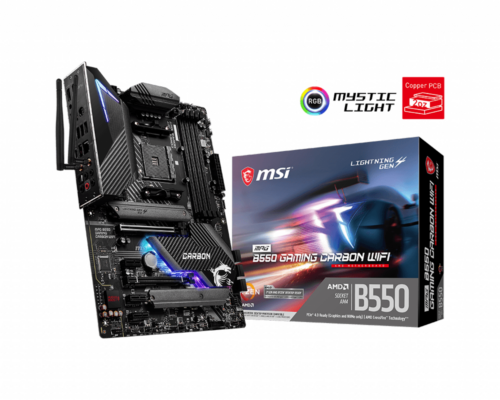

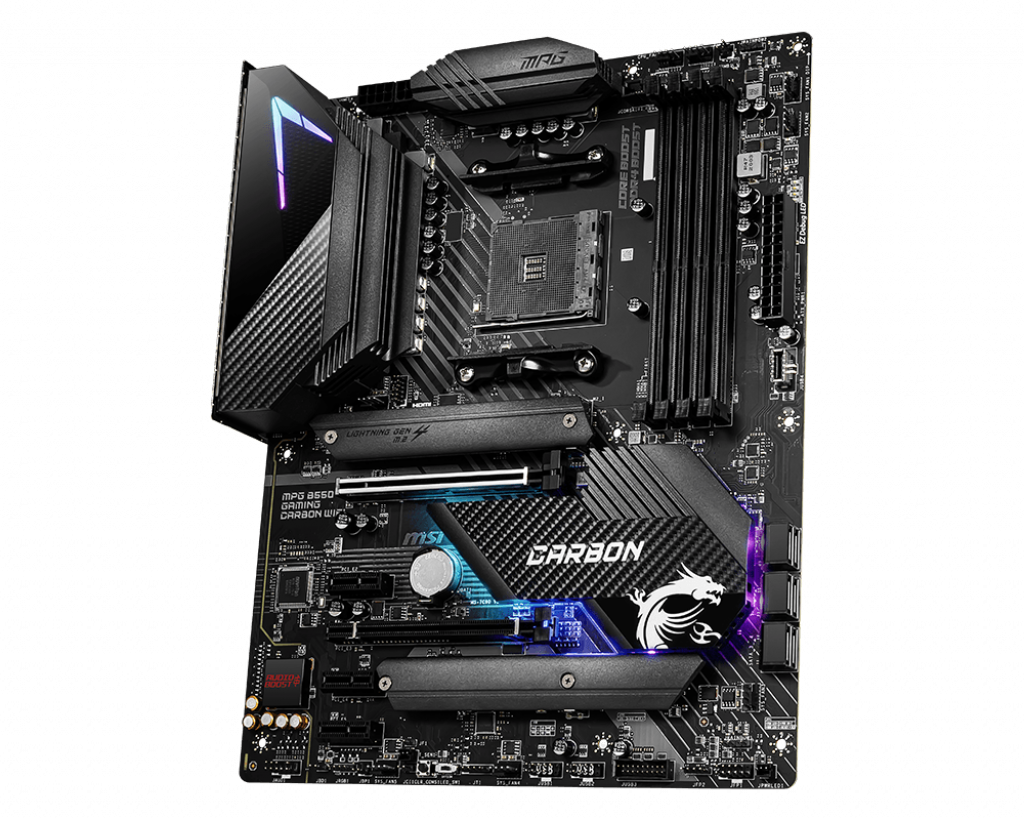

MSI MPG B550 GAMIN CARBON WIFI

Тип памет: 4x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE; 1DPC 1R max speed 5100 MHZ; 1DPC 2R max speed 3866 MHZ; 2DPC 1R max speed 4000 MHZ; 2DPC 2R max speed 3600 MHZ; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory

CPU’s supported: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Чипсет: AMD B550 Chipset

Графика: 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1 2; 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz 1; Maximum shared memory of 16GB

Слотове за разширение: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 3x PCIe 3.0 x1 slots

Съхранение: AMD B550 Chipset; 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0×4; Supports 2242/ 2260/ 2280 storage devices

I/O: DisplayPort; PS/2 Combo Port; USB 2.0; 2.5G LAN; HD Audio Connectors; HDMI; Flash BIOS Button; USB 2.0; USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2 10Gbps (Type-A+C); Wi-Fi / Bluetooth; Optical S/PDIF OUT

Конектори: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x RGB CORSAIR connector; 1x TPM module connector; 1x Clear CMOS jumper

Аудио: Realtek® ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output

LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller

Форма фактор: ATX Form Factor; 12 in. x 9.6 in. (30.4 cm x 24.4 cm)

Други: Intel® Wi-Fi 6 AX200; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth® 5.1

Производител: MSI

Гаранция: 36 месеца
