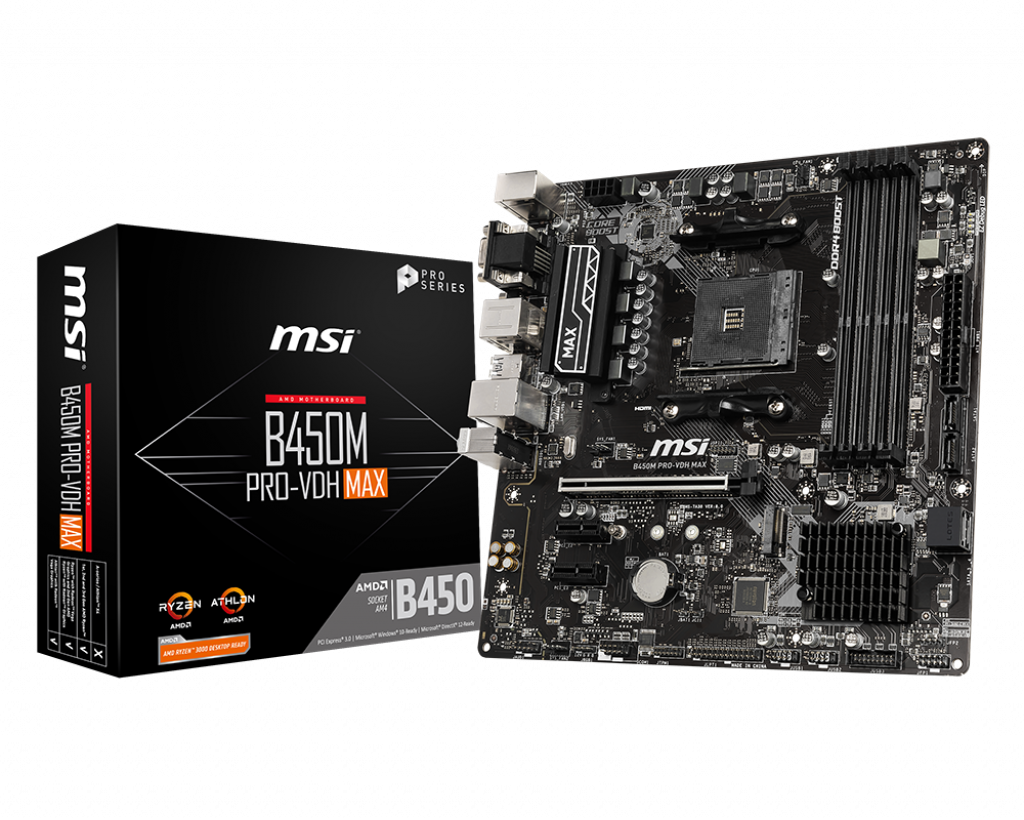

MSI B450M PRO-VDH MAX

CPU’s supported: Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Тип памет: 4 x DDR4 memory slots, support up to 64GB1; Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); For AMD Ryzen Gen3 (R5/R7/R9); Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE); For AMD Other Processors; Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE); Supports Dual Channel mode; Supports ECC UDIMM memory (non-ECC mode); Support non-ECC UDIMM memory

Чипсет: AMD® B450 Chipset

Гнездо: AM4

Графика: 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz1,2<; 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1,2<; 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1,2<; Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB

Слотове за разширение: 1 x PCIe 3.0 x16 slot; 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode; Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode; Athlon™ with Radeon™ Vega Graphics support x4 mode; 2 x PCIe 2.0 x1 slots

Съхранение: AMD® B450 Chipset; 4 x SATA 6Gb/s ports; Supports RAID 0, RAID1 and RAID 10; 1 x M.2 slot (Key M); Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s; Supports 2242/ 2260 /2280 storage devices

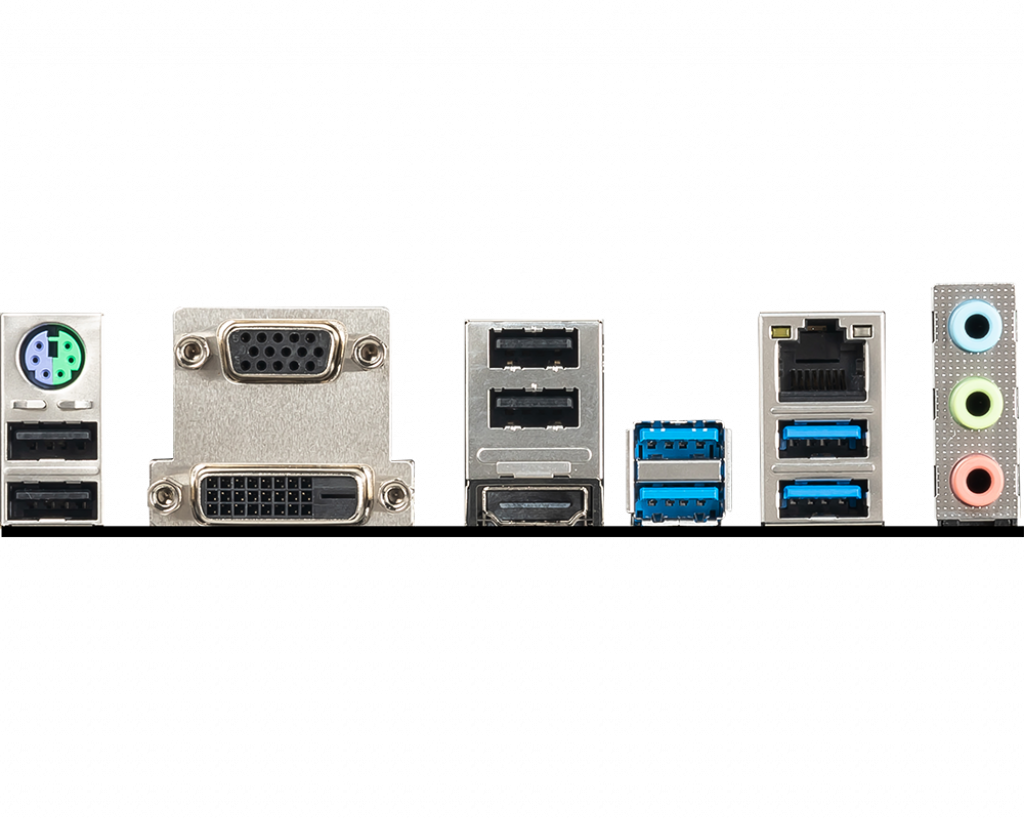

I/O: PS/2; VGA Port; USB 2.0 Port; USB 3.2 Gen1; LAN Port; HD Audio Connectors; DVI-D Port; HDMI Port

Конектори: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports); 1 x 4-pin CPU fan connector; 2 x 4-pin system fan connectors; 1 x Front panel audio connector; 2 x Front panel connectors; 1 x TPM module connector; 1 x Chassis Intrusion connector; 1 x Serial port connector; 1 x Parallel port connector; 1 x RGB LED strip connector; 1 x Clear CMOS jumper

Аудио: Realtek® ALC892 Codec:7.1-Channel High Definition Audio

LAN: 1 x Realtek® 8111H Gigabit LAN controller

Форма фактор: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm); m-ATX Form Factor

операционна система: Support for Windows® 10 64-bit; Support for Windows® 7 64-bit

Производител: MSI

Гаранция: 36 месеца
