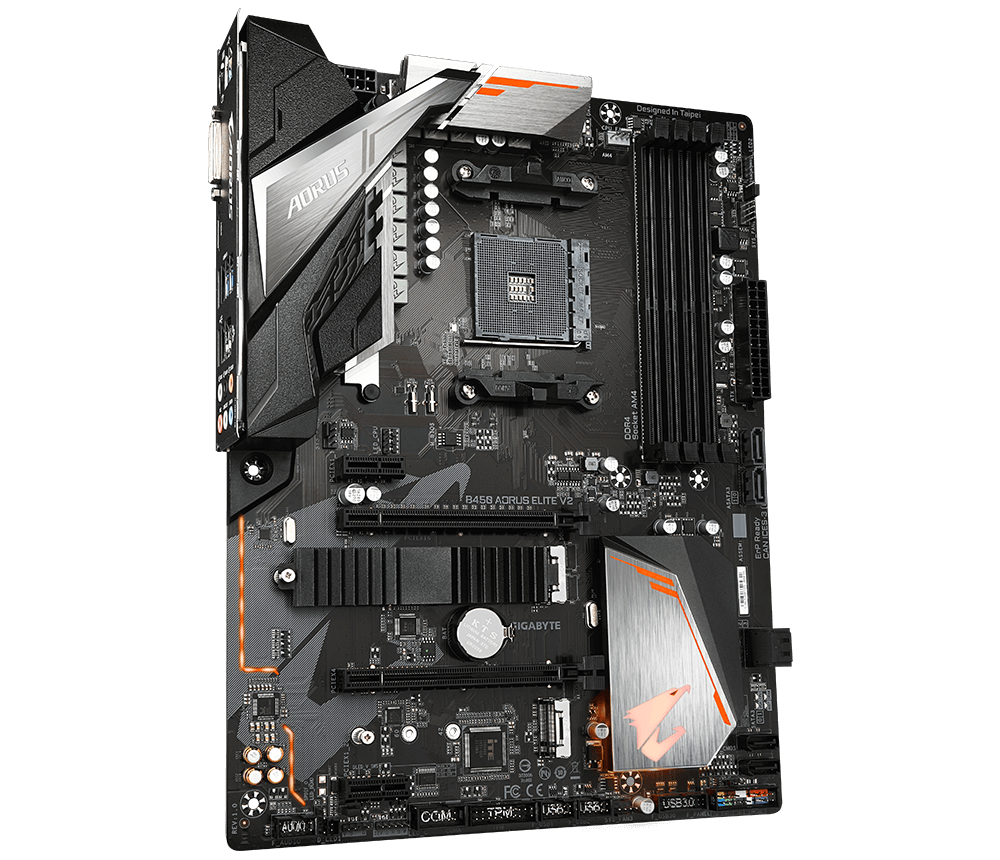

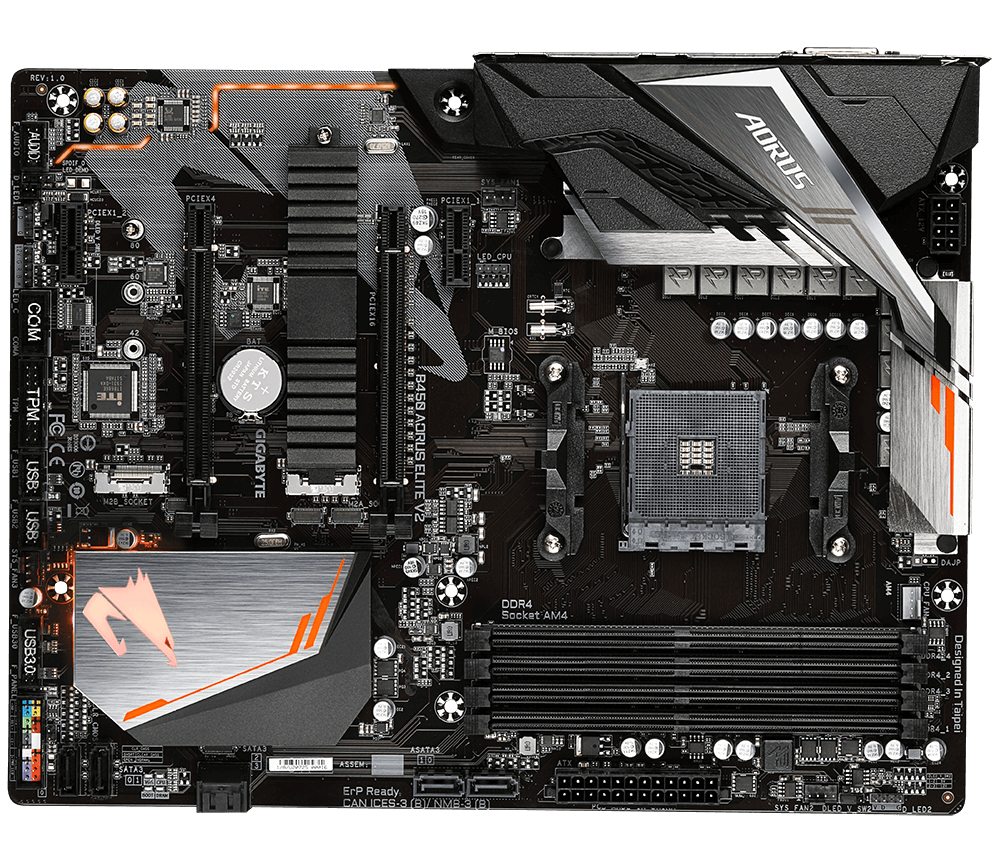

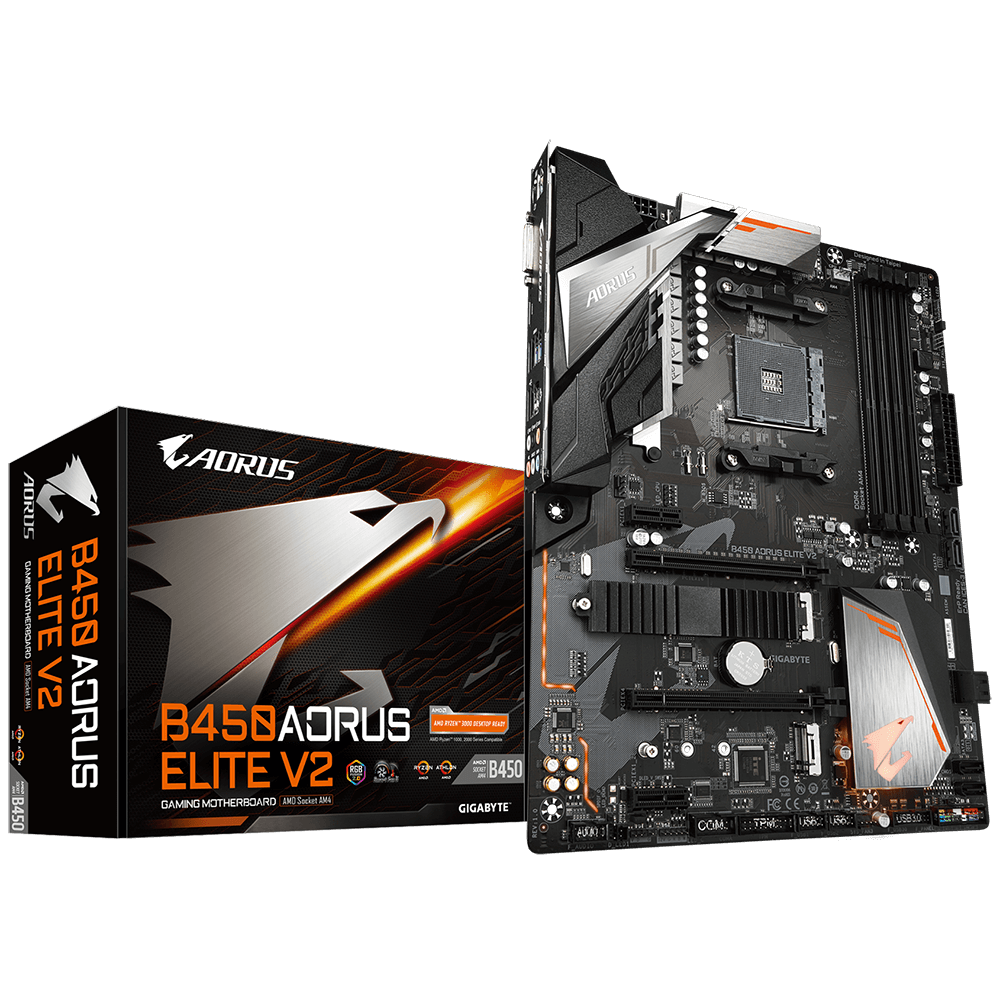

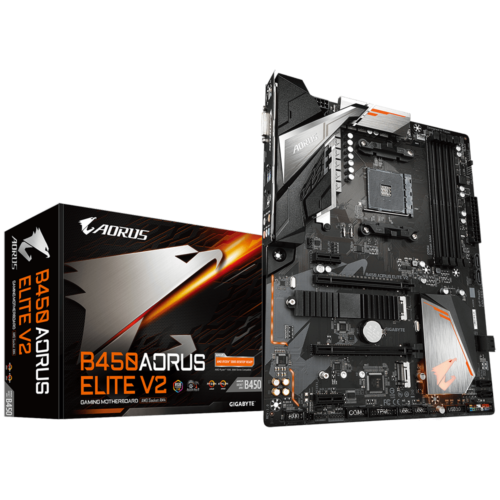

GB B450 AORUS ELITE V2 /AM4

CPU’s supported: AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Тип памет: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

Чипсет: AMD B450

Графика: Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60(Note) Hz(Note); * Support for HDMI 2.0 version and HDCP 2.2.(Note); Maximum shared memory of 16 GB

Слотове за разширение: 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 1 x PCI Express x16 slot, running at x4 (PCIEX4); * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty. 2 x PCI Express x1 slots; (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)

Съхранение: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET); 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET); 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10

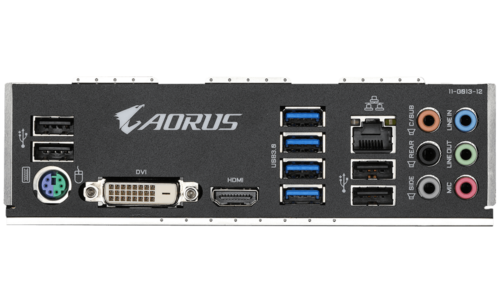

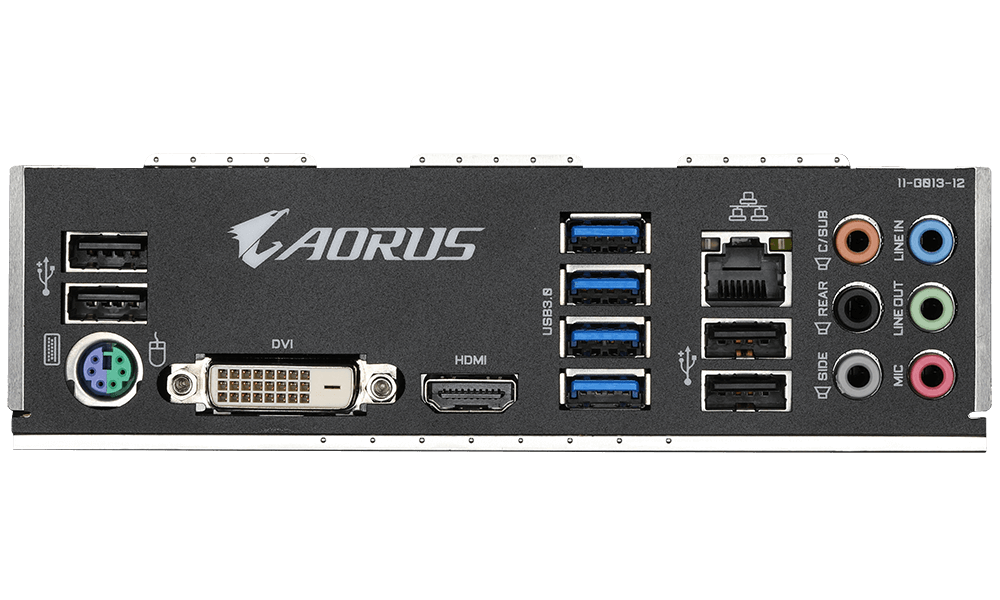

I/O: 1 x PS/2 keyboard/mouse port; 1 x DVI-D port; 1 x HDMI port; 4 x USB 3.1 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 6 x audio jacks

Конектори: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 2 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x CPU fan header; 3 x system fan headers; 1 x CPU cooler LED strip/RGB LED strip extension cable header; 1 x RGB (RGBW) LED strip header; 2 x digital LED strip headers; 2 x digital LED strip power select jumpers; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 1 x USB 3.1 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only); 1 x serial port header; 1 x Clear CMOS jumper

Аудио: Realtek® ALC892 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out

LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)

BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Форма фактор: ATX Form Factor; 30.5cm x 23.5cm

операционна система: Support for Windows 10 64-bit

Производител: GIGABYTE

Гаранция: 36 месеца
