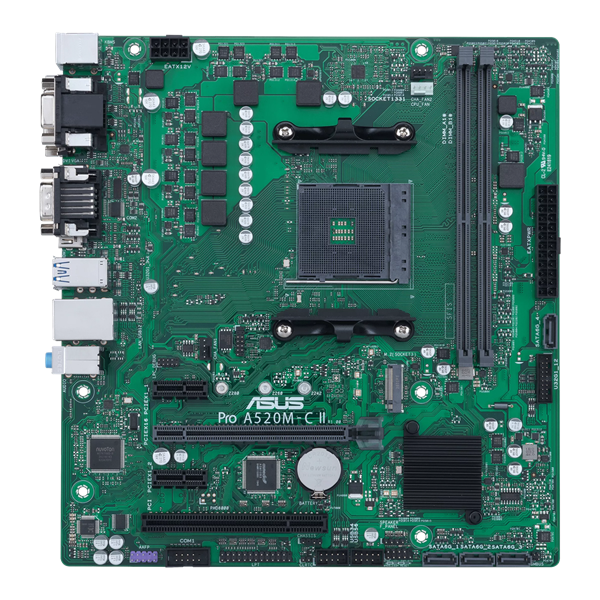

ASUS PRO A520M-C II/CSM /AM4

USB: 4 x USB 3.2 Gen 1 ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB:Total 6 ports;1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports

производител: ASUS

Тип памет: DDR4;4866(O.C.)/ 4600(O.C.)/ 4466(O.C.)/ 4400(O.C.)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 346(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory;Dual Channel Memory Architecture

Характеристика: ASUS Q-Design;- ASUS Q-DIMM;- ASUS Q-Slot;ASUS Thermal Solution;- Aluminum heatsink design;ASUS EZ DIY;- Box Headers;Bespoke Motherboard Design & Business Focused Features;- ASUS Self Recovering BIOS;- ASUS Event Log;- ASUS Commercial BIOS kit;- Anti-Moisture Coating;- 24/7 Reliability;- Overcurrent Protection;TPM 2.0 IC Onboard;Software Features;ASUS Exclusive Software;IT Management software supported;- ASUS Control Center Express(ACCE)

CPU’s supported: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Чипсет: A520

Графика: 1 x DisplayPort 1.2;1 x D-Sub;1 x DVI-D;1 x HDMI™ 2.1(4K@60Hz)

Слотове за разширение: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors;1 x PCIe 3.0 x16 slot (supports x16 mode);AMD A520 Chipset;2 x PCIe 3.0 x1 slots;1 x PCI slot

Съхранение: Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors;M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes);AMD A520 Chipset;4 x SATA 6Gb/s ports;Support RAID 0, 1, 10

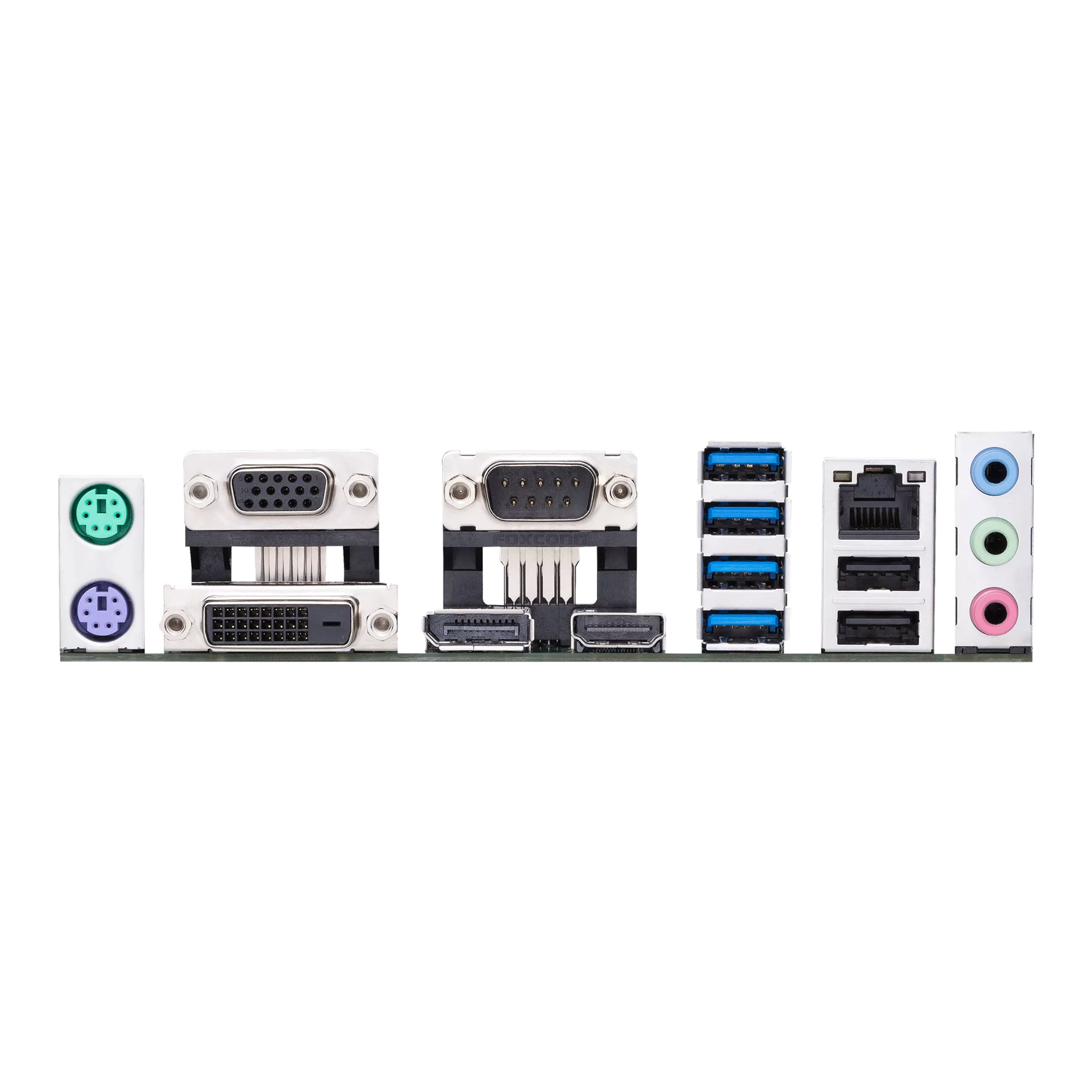

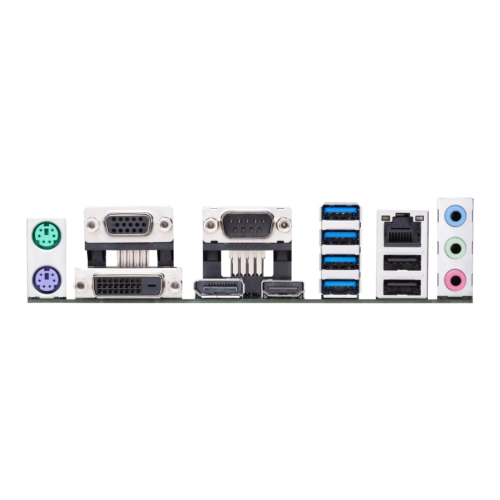

I/O: 4 x USB 3.2 Gen 1 ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x D-Sub port;1 x DVI-D port;1 x HDMI™ port;1 x Realtek 1Gb Ethernet port;3 x Audio jacks;1 x COM port;1 x PS/2 Keyboard (purple) port;1 x PS/2 Mouse (green) port

Конектори: Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;1 x M.2 slot (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports;Miscellaneous;1 x Clear CMOS header;1 x Chassis Intrude header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x LPC debug header;1 x LPT header;1 x SMBUS header;1 x Speaker header;1 x 10-1 pin System Panel header

Аудио: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

LAN: 1 x Realtek 1Gb Ethernet

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Форма фактор: 24.4cm x 22.9cm

операционна система: Windows 10 64bit

Производител: ASUS

Гаранция: 36 месеца
