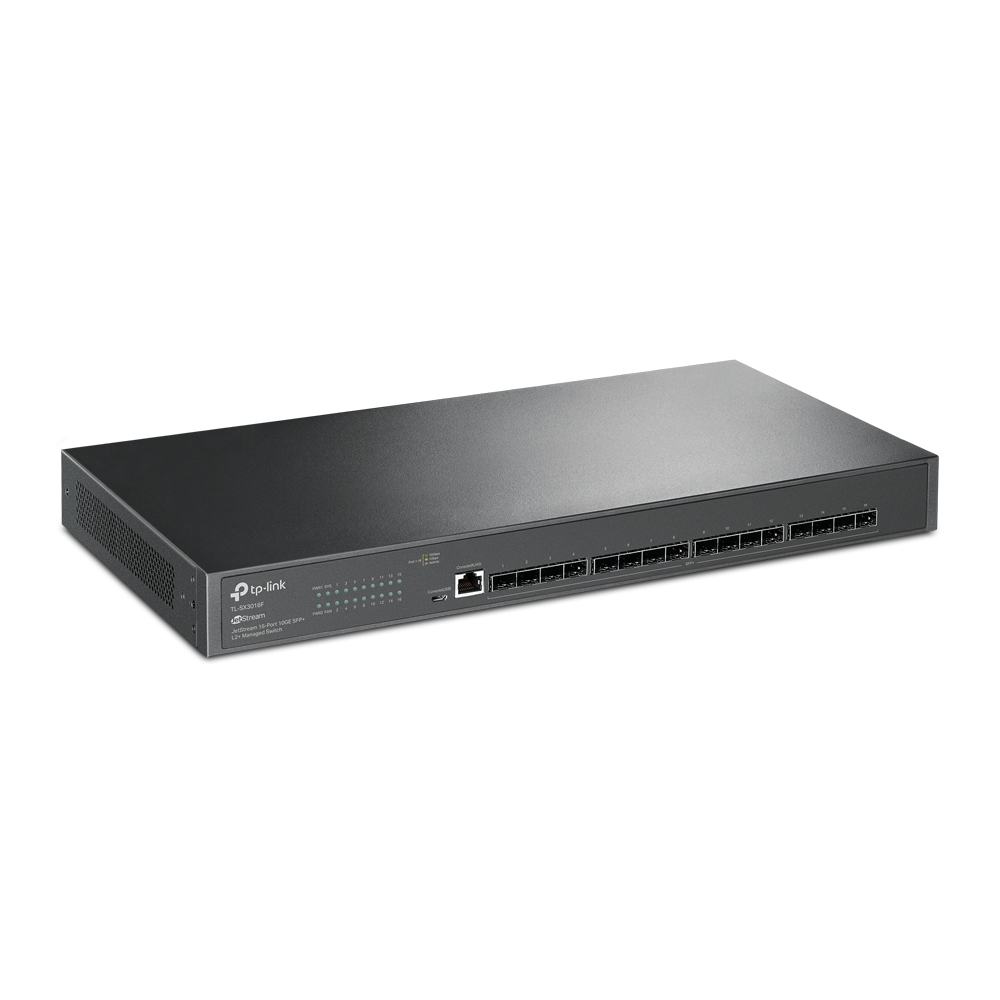

16-портов 10GE SFP+ L2+ управляем комутатор TP-Link JetStream TL-SX3016F

Филтър Swich скорост: 10 Gb SFP+ modules; 10G (100Mbps/1G/2.5G/5G/10G) RJ45; Switching capacity: 320 Gbps

Интерфейс: 16x SFP+ ports; 1 Console Port; 1x Micro-USB Console Port

Тип: Управляем; JetStream

Съвместимост с мрежови стандарти: IEEE 802.1w; IEEE 802.1x; IEEE 802.1p; IEEE 802.3x Flow Control; IEEE 802.1d; IEEE 802.3ad

Експлоатационни качества: MAC Address Table – 32K; Loopback Detection (LBD); Jumbo Frame 9KB; Packet Forwarding Rate – 238.08 Mpps; IEEE802.3x Flow Control; Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)

IPv6: Internet Control Message Protocol (ICMP) version 6; IPv6 Dual IPv4/IPv6; IPv6 neighbor discovery (ND); Multicast Listener Discovery (MLD) Snooping; Path maximum transmission unit (MTU) discovery; Static IPv6 Routing; TCPv6/UDPv6

IPv6 приложения: Telnet(v6); IPv6 TFTP; IPv6 SSL; IPv6 SSH; IPv6 SNMP; IPv6 Interface*; IPv6 ACL*; Ping6; Http/Https; DHCPv6 Client; Tracert6

Сигурност: Static/Dynamic Port Security; Secure web management through HTTPS with SSLv3/TLS1.0; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; Port isolation; IPv4 Source Guard; IP/Port/MAC based access control; IP-MAC-Port Binding; DHCP Snooping; ARP Inspection; AAA; IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN; DoS Defence; Broadcast/Multicast/Unknown-unicast Storm Control

L2 комутационни функции: Port Mirroring; MVR; MLD v1/v2 Snooping; Multicast Filtering: 256 profiles and 16 entries per profile; Link Aggregation; IGMP Snooping V1/V2/V3; IGMP Snooping Querier; IGMP Authentication; CPU Mirroring; Cable Diagnostics; 802.3x Flow Control; Static Link Aggregation; 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group); Static Routing

L3 Превключващи функции: Static ARP; Proxy ARP; DHCP Server/Relay; Gratuitous ARP; DHCP L2 Relay; 16 IPv4/IPv6 Interfaces; Static Routing

Софтуерни функции: Omada Software Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Cloud-Based Controlle; Omada App; IEEE 802.3x: Flow Control; IEEE 802.3ad: Link Aggregation; IEEE 802.1X: Port-Based Authentication with Guest VLAN Support; Password Recovery*; CPU Monitoring; Port Mirroring

Управление/Management: SNMP Trap/Inform; SDM Template; RMON (1,2,3,9 groups); EEE; Dual Image, Dual Configuration; DHCP/BOOTP Client; SNTP; DHCP AutoInstall; Command Line Interface (CLI) through telnet; 802.1ab LLDP/LLDP-MED; System Log; Web-based GUI; Web UI

Качество на обслужване: Action for Flows; Bandwidth Control; Cable Diagnostics; Queue scheduling: SP, WRR, SP+WRR; Rate Limit; Smoother Performance; Support 8 priority queues; Support 802.1p CoS/DSCP priority

VLAN: Selective QinQ; Private VLAN; 802.1q Tagged VLAN; GARP/GVRP; MAC VLAN: 30 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Max. 4K VLAN Groups; VLAN Group; VLAN VPN (QinQ); Voice VLAN

Марка: TP-LINK

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Цвят: Черен

В наличност: LIMITED STOCK

ХИТ: N

Мрежови характеристики: Switching Capacity: 320 Gbps

Ethernet портове: 320 Gbps

VPN: VLAN VPN (QinQ)

Работна температура: 0℃~45℃ (32–113 ℉)

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Работна влажност: 10%~90% без кондензация

Влажност на съхранение: 5%~90% без кондензация

Охлаждане: Активно

Сертификати: CE, FCC, RoHS

Системни изисквания: Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8/8.1, MAC® OS, NetWare®, UNIX® or Linux.

Тегло, кг.: 4.5 кг

Размери ширина: 440 mm

Размери дълбочина: 220 mm

Размери височина: 44 mm

Вид на монтаж: Rackmount

Приложение: Rackmount

16-портов 10GE SFP+ L2+ управляем комутатор TP-Link JetStream TL-SX3016F

Производител: TP-LINK

Гаранция: 60 месеца
