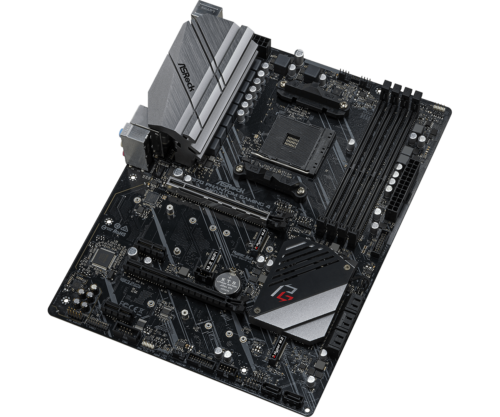

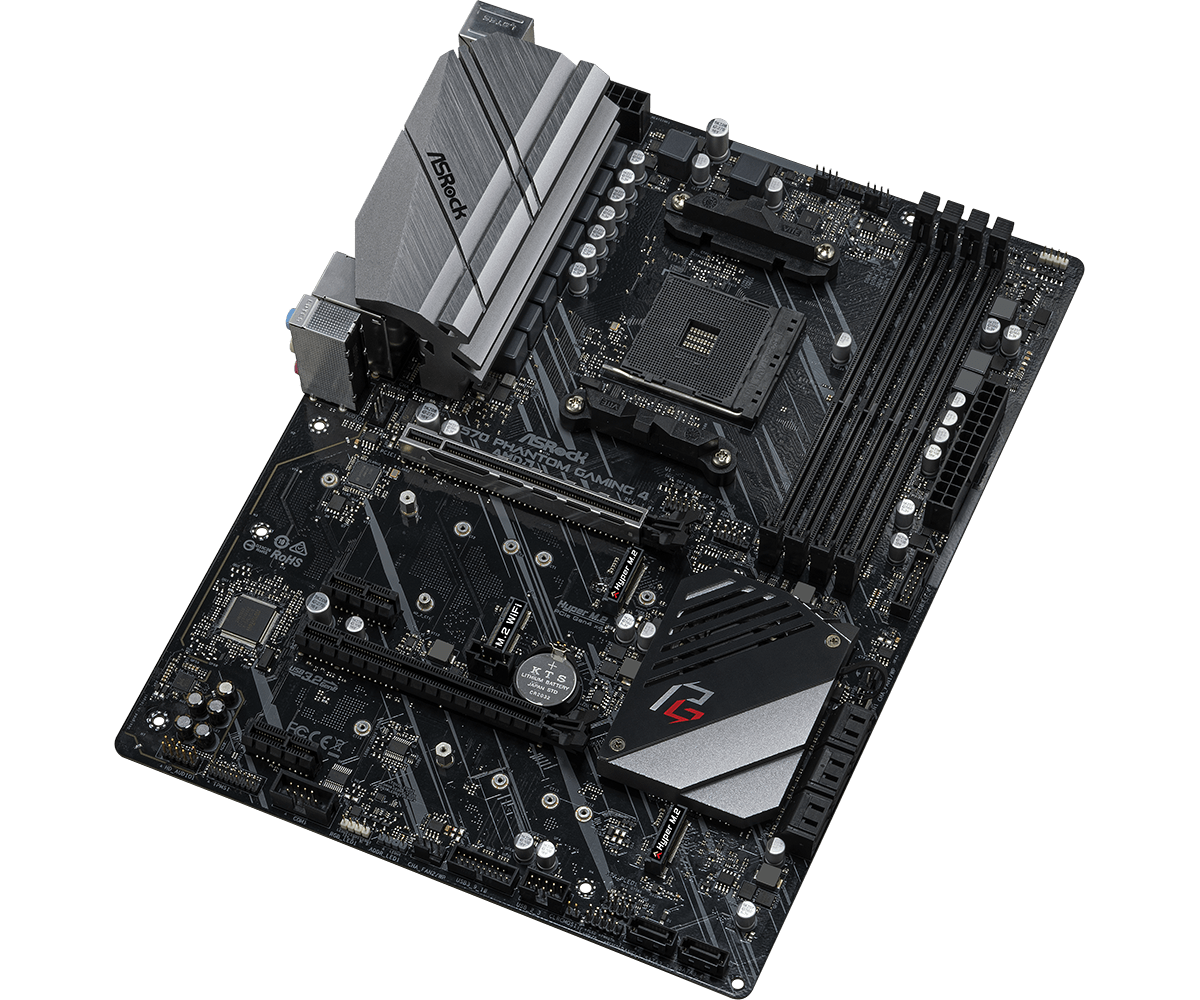

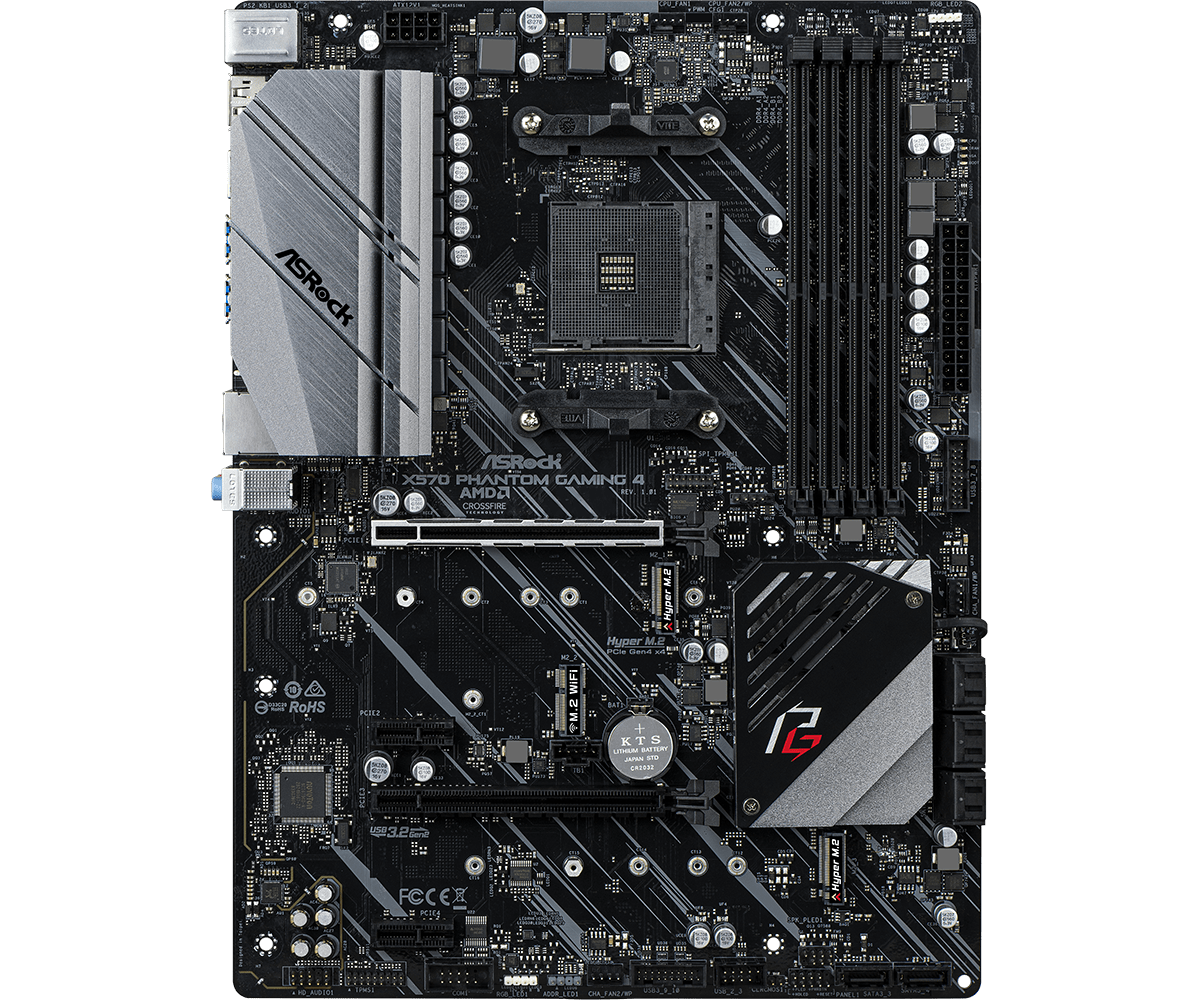

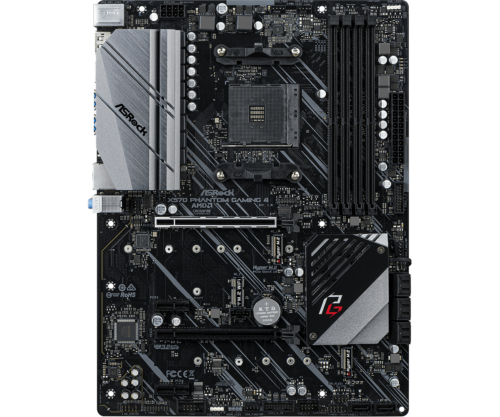

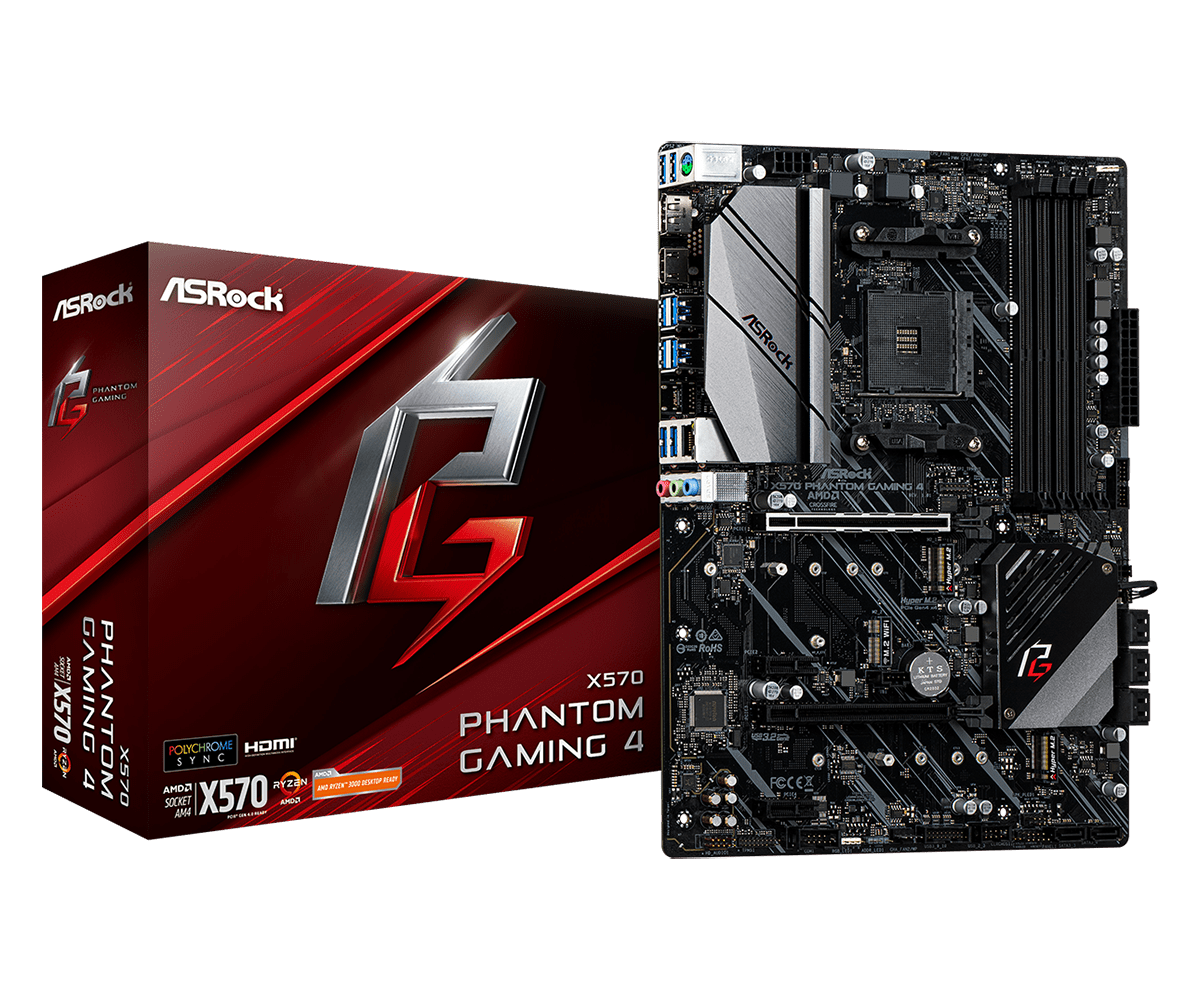

ASROCK X570 PHANTOM GAMING 4

CPU’s supported: – Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors*; – Digi Power design; – 10 Power Phase design

Тип памет: Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 /

Чипсет: – AMD X570

Графика: – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; – DirectX 12, Pixel Shader 5.0; – Shared memory default 2GB. Max Shared memory supports up to 16GB.**; – Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers; – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz; – Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz; – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required); – Supports HDR (High Dynamic Range) with HDMI 2.0; – Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports; – Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports; – Supports Microsoft® Play

Слотове за разширение: AMD Ryzen series CPUs (Vermeer, Matisse); – 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*; AMD Ryzen series CPUs (Renoir, Pinnacle Ridge); – 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1))*; AMD Ryzen series CPUs (Picasso); – 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*; AMD X570 Chipset; – 1 x PCI Express 4.0 x16 Slot (x4 (PCIE3))*; – 2 x PCI Express 4.0 x1 Slots; – Supports AMD Quad CrossFireX™ and CrossFireX™; – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Съхранение: – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*; – 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*

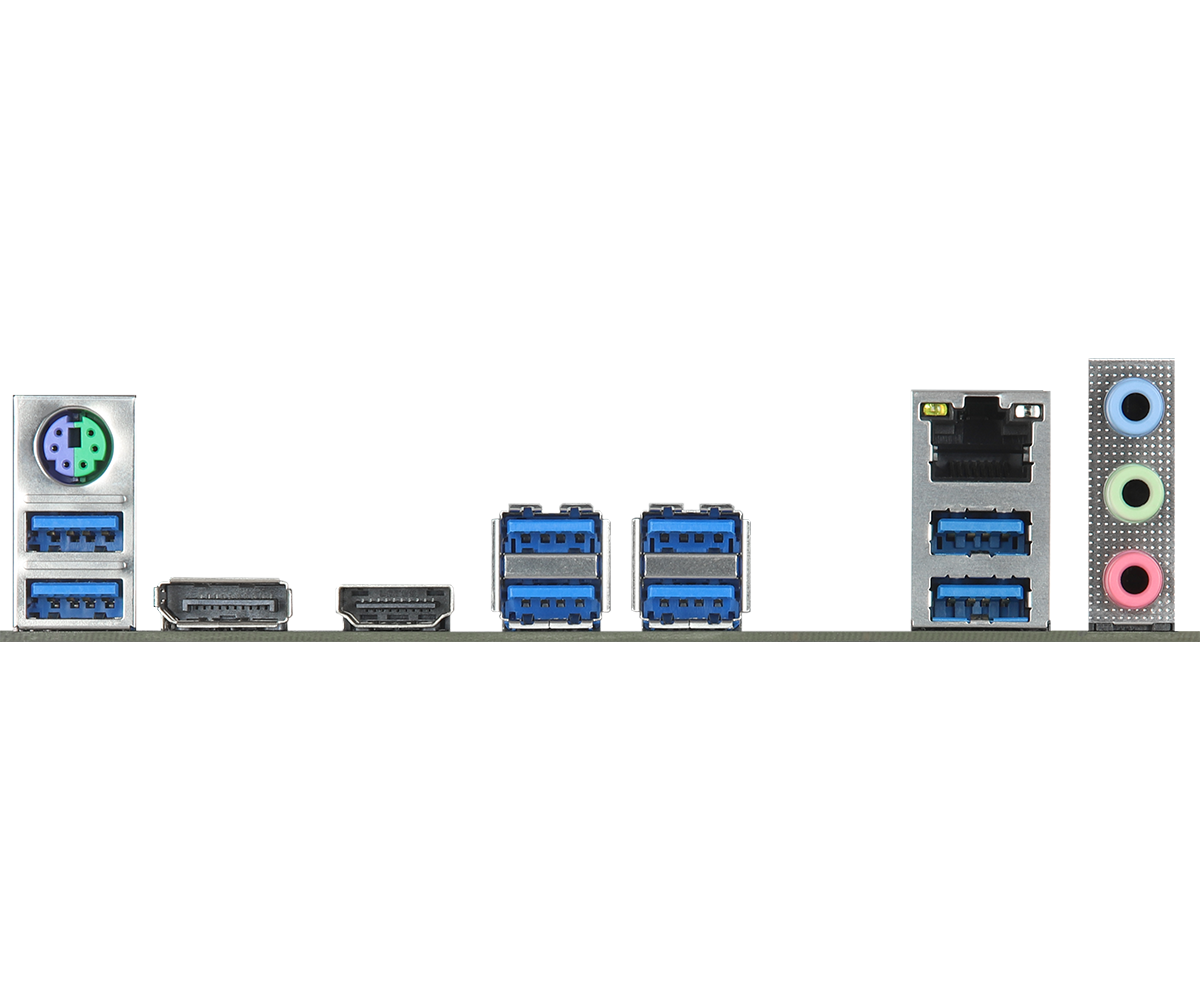

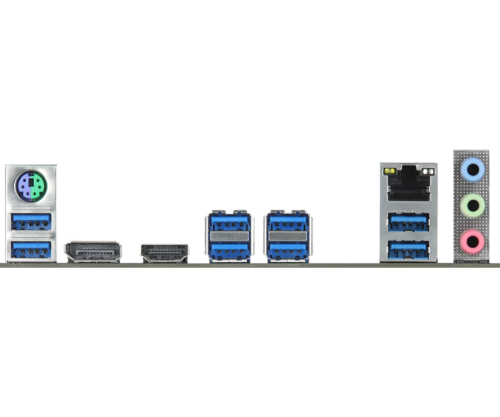

I/O: – 3 x Antenna Ports (on I/O Panel Shield); – 1 x PS/2 Mouse/Keyboard Port; – 1 x HDMI Port; – 1 x DisplayPort 1.2; – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection); – 6 x USB 3.2 Gen1 Ports (Supports ESD Protection); – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); – HD Audio Jacks: Line in / Front Speaker / Microphone

Конектори: – 1 x COM Port Header; – 1 x Power LED and Speaker Header; – 2 x RGB LED Headers*; – 1 x Addressable LED Header**; – 1 x CPU Fan Connector (4-pin)***; – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****; – 1 x 24 pin ATX Power Connector; – 1 x 8 pin 12V Power Connector; – 1 x Front Panel Audio Connector; – 1 x AMD LED Fan USB Header; – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only); – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection); – 1 x SPI TPM Header******

Аудио: – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); – Premium Blu-ray Audio support; – Supports Surge Protection; – ELNA Audio Caps; – PCB Isolate Shielding; – Individual PCB Layers for R/L Audio Channel

LAN: – Gigabit LAN 10/100/1000 Mb/s; – Giga PHY Intel® I211AT; – Supports Wake-On-LAN; – Supports Lightning/ESD Protection; – Supports Energy Efficient Ethernet 802.3az; – Supports PXE

BIOS: – 256Mb AMI UEFI Legal BIOS with GUI support; – Supports „Plug and Play“; – ACPI 5.1 compliance wake up events; – Supports jumperfree; – SMBIOS 2.3 support; – CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment

Форма фактор: – ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm; – Solid Capacitor design; – 2oz Copper PCB

операционна система: – Microsoft® Windows® 10 64-bit

Производител: ASROCK

Гаранция: 36 месеца
