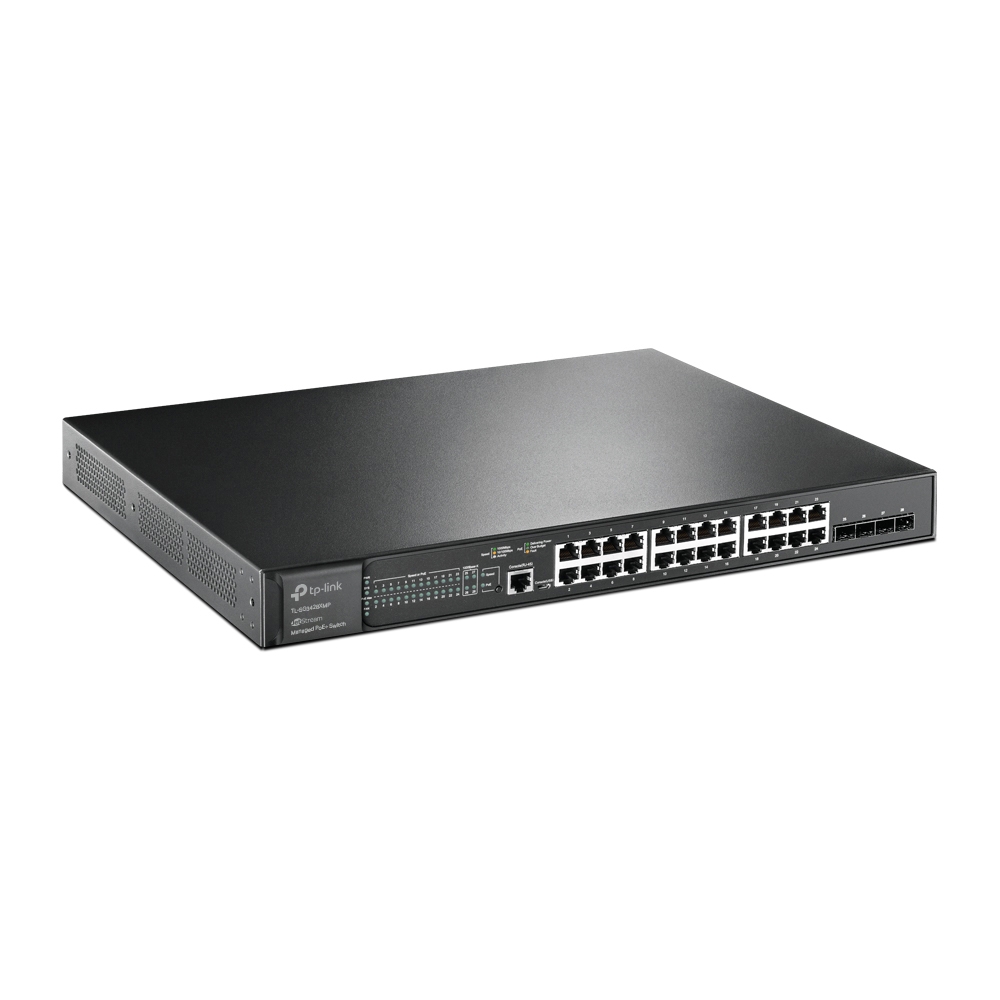

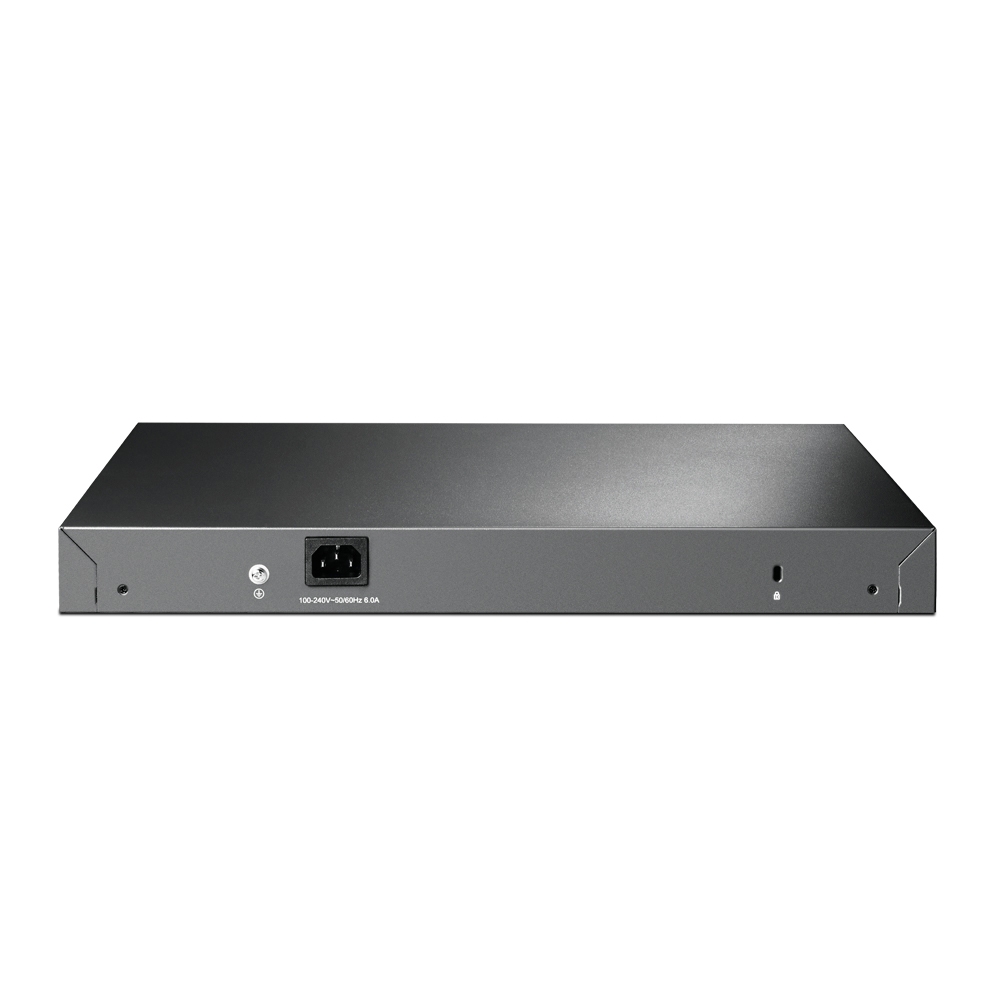

24-портов гигабитен PoE+ управляем комутатор TP-Link JetStream TL-SG3428XMP с 4 SFP+ порта

Филтър Swich скорост: Switching capacity: 128 Gbps; 10Gbps SFP+ ports; 10/100/1000 Mbps; 10/100/1000Mbps RJ45 Ports

Приложение: Rackmount

Интерфейс: 4 x 10G SFP+ ports; 1x Micro-USB Console Port; 24 10/100/1000Mbps RJ45 Ports; 1 Console Port

Тип: Управляем; JetStream

Съвместимост с мрежови стандарти: IEEE 802.1p; IEEE 802.3x Flow Control; Standard: 802.3at/af compliant; IEEE 802.1x

Експлоатационни качества: Switching Capacity – Up to 128Gbps; Packet Forwarding Rate – 95,2Mpps; MAC Address Table -16k; Loopback Detection (LBD); Jumbo Frame 9KB; IEEE802.3x Flow Control

IPv6: TCPv6/UDPv6; Path maximum transmission unit (MTU) discovery; Static IPv6 Routing; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); Internet Control Message Protocol (ICMP) version 6; IPv6 Dual IPv4/IPv6

IPv6 приложения: Tracert6; Telnet(v6); Ping6; IPv6 TFTP; IPv6 SSL; IPv6 SSH; IPv6 SNMP; IPv6 Interface*; IPv6 ACL*; Http/Https; DHCPv6 Client

Сигурност: Secure Command Line Interface (CLI) management with SSHv1/SSHv2; Port isolation; IPv6-MAC-Port Binding; IP/Port/MAC based access control; Secure web management through HTTPS with SSLv3/TLS1.0; IP-MAC-Port Binding; AAA; Web-based GUI; IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN

L2 комутационни функции: MVR; One-to-One; Port Mirroring; Proxy ARP; MLD Snooping; CPU Mirroring; TACACS+; Static Routing; IGMP Authentication; IGMP Snooping V1/V2/V3; Link Aggregation; 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group); 802.3x Flow Control

L3 Превключващи функции: Static Routing; DHCP Server/Relay; DHCP L2 Relay; ARP Proxy; Static ARP; Gratuitous ARP; 16 IPv4/IPv6 Interfaces

Софтуерни функции: Omada Software Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Cloud-Based Controlle; Omada App; MIBs; IEEE 802.3x: Flow Control; IEEE 802.3ad: Link Aggregation; IEEE 802.1X: Port-Based Authentication with Guest VLAN Support; 802.1p/DSCP QoS; IGMP Snooping function; Web-based GUI and CLI management; CPU Monitoring; Port Mirroring

Управление/Management: SNTP; SNMP Trap/Inform; SDM Template; RMON (1,2,3,9 groups); EEE; Dual Image, Dual Configuration; System Log; DHCP AutoInstall; Command Line Interface (CLI) through telnet; 802.1ab LLDP/LLDP-MED; Web UI; Password Management; SNMP v1, v2, and v3

Качество на обслужване: Voice VLAN; Support 8 priority queues; Queue scheduling: SP, WRR, SP+WRR; Cable Diagnostics

VLAN: Voice VLAN; VLAN, Private VLAN, Voice VLAN; Max. 4K VLAN Groups; MAC VLAN: 7 Entries; IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP; 802.1Q tag VLAN

Захранване: Max. power consumption: 465.8 W (110V/60Hz) ( with 384 W PD device connected); 100～240VAC, 50/60Hz

Сертификати: CE; IC; FCC

Вид на монтаж: Десктоп; Rackmount

Ново: N

Марка: TP-LINK

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Цвят: Черен

В наличност: LIMITED STOCK

Мрежови характеристики: Switching Capacity: 128 Gbps

Ethernet портове: 128Gbps

Работна температура: 0℃~45℃ (32–113 ℉)

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Работна влажност: 10%~90% без кондензация

Влажност на съхранение: 5%~90% без кондензация

Охлаждане: Активно

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Тегло, кг.: 2.8 кг

Размери ширина: 440 mm

Размери дълбочина: 315

Размери височина: 44 mm

EAN: 6935364030773

24-портов гигабитен PoE+ управляем комутатор TP-Link JetStream TL-SG3428XMP с 4 SFP+ порта

Производител: TP-LINK

Гаранция: 60 месеца
