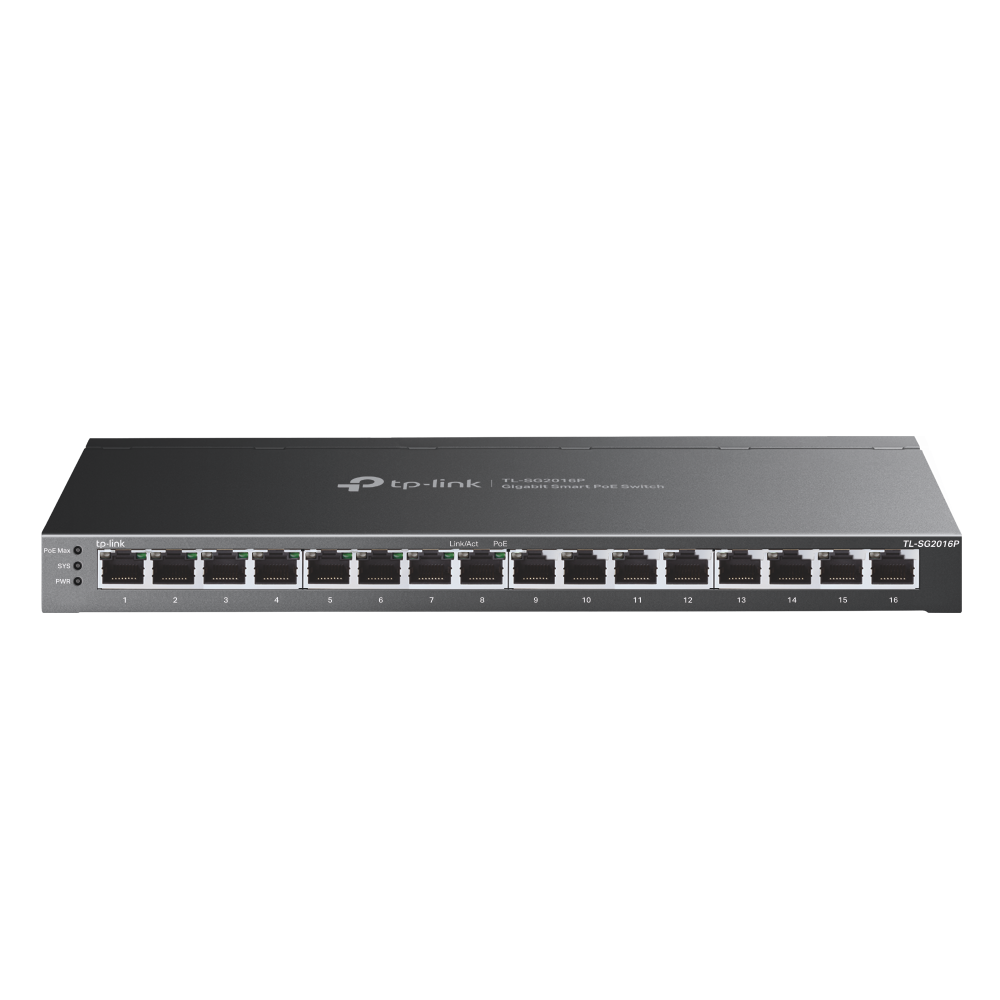

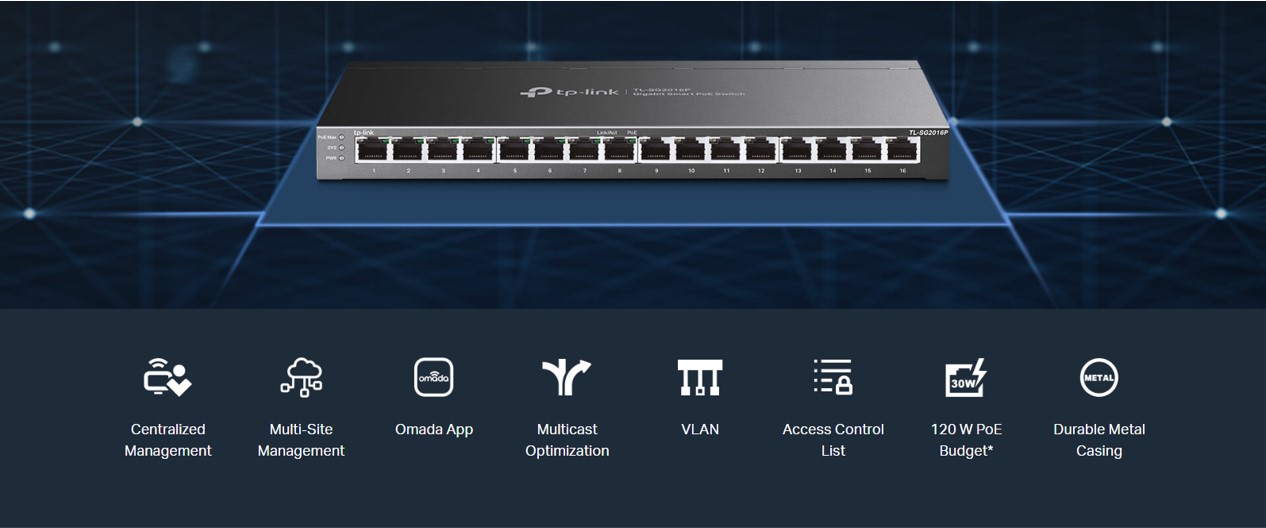

16-портов комутатор TP-Link TL-SG2016P JetStream Gigabit Smart с 8 PoE+ порта

Филтър Swich скорост: 10/100/1000 Mbps; 10/100/1000Mbps RJ45 Ports

Тип: Smart; JetStream

Съвместимост с мрежови стандарти: IEEE 802.3i; IEEE 802.3u; IEEE 802.3x; IEEE 802.1p; IEEE 802.1x; IEEE 802.3 at; 802.3 af; IEEE 802.1q; IEEE 802.1s; IEEE 802.1w; IEEE 802.1d; IEEE 802.3ad; IEEE 802.3ab

Мрежови характеристики: MDI/MDI-X switch; Auto-Negotiation

Предаване на данни: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Експлоатационни качества: Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP); Packet Buffer Memory – 4.1Mbit; MAC Address Table – 8k; Bandwidth/Backplane – 16Gbps; Jumbo Frame 9KB

IPv6: TCPv6/UDPv6; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; Internet Control Message Protocol (ICMP) version 6

IPv6 приложения: Tracert6; IPv6 TFTP; IPv6 SSL; IPv6 SSH; Telnet(v6); Ping6; IPv6 SNMP; Http/Https; DHCPv6 Client

Сигурност: Secure web management through HTTPS with SSLv3/TLS1.0; Access Control List; IP Source Guard; IP-MAC-Port Binding; IP/Port/MAC based access control; IPv6 Source Guard; IPv6-MAC-Port Binding; Port isolation; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; AAA; Static/Dynamic/Permanent Port Security; DoS Defence; Broadcast/Multicast/Unknown-unicast Storm Control

L2 комутационни функции: Static Link Aggregation; DHCP L2 Relay; Device Link Detect Protocol (DLDP); Port Mirroring; Link Aggregation; One-to-One; 802.1ab LLDP/ LLDP-MED; 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group); CPU Mirroring; DHCP Relay; TC/Root Protect

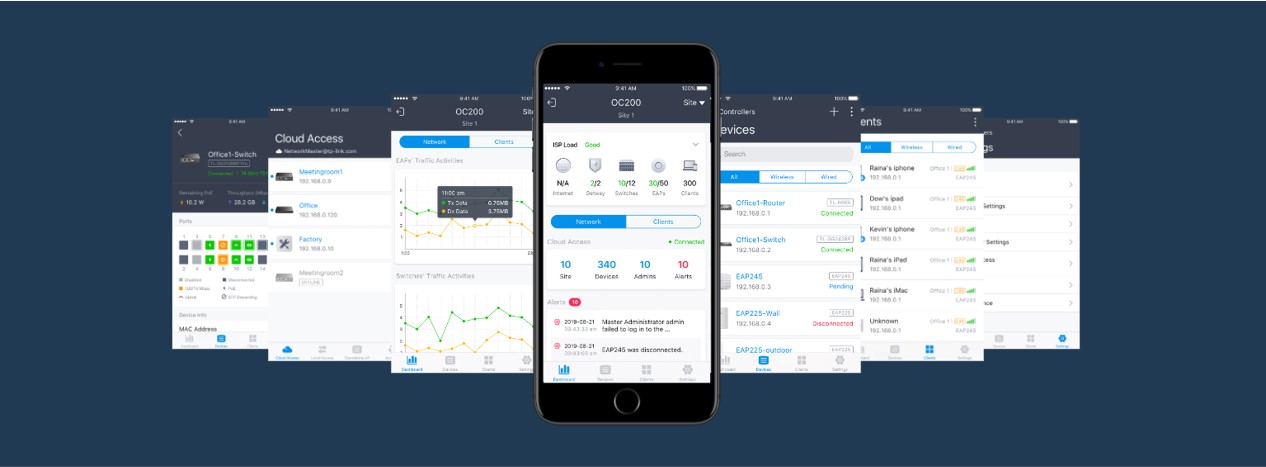

Софтуерни функции: Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Cloud-Based Controlle; Omada App; IEEE 802.3ad: Link Aggregation; IEEE 802.1X: Port-Based Authentication with Guest VLAN Support; DHCP Relay*; Omada Software Controller; CPU Monitoring; Port Mirroring

Управление/Management: SNMP Trap/Inform; SDM Template; RMON (1,2,3,9 groups); EEE; Dual Image, Dual Configuration; DHCP/BOOTP Client; Command Line Interface (CLI) through telnet; SNTP; Web UI; SNMP v1, v2, and v3

Качество на обслужване: Queue Weight Config; Smoother Performance; Support 8 priority queues; Priority Schedule Mode; Bandwidth Control; Cable Diagnostics; Storm Control; Support 802.1p CoS/DSCP priority

VLAN: Voice VLAN; Max. 4K VLAN Groups; IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP; VLAN Group; 802.1Q tag VLAN

Сертификати: CE; FCC; RoHS

Вид на монтаж: Десктоп; Rackmount

Марка: TP-LINK

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Цвят: Черен

В наличност: LIMITED STOCK

ХИТ: N

Интерфейс: 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)

Комутационен протокол: Ethernet

Ethernet портове: Gigabit

Работна температура: 0℃~40℃ (32℉~104℉)

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Работна влажност: 10%~90% без кондензация

Влажност на съхранение: 5%~90% без кондензация

Захранване: Външен захранващ адаптер 53.5 VDC/ 1.3 A

Охлаждане: Пасивно

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Тегло, кг.: ~1.5 кг

16-портов комутатор TP-Link TL-SG2016P JetStream Gigabit Smart с 8 PoE+ порта

Производител: TP-LINK

Гаранция: 60 месеца
