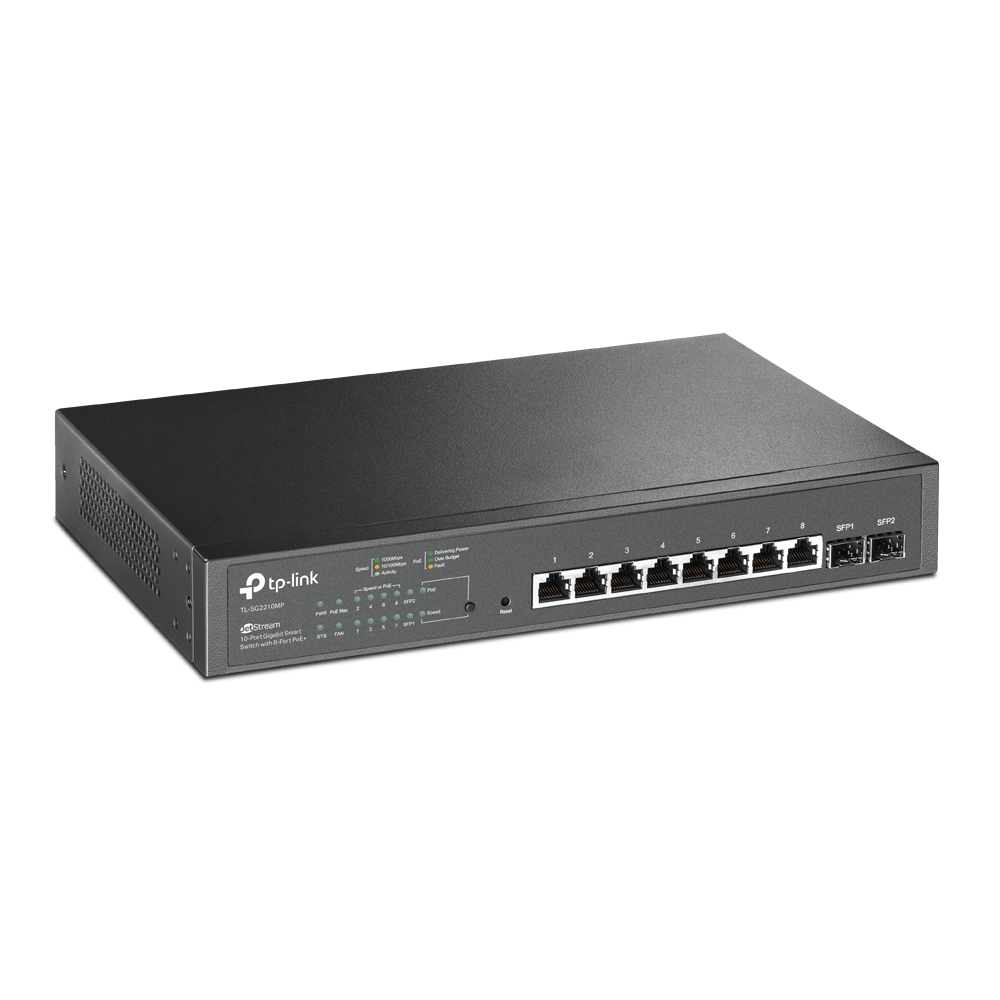

10-портов JetStream Gigabit Smart комутатор TP-Link TL-SG2210MP с 8 PoE+ порта

Филтър Swich скорост: Switching Capacity: 20 Gbps; SFP; 10/100/1000 Mbps; 10/100/1000Mbps RJ45 Ports

Тип: Smart; JetStream

Съвместимост с мрежови стандарти: IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1x; IEEE 802.1p; IEEE 802.3x; IEEE 802.3u; IEEE 802.3i; IEEE 802.3x Flow Control; IEEE 802.3az; IEEE 802.3 at; 802.3 af; IEEE 802.1d; IEEE 802.3ad; IEEE802.3z; IEEE 802.3ab

Мрежови характеристики: Auto-Negotiation; Switching capacity 20 Gbps; MDI/MDI-X switch

Предаване на данни: 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m); 100BASE-FX: MMF, SMF; 1000BASE-X: MMF, SMF; 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

Експлоатационни качества: Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP); Packet Buffer Memory – 4.1Mbit; Loopback Detection (LBD); Jumbo Frame 9KB; IEEE802.3x Flow Control; MAC Address Table – 8k; Packet Forwarding Rate – 14.9Mpps

IPv6: Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); IPv6 Dual IPv4/IPv6; Internet Control Message Protocol (ICMP) version 6; Path maximum transmission unit (MTU) discovery; TCPv6/UDPv6

IPv6 приложения: IPv6 SNMP; IPv6 SSH; IPv6 SSL; IPv6 TFTP; Ping6; Telnet(v6); Http/Https; DHCPv6 Client; Tracert6

Сигурност: Static/Dynamic/Permanent Port Security; Secure web management through HTTPS with SSLv3/TLS1.0; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; Port isolation; IPv6-MAC-Port Binding; IPv6 Source Guard; IP/Port/MAC based access control; IP-MAC-Port Binding; IP Source Guard; AAA; IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN; DoS Defence; Port Security; Broadcast/Multicast/Unknown-unicast Storm Control

L2 комутационни функции: Port Mirroring; One-to-One; Link Aggregation; DHCP VLAN Relay; DHCP Relay; DHCP L2 Relay; Device Link Detect Protocol (DLDP); CPU Mirroring; 802.1ab LLDP/ LLDP-MED; Static Link Aggregation; IGMP Snooping V1/V2/V3; 802.3x Flow Control

Софтуерни функции: CPU Monitoring; Omada Cloud-Based Controlle; Omada Hardware Controller (OC200); Omada Hardware Controller (OC300); Omada Software Controller; Web-based GUI and CLI management; Omada App; DHCP Relay*; IEEE 802.3ad: Link Aggregation; Port Mirroring

Управление/Management: SNTP; SNMP Trap/Inform; SDM Template; RMON (1,2,3,9 groups); EEE; Dual Image, Dual Configuration; Command Line Interface (CLI) through telnet; System Log; Web UI; SNMP v1, v2, and v3

Качество на обслужване: Storm Control; Smoother Performance; Queue Weight Config; Priority Schedule Mode; Cable Diagnostics; Bandwidth Control; Support 8 priority queues; Support 802.1p CoS/DSCP priority

VLAN: IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP; Max. 4K VLAN Groups; VLAN Group; 802.1Q tag VLAN; Voice VLAN

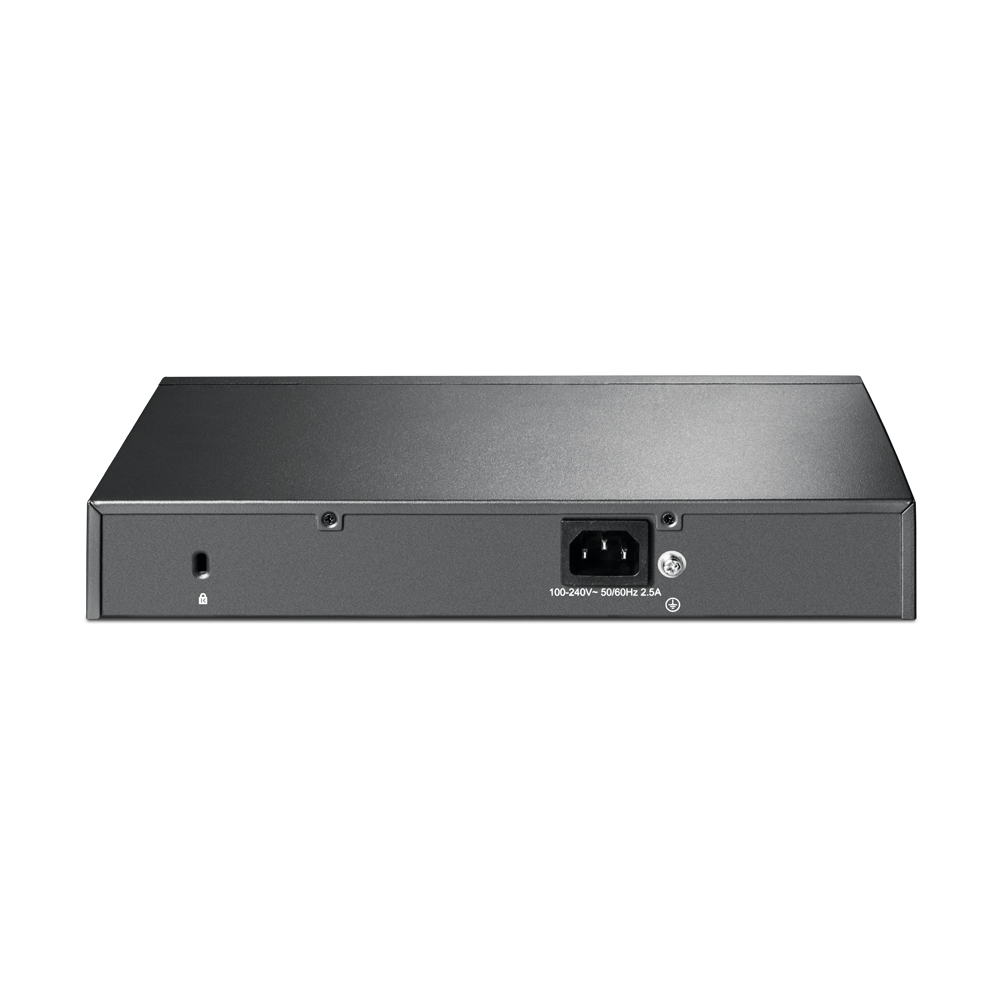

Захранване: 173.9 W (110 V / 60 Hz with 150 W PD connected); 100～240VAC, 50/60Hz

Сертификати: CE; FCC; RoHS

Вид на монтаж: 13-inch rack-mountable steel case; Десктоп; 1U 19-inch rack-mountable steel case

Марка: TP-LINK

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Цвят: Черен

В наличност: LIMITED STOCK

Интерфейс: 8x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+

Комутационен протокол: Ethernet

Ethernet портове: 20Gbps

Работна температура: 0℃~40℃ (32℉~104℉)

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Работна влажност: 10%~90% без кондензация

Влажност на съхранение: 5%~90% без кондензация

Охлаждане: Активно

Тегло, кг.: ~1.5 кг

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Размери ширина: 294 mm

Размери дълбочина: 180 mm

Размери височина: 44 mm

EAN: 6935364030674

10-портов JetStream Gigabit Smart комутатор TP-Link TL-SG2210MP с 8 PoE+ порта

Производител: TP-LINK

Гаранция: 60 месеца
