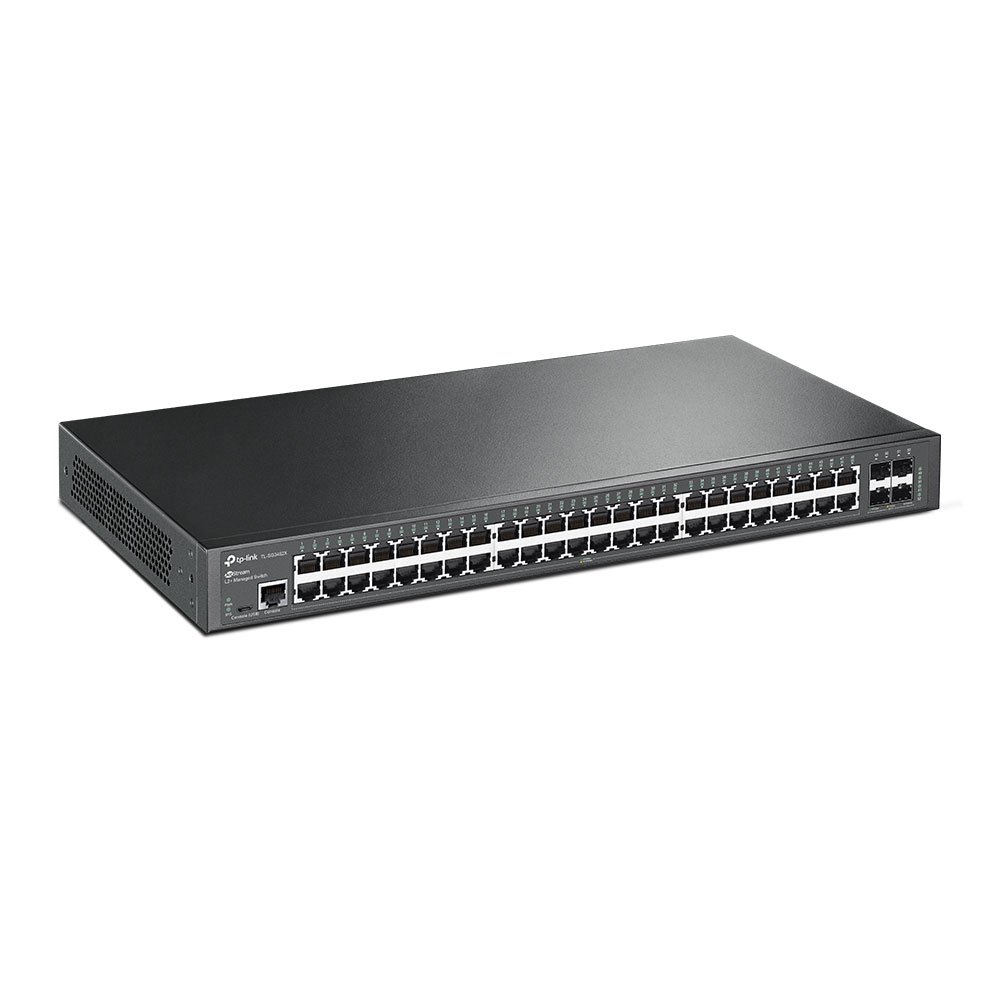

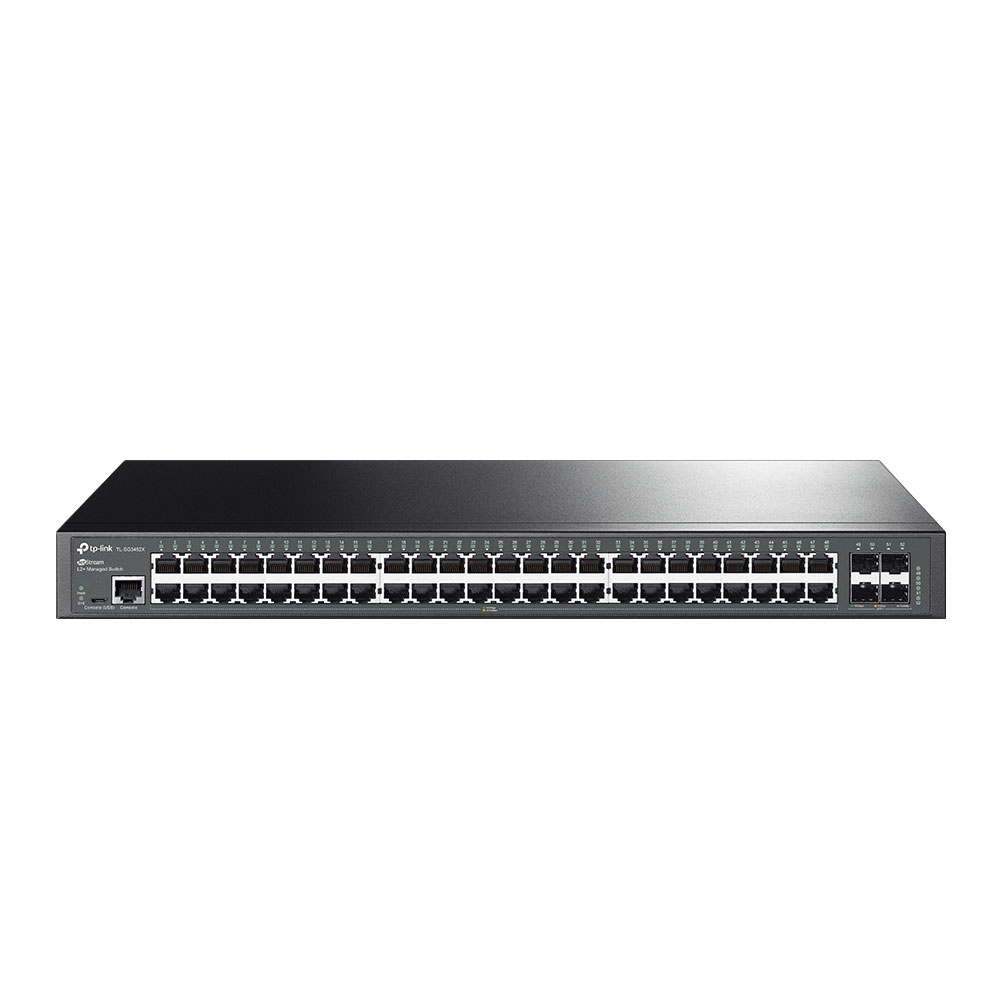

Комутатор TP-Link TL-SG3452X JetStream управляем с 48-Gigabit порта и 4SFP+ порта

Филтър Swich скорост: Switching Capacity: 176 Gbps; 10G (100Mbps/1G/2.5G/5G/10G) RJ45; 10/100/1000 Mbps; 10/100/1000Mbps RJ45 Ports

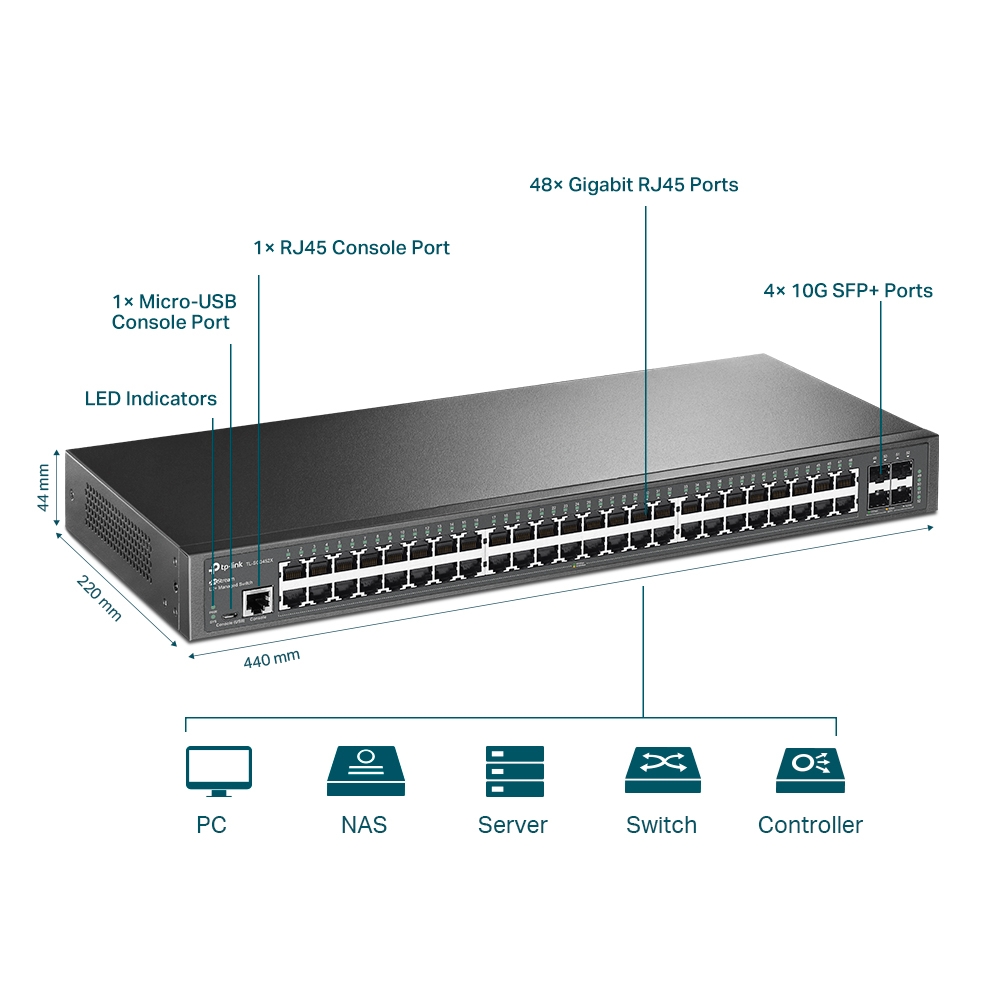

Интерфейс: 4 SFP+ Ports; 1x Micro-USB Console Port; 1 Console Port; 48 10/100/1000Mbps RJ45 Ports

Тип: Управляем; JetStream

Съвместимост с мрежови стандарти: IEEE 802.3ad; IEEE 802.1x; IEEE 802.1w; IEEE 802.3x Flow Control; IEEE 802.3x; IEEE 802.1d; IEEE 802.1s; IEEE802.3z; IEEE 802.3ab

Експлоатационни качества: Packet Buffer Memory: 12Mbits; MAC Address Table -16k; Loopback Detection (LBD); Jumbo Frame 9KB; IEEE802.3x Flow Control; Packet Forwarding Rate – 130.95; Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)

IPv6: Path maximum transmission unit (MTU) discovery; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); IPv6 Dual IPv4/IPv6; Internet Control Message Protocol (ICMP) version 6; Static IPv6 Routing; TCPv6/UDPv6

IPv6 приложения: IPv6 TFTP; IPv6 SSL; IPv6 SSH; IPv6 SNMP; IPv6 Interface*; IPv6 ACL*; Ping6; Http/Https; DHCPv6 Client; Telnet(v6); Tracert6

Сигурност: Port isolation; IPv6-MAC-Port Binding; IP/Port/MAC based access control; IP-MAC-Port Binding; DHCP Snooping; ARP Inspection; Access Control List; AAA; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; Static/Dynamic Port Security; DoS Defence

L2 комутационни функции: One-to-One; MVR; Multicast Filtering: 256 profiles and 16 entries per profile; MLD v1/v2 Snooping; MLD Snooping; Many-to-One; IGMP Authentication; DHCP Relay; DHCP L2 Relay; CPU Mirroring; Static Link Aggregation; IGMP Snooping V1/V2/V3; 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group); 802.3x Flow Control

L3 Превключващи функции: Static ARP; Proxy ARP; Gratuitous ARP; DHCP L2 Relay; 16 IPv4/IPv6 Interfaces; Static Routing; DHCP Server/Relay

Софтуерни функции: Omada Hardware Controller (OC300); Omada Software Controller; Omada Cloud-Based Controlle; IEEE 802.3ad: Link Aggregation; IEEE 802.3x: Flow Control; MIBs; Omada App; Omada Hardware Controller (OC200); DHCP Relay*; Zero-Touch Provisioning; CPU Monitoring; Port Mirroring

Управление/Management: SNMP Trap/Inform; SDM Template; RMON (1,2,3,9 groups); Password Recovery; EEE; Dual Image, Dual Configuration; DHCP/BOOTP Client; DHCP AutoInstall; Command Line Interface (CLI) through telnet; Cable Diagnostics; 802.1ab LLDP/LLDP-MED; SNTP; System Log; Web-based GUI; SNMP v1, v2, and v3

Качество на обслужване: Action for Flows; Bandwidth Control; Smoother Performance; Support 8 priority queues; Support Port-based 802.1p/DSCP priority; Queue scheduling: SP, WRR, SP+WRR; Port/Flow- based Rate Limiting

VLAN: Private VLAN; 802.1q Tagged VLAN; GVRP; MAC VLAN: 30 Entries; Max. 4K VLAN Groups; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; VLAN Group; VLAN VPN (QinQ); Voice VLAN

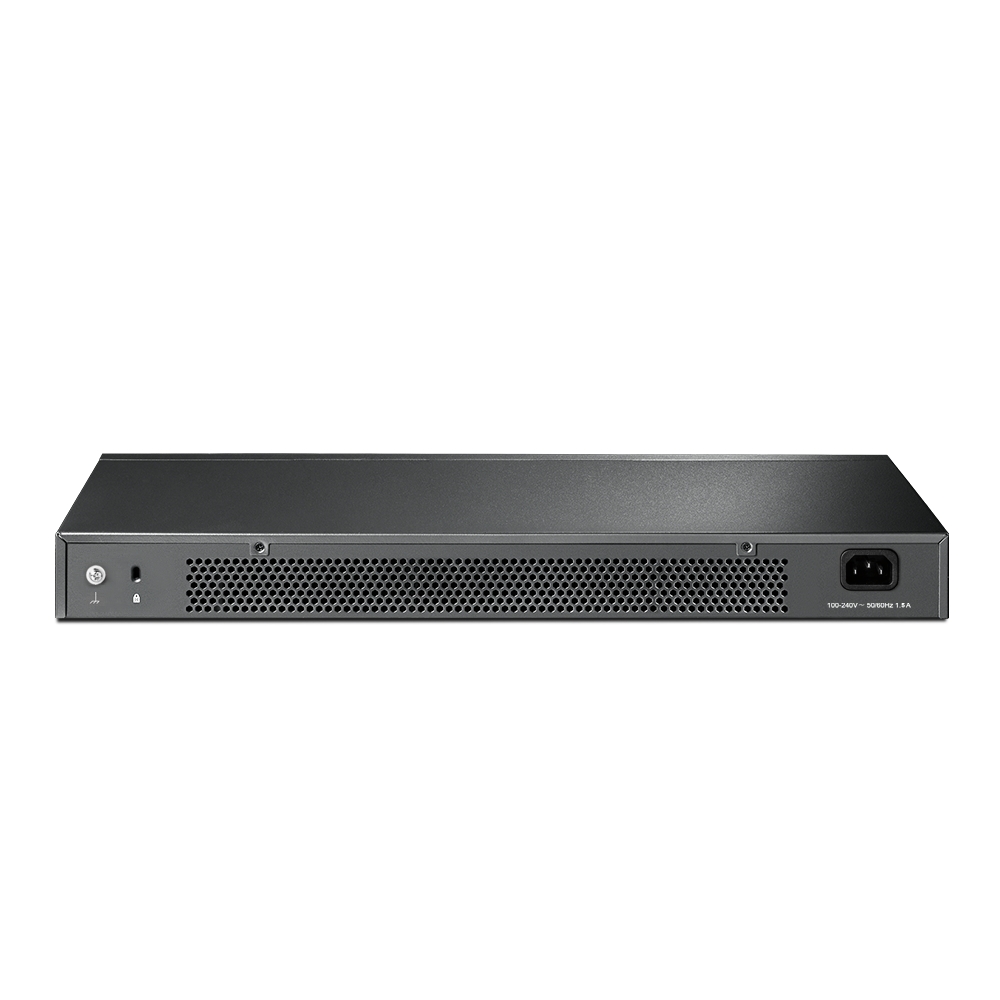

Захранване: Max. Power consumption 32.8W; 100～240VAC, 50/60Hz

Марка: TP-LINK

Критерии за валидност гаранционна карта: Warranty card

Цвят: Черен

В наличност: LIMITED STOCK

Мрежови характеристики: Switching capacity: 176 Gbps

Метод на комутация: Store and Forward

Работна температура: 0℃~40℃ (32℉~104℉)

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Работна влажност: 10%~90% без кондензация

Влажност на съхранение: 5%~90% без кондензация

Охлаждане: Пасивно

Системни изисквания: Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8/8.1, MAC® OS, NetWare®, UNIX® or Linux.

Вид на монтаж: Rackmount

Приложение: Rackmount

Комутатор TP-Link TL-SG3452X JetStream управляем с 48-Gigabit порта и 4SFP+ порта

Производител: TP-LINK

Гаранция: 60 месеца
