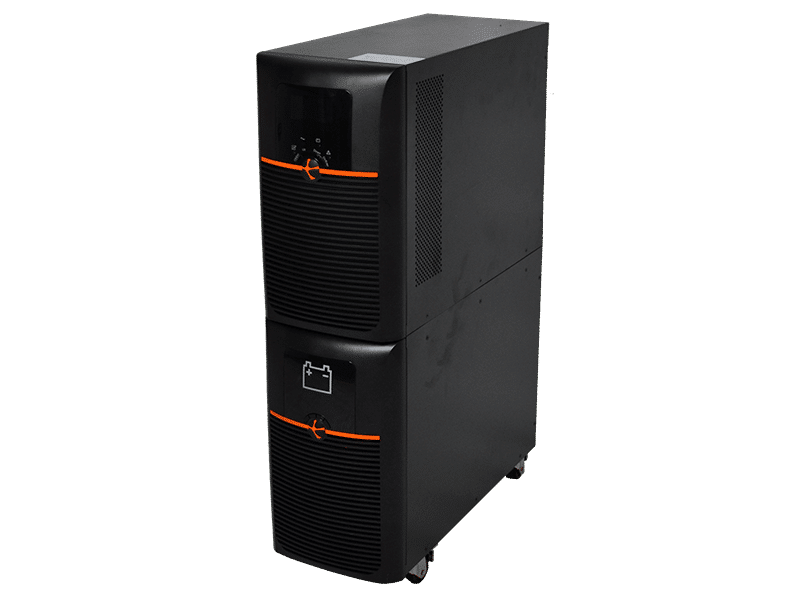

TUNCMATIK PWRUP ONE 10KVA OLIN

производител: TUNCMATIK

Капацитет: 10000 VA / 10000 W

Вход: Nominal Voltage: 208 / 220 / 230 / 240 VAC;Frequency Range: At 50Hz system 46Hz ~ 54 Hz, At 60Hz system 56Hz ~ 64 Hz;Phase: Single phase with ground;Power Factor: ≥ 0.99 (@ 100% load)

Изход: Output Voltage: 208 / 220 / 230 / 240 VAC;Power Factor (PF): 1;AC Voltage Regulation: ±1%;Frequency Range:;Synchronized Mode: At 50Hz system 46Hz ~ 54 Hz, At 60Hz system 56Hz ~ 64 Hz;Battery Mode: 50 Hz ±0.1 Hz veya 60 Hz ±0.1 Hz;Overload:;AC Mode: At 100-110% load 60min, At 110 – 125% load 10min, at 125 – 150% load 1min, at >150% load immediately;Battery Mode: At 100 – 110% load 3min, at 110 – 130% load 30sec, at >130% load immediately

Батерия: Battery Type: 12V 9AH;Numbers of Battery: 20;Recharge Time: 9 hours to recover 90% capacity;Charging Current: 1 A ±%10 (Max.);Charging Voltage: 273VDC ±%1

Заобикаляща среда: Operating Temperature: 0 – 40°C;Humidity: <%95 (non condencing);Noise Level: <55dBA (@ 1 meter)

Тегло: 79 kg

Размери: 190 x 439 x 635 mm

Производител: TUNCMATIK
