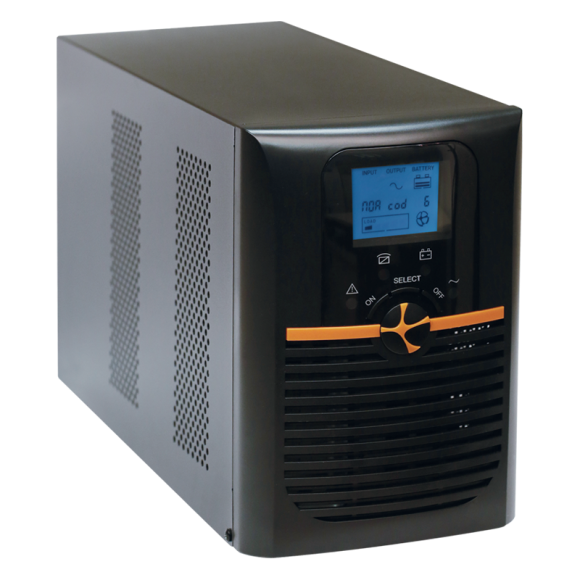

TUNCMATIK NEWTECH PRO II X9 1K
390,71 лв.
Направете запитване
производител: TUNCMATIK
Производствена част №: TSK5303
Модел: Newtech Pro II 1 kVA
Капацитет: 1 kVA
Вид/модел: On-Line
Вход: Nominal voltage:200/208/220/230 / 240VAC; Voltage range Low voltage transfer:100% -80% load 160 VAC ± 5%, 80% -70% load 140 VAC ± 5%, 70-60% load 120 VAC ± 5%, 60% -0% load 110 VAC ± 5%, (< 35 [deg.] C); Voltage range Low voltage correction:100% -80% load 175 VAC ± 5%, 80% -70% load 155 VAC ± 5%, 70-60% load 135 VAC ± 5%, 60% -0% load 125 VAC ± 5%, (< 35 [deg.] C); Voltage range High voltage transfer:300 VAC ± 5%; Voltage range High voltage correction:290 VAC ± 5%; Frequency range:40 Hz to 70 Hz; Power factor:At 100% load 0.990 (Nominal input voltage); Bypass voltage range:Bypass high voltage point 200/208/220/230/240 VAC output models; Bypass voltage range:Bypass low voltage point 200/208/220/230/240 VAC output models; Phase:One phase + Soil.
Изход: Output voltage:200/208/220/230 / 240VAC; Output power factor (PF):0.9; AC voltage regulation (Battery mode):± 1%; Frequency range (Synchronous mode):47 Hz to 53 Hz or 57 Hz to 63 Hz; Frequency range (Battery mode):50 Hz or 60 Hz ± 0.1 Hz; Overload Mains Mode:105-110% by-pass after 10 minutes, 110-130% by-pass after 1 minute, 130-150% after 3 seconds by-pass; Overload Battery Mode:105-110% by-pass after 1 minute,> 110% by 3 seconds after-pass; Current peak ratio (Crest factor):3/1 max.; Harmonic distortion:≤ 3% THD (linear load)? ≤ 6% THD (non-linear load); Transfer time Network <-> Battery mode:0 ms; Transfer time inverter <-> By-pass:4 ms (typical); Waveform (Battery mode):Full sine wave.
Аларми: Battery Mode, Low Battery, Overload, Fault
Дисплей: LCD Panel:UPS status, Load level, Battery level, Input / Output voltage, Discharge counter, Error status
Батерия: Type of battery:12V9AH; Number of battery:2; Charge time:Depends on external battery capacity; Charge voltage:27.4 VDC; Charge current:1A.
Заобикаляща среда: Operating temperature:0-40 ° C; Moisture:20-90% relative humidity (non-condensing); Noise level:<50 dBA, 1 meter.
Интерфейси: Smart RS-232 or USB:Windows 98/2000/2003/XP/Vista/2008, Windows 7/8, Linux, MAC; SNMP (Optional):Power management from SNMP manager and web browser.
Размери: 293 x 144 x 209mm
Производител: TUNCMATIK
Гаранция: 24 месеца, 12 месеца за батерията
