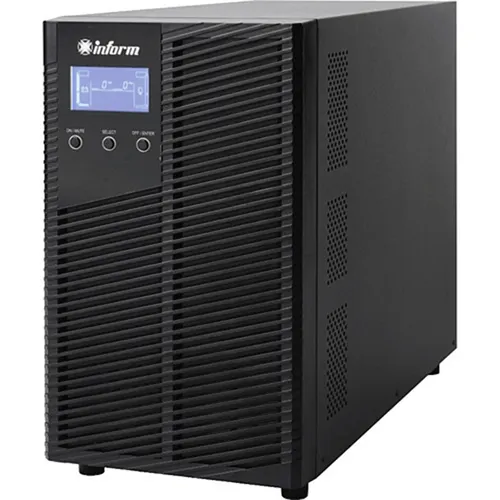

SINUS EVO SES220 2KVA ON-LINE
687,52 лв.
В наличност
производител: INFORM
Вход: Input Voltage Range 120- 300VAC;Input Frequency Range 40Hz ~ 70Hz;Phase 1PH – N – PE;Power Factor ≥ 0.99 @ nominal input voltage
Изход: Output Voltage 110/115/120/127VAC or 208/220/230/240VAC;Voltage Regulation ±2% (Online Mode), ±1% (Battery Mode);Frequency 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range);Frequency (@Battery Mode) 50 Hz ± 0.5% or 60Hz ± 0.5%;Overload 105%~110%: 10 minute ,110%~130%: 1 minute, >130%: 3 second;Crest Factor 03:01;THDv ≤ 3 % THD (linear load); ≤ 6 % THD (non-linear load);Outputs 3xIEC Type + 1xSchuko;Eco Mode Present;Frequency Converter Present
Батерия: Battery Type 12 V / Maintenance-free lead acid batteries;QTY 4 x 9Ah;Charge Time 4 hour 90% capacity (typical);Charge Current 1.0 A (max.);Automatic Battery Test Present (@ start-up, 1/per week);External Battery Optional, with battery connector;Charge Voltage 54.7 VDC ±1%;
Заобикаляща среда: Temperature 0- 40°C (20 to 25 recomended for longer battery life time);Humidity 95 % RH (non-condensing);Noise Level (1m distance) <50dBA
Размери: 397 x 145 x 220 mm
Други: EFFICIENCY Online Mode 90%, Battery Mode 88%
Производител: INFORM
