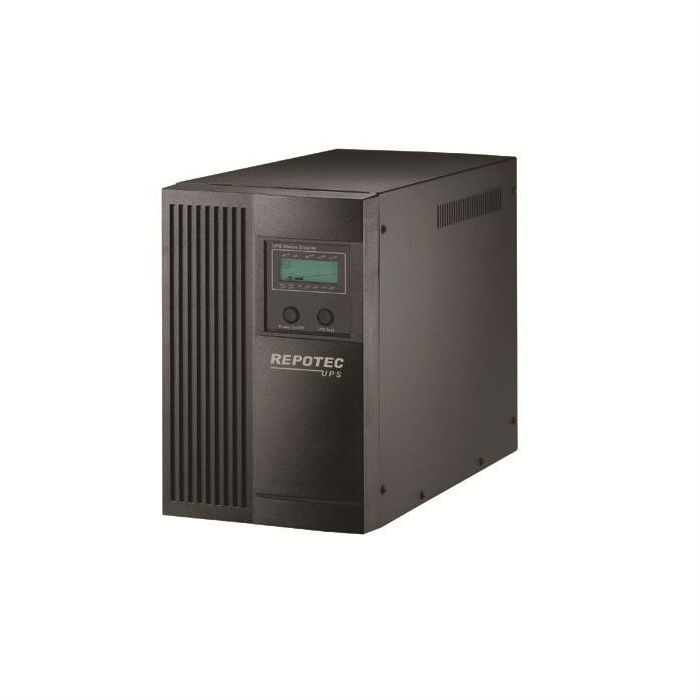

RPT-3003AUL 3KVA AVR

производител: Repotec

Модел: RPT-3003AUL

Капацитет: 3KVA/1800W

Вид/модел: Line-interactive

Вход: Voltage:110/115/120VAC or 220/230/240VAC; Voltage Range:86VAC~144VAC or 172VAC ~288VAC (+/-25%); Frequency:47Hz~53Hz or 57Hz ~63Hz.

Изход: Voltage Regulation(Batt. Mode):110/115/120VAC or 220/230/240VAC +/-10%; Frequency:50Hz or 60Hz +/-1Hz; Waveform:Simulated Sine wave; Transfer Time:< 6ms (Typical); Outlet:IEC-320/Nema 5-15R 4/4/.

Интерфейси: Communication port:Shutdown software for Windows 95/98/NT/2000/ME/XP/Vista(Optional).

Дисплей: Display (LCD):LCD display for AC normal, Back-up, AVR protection, Load and Battery level, Overload and UPS cut off.

Аларми: Buzzer on for Back-up mode, Battery low, Overload

Батерия: Battery Type:12V/12AH*4pcs; Recharge Time:5Hrs to 90% after complete discharge; User’s Replacement:Yes; Battery Protection:Over discharge protection & Short circuit protection by fuse; Advanced Battery Management:Yes; Battery Back-up Time:It depends on connecting loads.

Заобикаляща среда: Output Short Protection:AC fuse and Electronic circuit(Line mode);Electronic circuit (Back-up mode); Communication Port:Shutdown software for Windows 95/98/NT/2000/ME/XP/Vista(Optional); Modem/Phone Protection:RJ-11/RJ-45; Lightning/Surge Protection:240joules; AVR (Auto. Voltage Regulation):Boost/Buck; DC Start Function:Yes; Auto. Restart UPS:Yes; Over/Under Voltage Protection:Yes; Safety Standard:CE (EN50091-1,EN62040-1-1); EMC Standard:FCC Part 15 Class B,CE (EN50091-2,EN55011,EN61000-3-2,EN61000-3-3); Operating Temperature:0°C ~ 40°C; Relative Humidity:0% ~ 95%, Non-Condensing; Audible Noise:< 40dB at 1M.

Стандарти: Safety Standard:CE (EN50091-1,EN62040-1-1); EMC Standard:FCC Part 15 Class B,CE (EN50091-2,EN55011,EN61000-3-2,EN61000-3-3).

Размери: 408 x 143 x 197mm

Производител: REPOTEC

Гаранция: 24 месеца, 12 месеца за батерията
