Модел: SSR-650FX GOLD
Форма фактор: Intel ATX 12 V
AC вход: Voltage: 100 V – 240 V; Current: 9 – 4.5 A; Frequency: 50 Hz – 60 Hz.
DC изход: Total continuous power:650 W; Rail/Maximum Power: +3.3 V/20 A/100 W; +5 V/20 A/100 W; +12 V/54 A /648 W; -12 V/0.3 A/3.6 W; +5 VSB/3 A/15 W.
Конектори: Main Power (24/20 pins) x 1 (610 mm ); CPU (8/4 pins) x 2 (650 mm ); PCIe (8/6 pins) x 7 (750 mm+75mm ); SATA x 10 (450mm+120mm+120mm+120mm); Molex x 5 (450mm+120mm+120mm);Molex to Sata x 1
Тип PFC: Active PFC

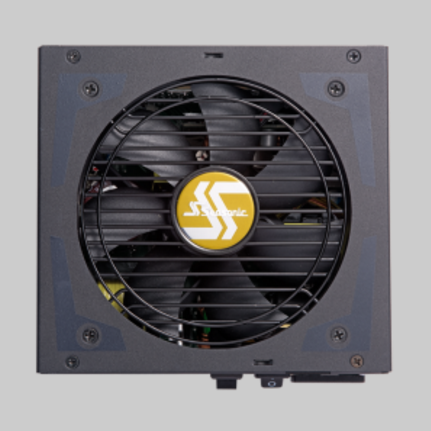

Информация за вентилатора: Fan Size: 120 mm; Fan Control: Hybrid Silent fan Control; Fan Bearing: Fluid Dynamic Bearing; Life Expectancy: 70,000 hours at 40 °C, 15 % – 65 % RH.

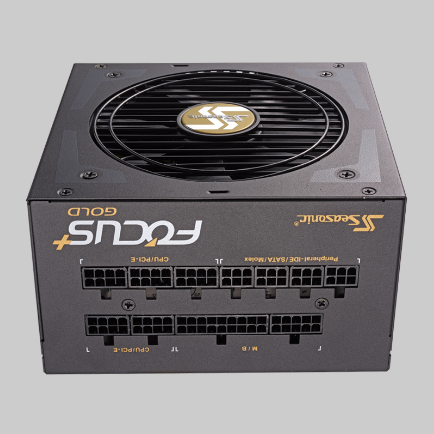

Информация за кабела: Modularity: Fully Modular; Cable type: Flat black cables.
Характеристика: Operating Temperature: 0 – 50 °C; MTBF @ 25 °C, excl. fan: 100,000 hours; AC Input: Full Range; Protection: OPP, OVP, UVP, OCP, OTP, SCP.
Безопасност и опазване на околната среда: Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM; Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH.
Размери: 150 x 140x 86 mm
Производител: SEASONIC
Гаранция: 96 месеца
