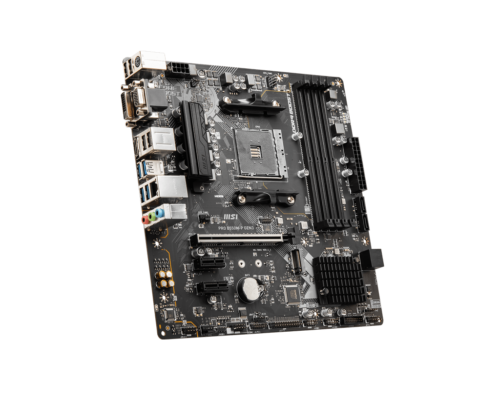

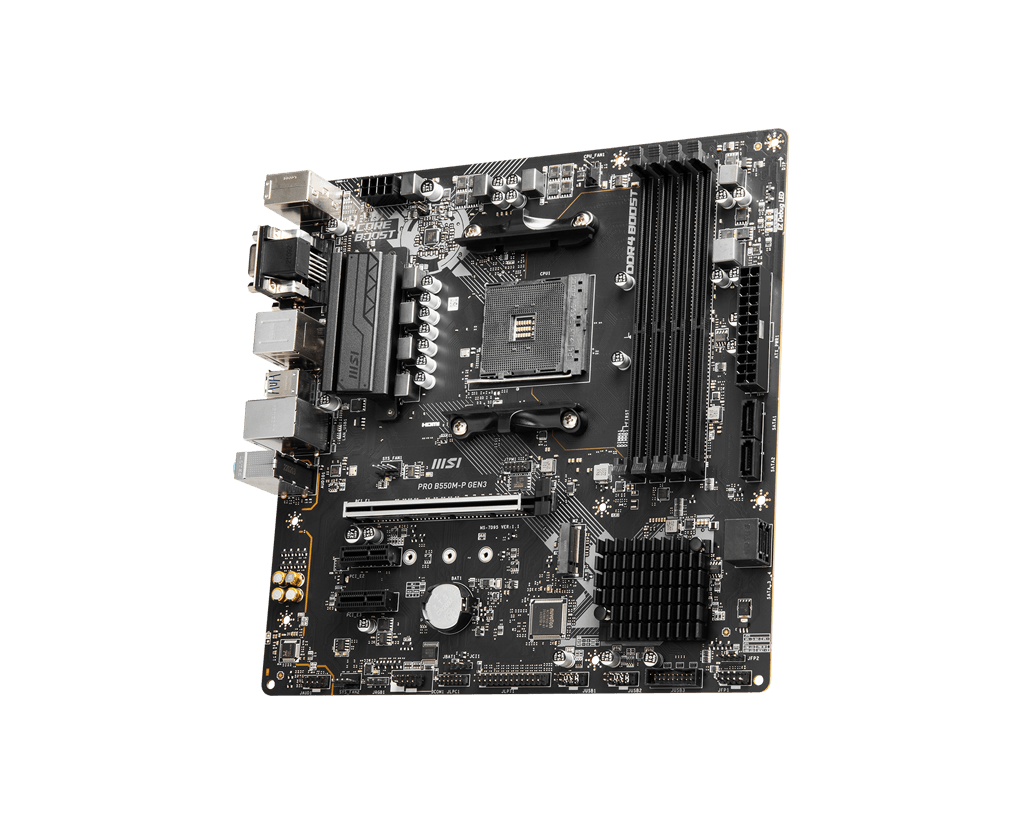

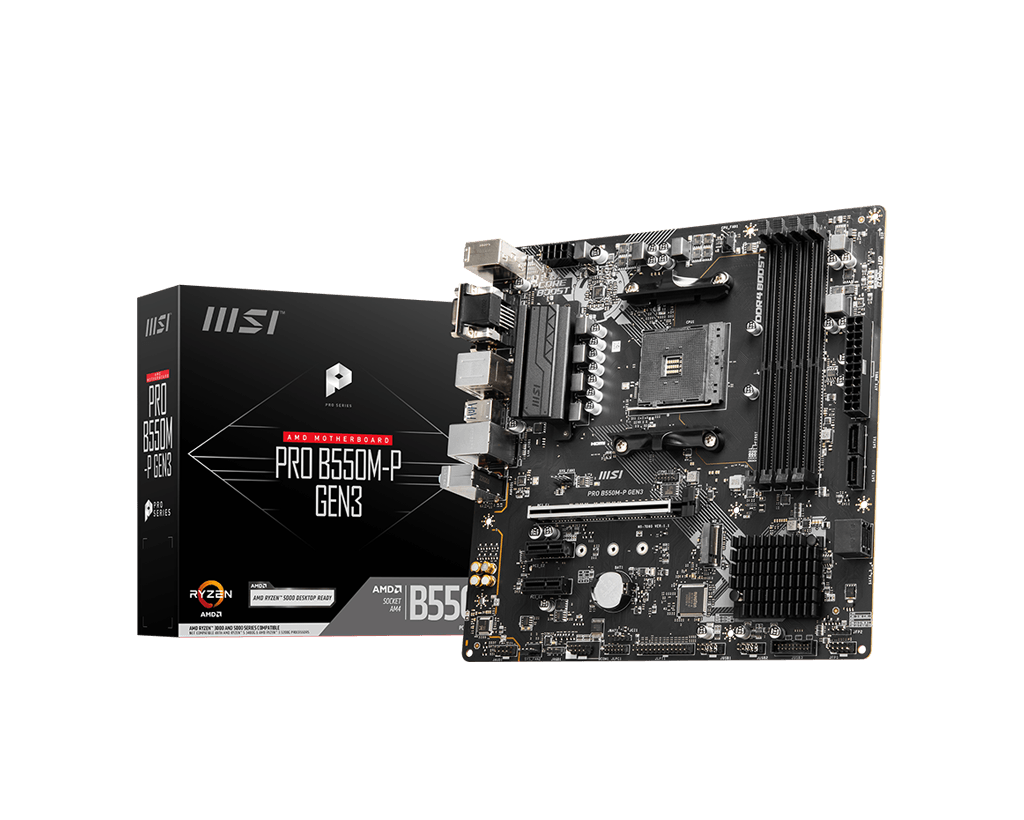

MSI PRO PRO B550M-P GEN3

Тип памет: 4x DDR4 memory slots, supporting up to 128GB* 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4400 MHz; 1DPC 2R max speed 3733 MHz; 2DPC 1R max speed 3866 MHz; 2DPC 2R max speed 3466 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory

CPU’s supported: Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Чипсет: AMD® B550 Chipset

Графика: 1x VGA port, supports a maximum resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz 1; 1x HDMI™ 1.4 port, supporting a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz 1 2; 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz 1 2; Maximum shared memory of 16 GB

Слотове за разширение: 1x PCIe 3.0 x16 slot (From CPU); 2x PCIe 3.0 x1 slots (From AMD B550 chipset)

Съхранение: 4x SATA 6Gb/s ports (From AMD B550 Chipset) 1;1x M.2 slot (Key M); M2_1 slot (From CPU); Supports PCIe 3.0 x4; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices

I/O: Keyboard / Mouse; VGA; USB 2.0; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0; DVI-D; HDMI™; USB 3.2 Gen 1 5Gbps Type-A

Конектори: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Serial port connector; 1x Parallel port connector; 1x TPM module connector; 1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From AMD B550 Chipset); Supports additional 4 USB 2.0 ports; 1x Clear CMOS jumper; 1x 4-pin RGB LED connector; 4x EZ Debug LED

Аудио: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

LAN: 1x Realtek® RTL8111H 1Gbps LAN controller

BIOS: 1x 256 Mb flash; UEFI AMI BIOS; ACPI 6.1, SMBIOS 2.8; Multi-language

Форма фактор: m-ATX Form Factor; 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Производител: MSI

Гаранция: 36 месеца
