MSI B450 GAMING PLUS MAX /AM4

Тип памет: 4 x DDR4 memory slots, support up to 64GB; Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); For AMD Ryzen Gen3 (R5/R7/R9); Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE); For AMD Other CPU; Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE); Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode)

CPU’s supported: Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Чипсет: AMD® B450 Chipset

Графика: 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hzz1; 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1; Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB

Слотове за разширение: 1 x PCIe 3.0 x16 slot (PCI_E1); 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode; Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode; Athlon™ with Radeon™ Vega Graphics support x4 mode; 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1; 4 x PCIe 2.0 x1 slots1

Съхранение: 2 x SATA 6Gb/s ports1; 1 x M.2 slot (Key M)1; Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices; AMD® B450 Chipset; 4 x SATA 6Gb/s ports; SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

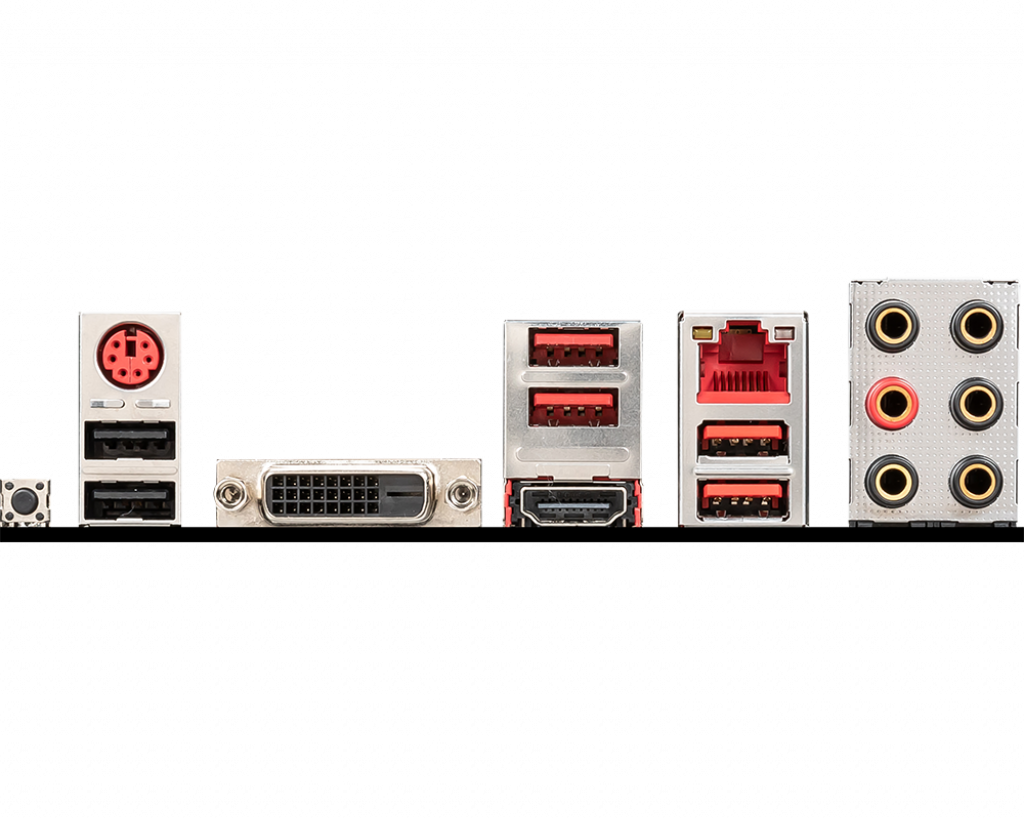

I/O: PS/2 Combo Port; USB 3.2 Gen1; LAN Port; HD Audio Connectors; Flash BIOS Button; USB 2.0 Ports; DVI-D Port; HDMI Port; USB 3.2 Gen2

Конектори: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 6 x SATA 6Gb/s connectors; 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports); 1 x 4-pin CPU fan connector; 1 x 4-pin water-pump-fan connector; 4 x 4-pin system fan connectors; 1 x TPM module connector; 1 x Front panel audio connector; 2 x System panel connectors; 1 x Serial port connector; 1 x Parallel port connector; 1 x Chassis Intrusion connector; 1 x Clear CMOS jumper; 2 x 5050 RGB LED strip 12V connectors

Аудио: Realtek® ALC892 Codec:7.1-Channel High Definition Audio

LAN: 1 x Realtek® 8111H Gigabit LAN controller

Форма фактор: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); ATX Form Factor

операционна система: Support for Windows® 10 64-bit; Support for Windows® 7 64-bit

Производител: MSI

Гаранция: 36 месеца
