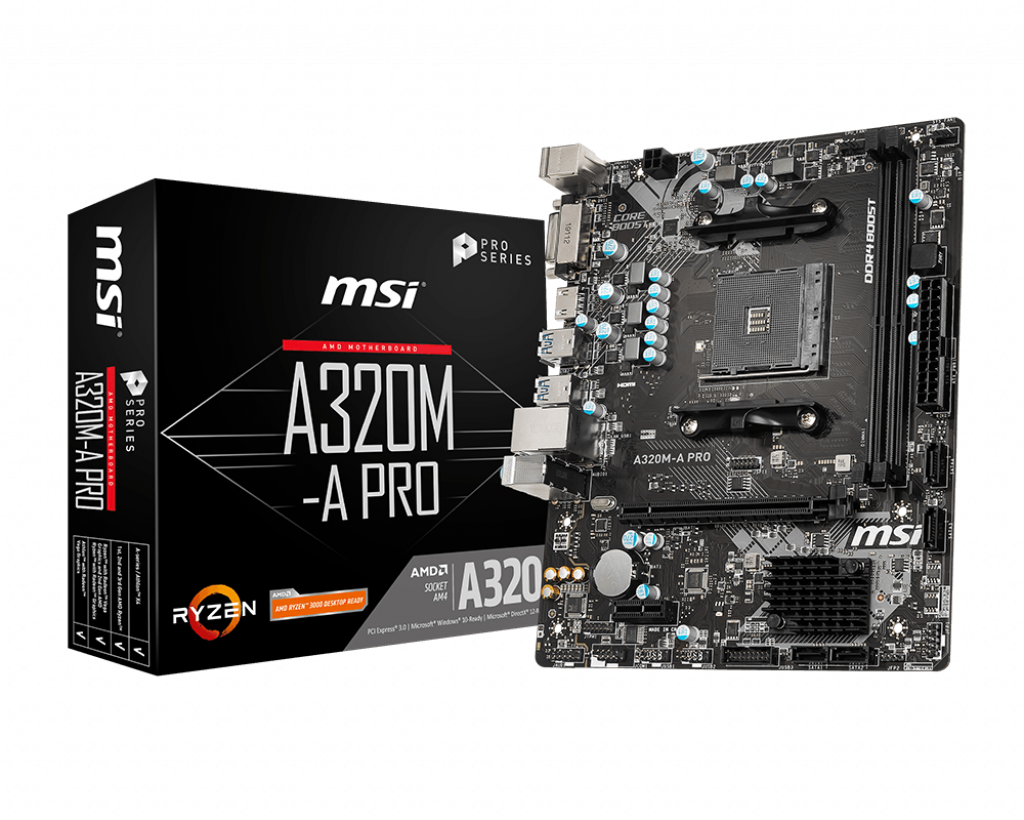

MSI A320M-A PRO

Модел: MSI A320M-A PRO

CPU’s supported: Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Тип памет: 2 x DDR4 memory slots, support up to 32GB1; Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode)

Чипсет: Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Гнездо: AM4

Графика: 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1,2; 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz1,2; Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMaximum shared memory of 2048 MB

Слотове за разширение: 1 x PCIe 3.0 x16 slot; Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processorss; Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors; Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors; 1 x PCIe 2.0 x1 slots

Съхранение: AMD® A320 Chipset; 4 x SATA 6Gb/s ports; Supports RAID 0, RAID 1 and RAID 10

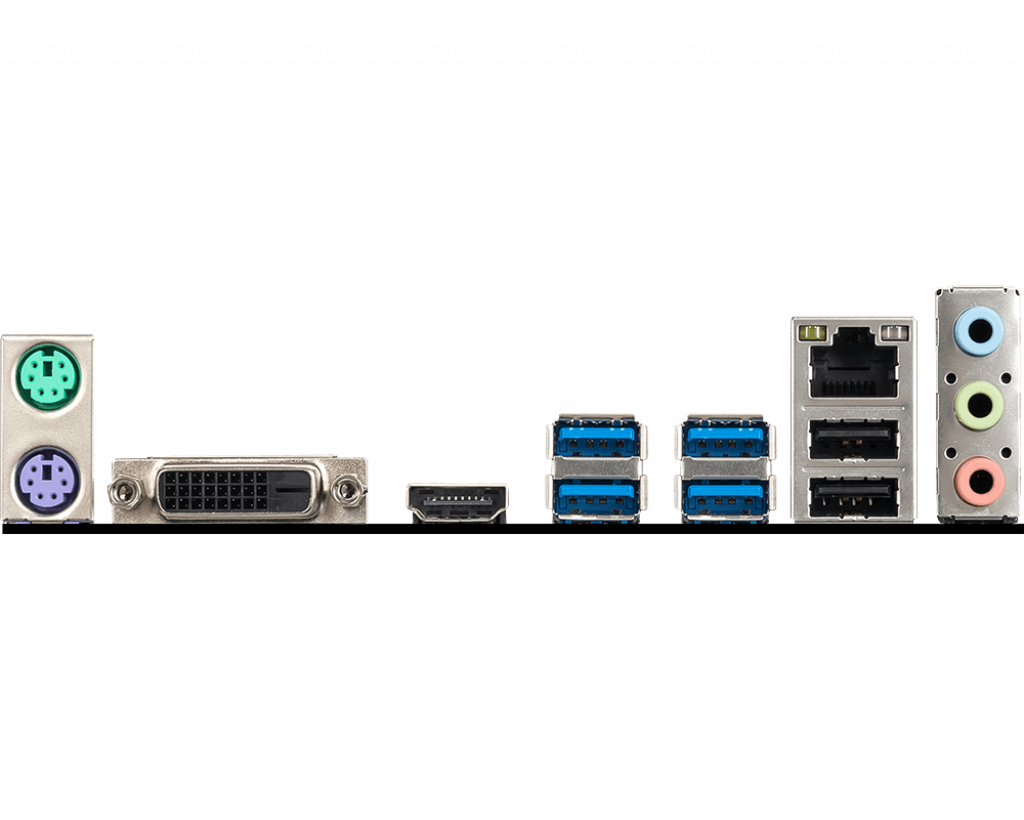

I/O: Mouse; DVI-D Port; USB 3.2 Gen1; LAN Port; Keyboard; HDMI Port; USB 2.0 Ports; HD Audio Connectors

Конектори: 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ; 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1 x 4-pin CPU fan connector; 1 x 4-pin system fan connector; 1 x Front panel audio connector; 1 x Serial port connector; 2 x Front panel connectors; 1 x TPM module connector; 1 x Chassis Intrusion connector; 1 x Clear CMOS jumper

Аудио: Realtek® ALC892 Codec:7.1-Channel High Definition Audio

LAN: 1 x Realtek® 8111H Gigabit LAN controller

Форма фактор: 8.9 in. x 7.4 in. (22.6 cm x 18.7 cm); m-ATX Form Factor

операционна система: Support for Windows® 10 64-bit; Support for Windows® 7 64-bit

Производител: MSI

Гаранция: 36 месеца
