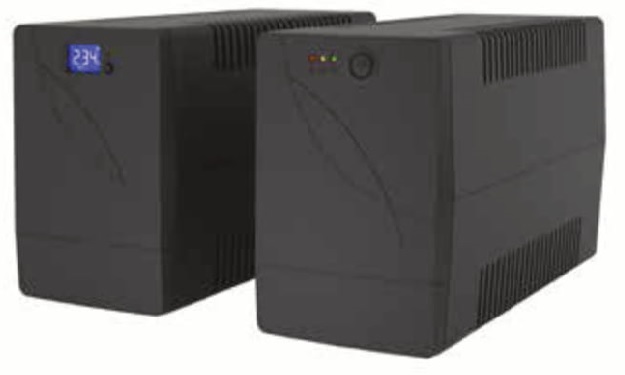

GUARDIAN 1500AP 1KVA/AVR

производител: INFORM

Производствена част №: GUARDIAN 1500AP

Модел: 1500AP 1KVA/AVR

Капацитет: 1500 VA

Вид/модел: Line-interactive

Вход: Voltage:230V or 220V ± 25%; Frequency:50 or 60 Hz ± 5Hz (auto sensing).

Изход: Power Factor:0.6; Voltage (On battery):230V or 220V ± 10%; Waveform (On battery):Simulated Sinewave; Frequency (On battery):50 or 60 Hz ± 1Hz; Voltage Regulation (AVR):AVR automatically increase output voltage 15% above input voltage if -9% to-25% of nominal AVR automatically decrease output voltage 13% below input voltage if +9% to+25% of nominal; Transfer Time:4 ms; IEC Version:6pcs IEC C13; Schuko Version:2pcs Schuko .

Интерфейси: Interface (Communication Ports):RS232 Standard; Software:Standard.

Дисплей: LED Display:4 LEDs for Line, Back up, fault and Overload.

Батерия: Type:Maintenance-free lead acid batteries; Recharge Time: 6-8 hours (to 90% of full capacity); Voltage:24VDC; Quantity:2x12V 9Ah.

Заобикаляща среда: Protection class: IP20; Protection:Short Circuit, Overload, Noise Suppression, Spike, Battery Overdischarge, Modem/Network (AP Models only); Operating Temperature: 0-40 °C; Humidity: 0-95% non-condensing; Audible Noise at 1m: <45dBA .

Стандарти: EN 62040-1-1 (safety); EN62040-2 (EMC)

Размери: 146 x 397 x 205mm

Производител: INFORM

Гаранция: 24 месеца, 12 месеца за батерията
