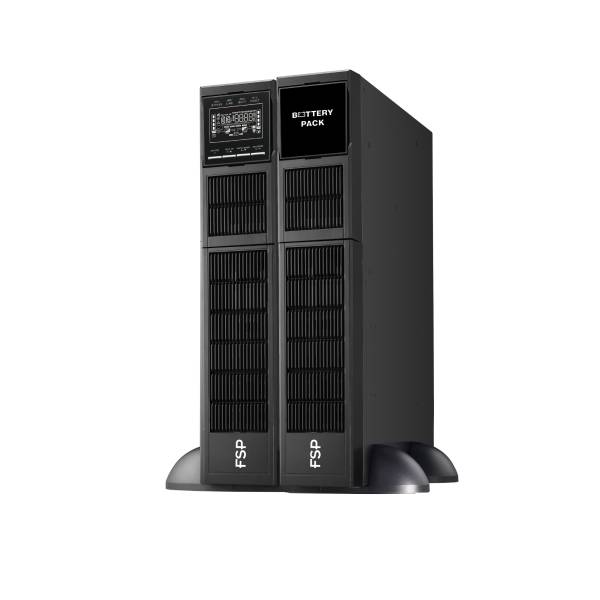

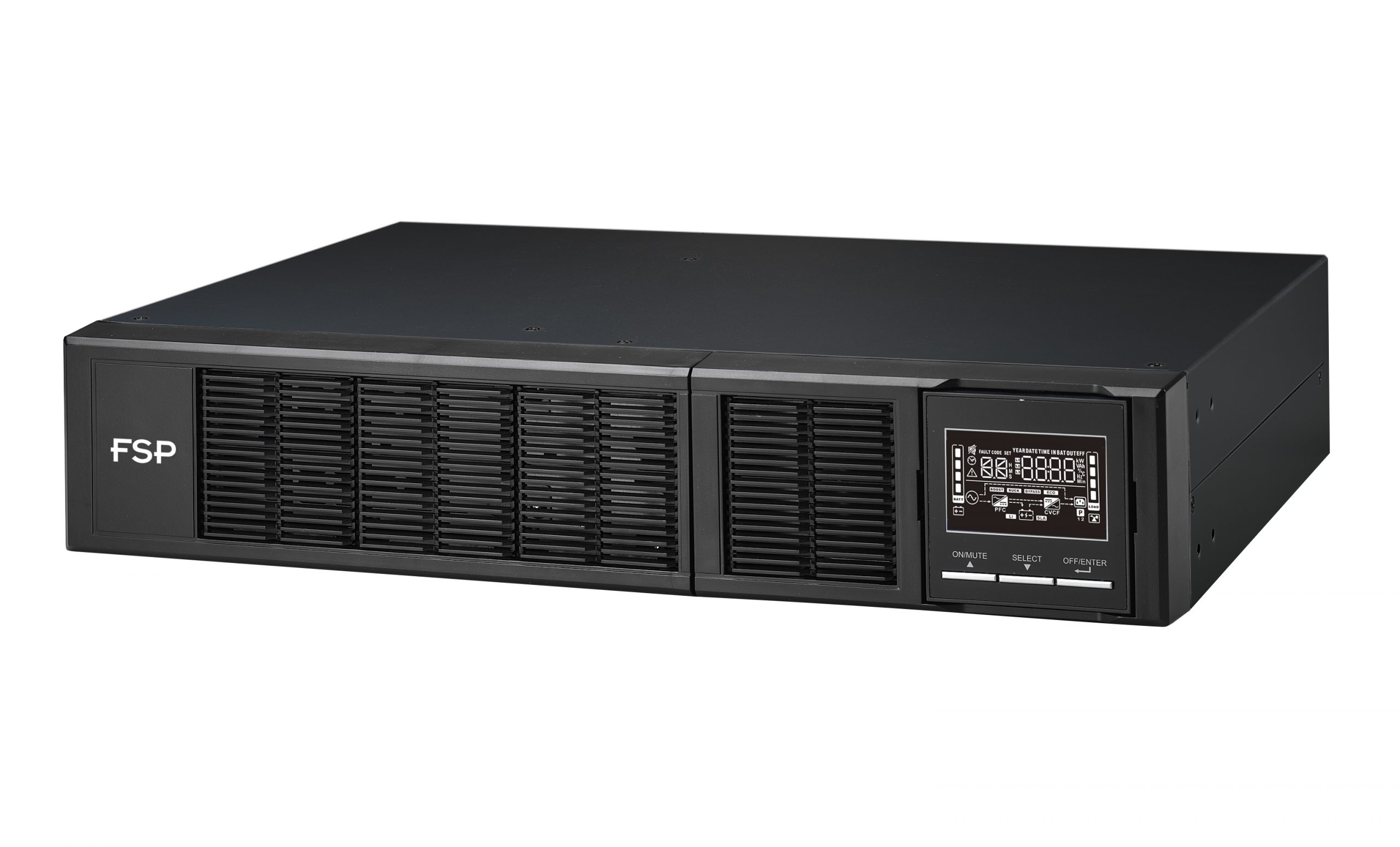

FORTRON CLIPPERS RT 3K ON-LINE

Капацитет: 3000 VA / 3000W

Вход: Input Voltage Range:160-300 VAC ±5%; Input Frequency:40Hz ~ 70Hz; Power Factor:≥ 0.99 @ Nominal Voltage (100% load)

Изход: Output Frequency Range:46 Hz ~ 54 Hz or 56Hz ~ 64 Hz (Synchronized Range),50 Hz or 60 Hz ±0.1 Hz (Batt. Mode); Current Crest Ratio:3:1; Harmonic Distortion:≤ 2 % THD (Linear Load),≤ 4 % THD (Non-linear Load); Output Transfer Time (Typical):Zero (AC to DC),4ms (Inverter to Bypass); Output Waveform (Batt. Mode):Pure Sinewave

Аларми: Alarm / Overload:Sounding twice per second; Alarm / Fault:Continuously sounding

Батерия: Battery Type & Number:12V / 9Ah x 6; EMC/ Safety:EMC EN62040-2 C2 for CE models; Typical Recharge Time (up to 90% capacity):3 hours; Indicators / AC Mode-YES; Indicators / Battery Mode-YES; Indicators / Battery level-YES; Indicators / Load level-YES; Indicators / Bypass mode-YES; Indicators / Fault-YES; Alarm / Battery Mode:Sounding every 4 seconds; Alarm / Low Battery:Sounding every second (Batt. Mode)

Заобикаляща среда: Backup Time:Full load up to 33 minutes (with 2 external battery pack); Operating Environment / Humidity:20-90 % RH @ 0- 40°C (non-condensing); Operating Environment / Noise Level:50dB @ 1 Meter

Тегло: 27.50 kg

Размери: 438 x 88 x 630 MM

Други: Management / Optional USB / RS-232 Port:Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/2003/2008/2012/2016, Linux, and MAC; Optional SNMP:Power management from SNMP manager and web browser

Производител: FORTRON

Гаранция: 24 месеца
