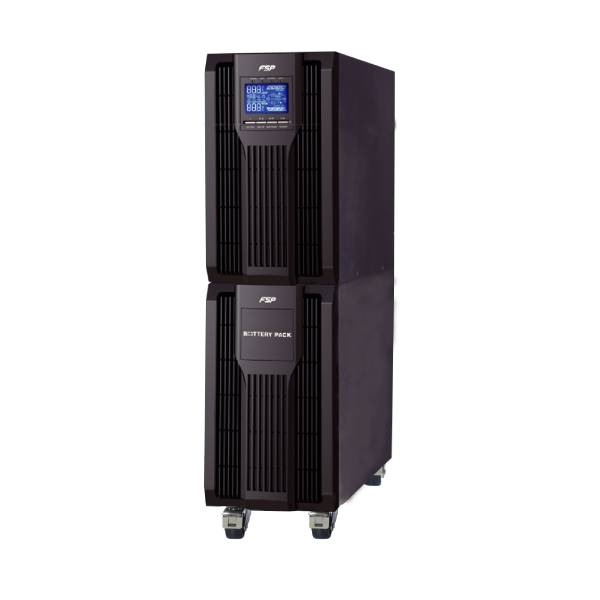

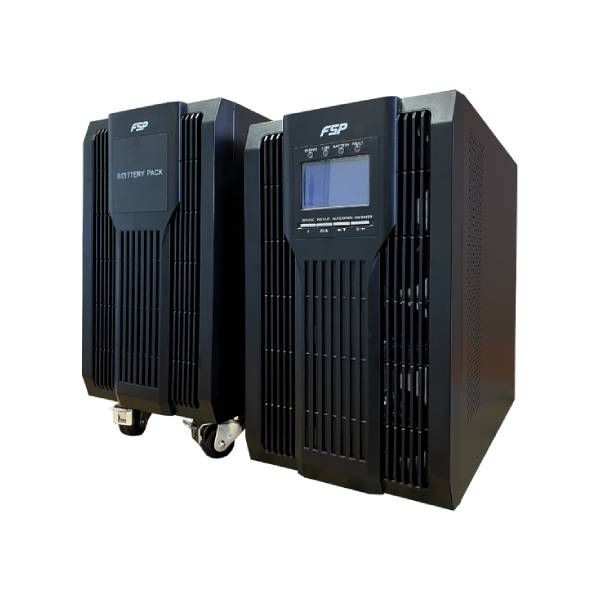

FORTRON CHAMP 10KL TOWER ON-LI

Капацитет: 10000 VA / 9000W

Вход: Input Voltage Range:110-300 VAC (50% load), 176-300VAC (100% load); Input Frequency:46Hz ~ 54Hz or 56Hz ~ 64Hz; Power Factor:≥ 0.99 @ Nominal Voltage (100% load)

Изход: Output Voltage:208/220/230/240 VAC; Output Frequency Range:46Hz ~ 54Hz or 56Hz ~ 64Hz; Current Crest Ratio:3:1 Harmonic Distortion:≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load); Output Transfer Time (Typical):Zero (AC to DC), Zero (Inverter to Bypass); Output Waveform (Batt. Mode):Pure Sinewave

Аларми: Alarm / Battery Mode:Sounding every 4 seconds; Alarm / Low Battery:Sounding every second (Batt. Mode); Alarm / Overload:Sounding twice per second; Alarm / Fault:Continuously sounding

Батерия: Battery Type & Number:No internal battery; Backup Time :Up to 6mins @ full load; Typical Recharge Time (up to 90% capacity):4 hours; Alarm / Battery Mode:Sounding every 4 seconds; Alarm / Low Battery:Sounding every second (Batt. Mode)

Заобикаляща среда: Operating Environment / Humidity:20-90 % RH @ 0- 40°C (non-condensing); Operating Environment / Noise Level:Less than 50dB @ 1 Meter

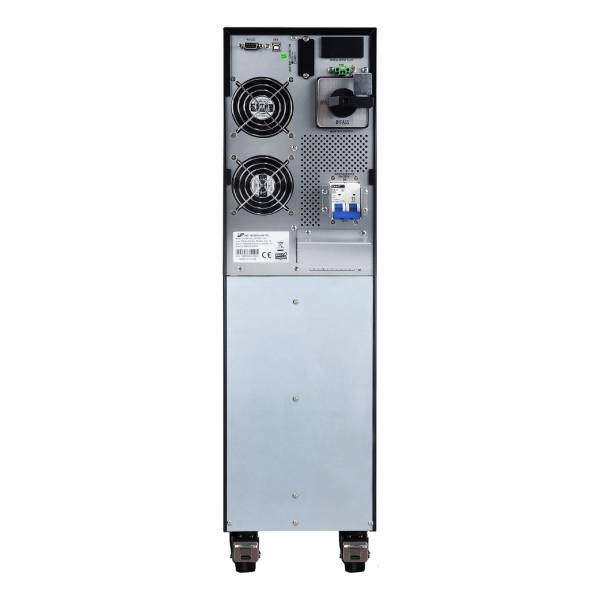

Интерфейси: Management / Optional USB / RS-232 Port:Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/2003/2008/2012/2016, Linux, and MAC; Optional SNMP:Power management from SNMP manager and web browser

Размери: 442 x 190 x 318 mm

Производител: FORTRON

Гаранция: 24 месеца
