COUGAR STC650 PSU, 80 plus White, 650W

Наличност:

Изчерпан

 Код: 007-STC650 Категория:
Вземи на изплащане с TBIPay
Добави в любими
Сравни

103,58 лв.

Изчерпан

Сподели това съдържание :)

Тип захранване: Захранващ модул

Разположение на захранването: Plug-in-module

Напрежение на входа: AC 200-240 V

Честота на входа: 50 Hz

Номинален входящ ток: 5 A

Максимално изходно захранване: 650 W

Защита на веригата: Пренапрежение
Undervoltage
Над ток
Защита от късо съединение
Over Power

Захранващ блок и адаптер – Характеристики: Active PFC

Сертифициране 80 Plus: Да

Ефективност: 86%

+3.3V: 18 A (115 W)

+5V: 20 A (115 W)

+12V: 52 A (624 W)

-12V: 0.3 A

+5VSB: 3 A

20+4-пинов конектор: 1

4/8-пинов +12V захранващ конектор: 1

4 пинов периферен захранващ конектор: 2

15 пинов S-ATA конектор: 6

6/8-пинов PCI Express конектор: 2

Брой инсталирани вентилатори: 1

Вентилатор – диаметър: 120 мм

Външен цвят: Черен

Включени аксесоари: Ръководство за употреба

Гаранционни продукти – подлежащи на връщане: Да

Критерии за валидност на гаранцията: Сериен номер

Дълбочина на пакета (мм): 187 мм

Широчина на пакет (мм): 158 мм

Височина на пакет (мм): 165 мм

Тип пакет: Box

EAN код: 4710483776458

STC

650

Rigid Reliability, Extreme Silence

COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.

Power Conversion Efficiency

Up to 86% efficiency under 230V. A guaranteed highly reliable
power supply.

Active Power Factor Correction

High power conversion efficiency. PF value up to 99%, provides clean and reliable power

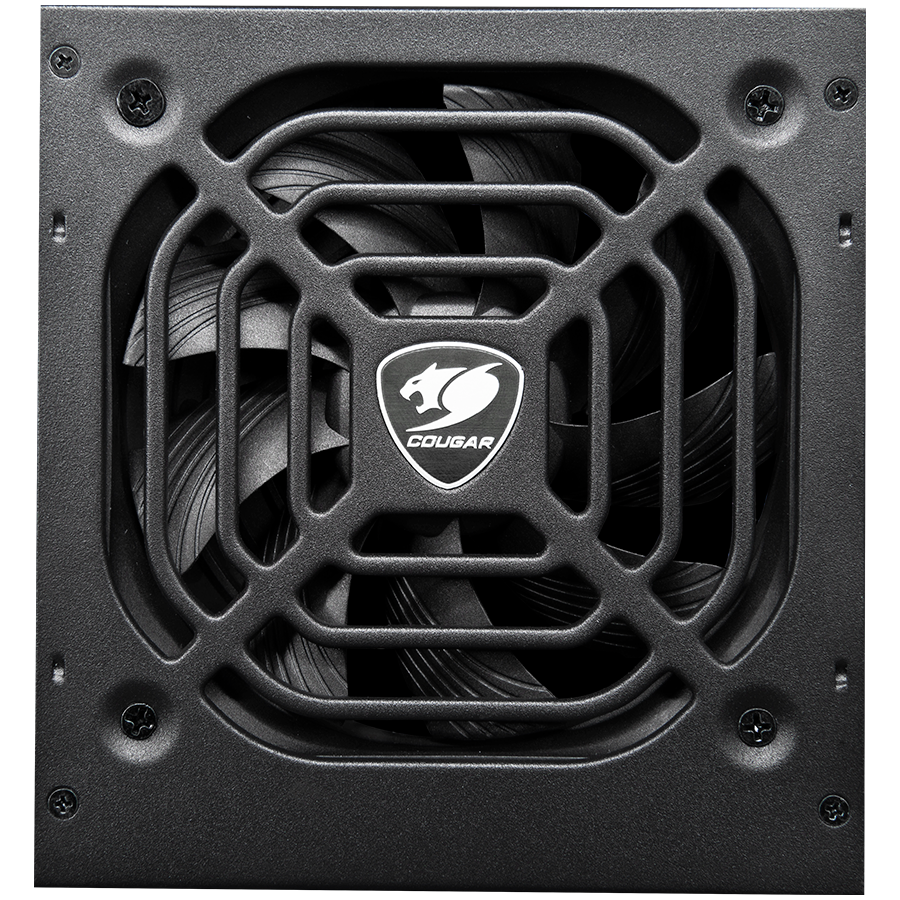

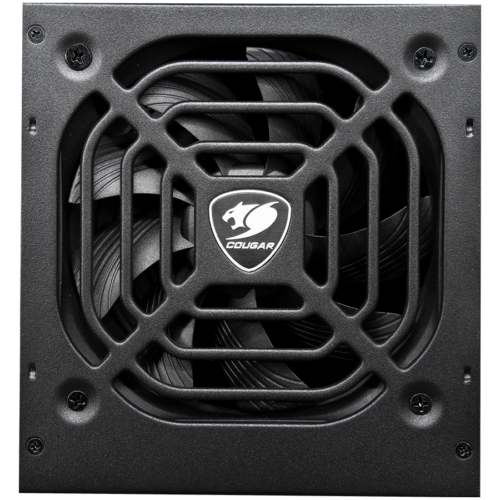

120mm Extreme Temperature Control

Using COUGAR’s exclusive 120mm silent fan, the advanced
frame increase the concentration of air-flow and its fan
curvature has been fine-tuned to reduce vibration at any loads,
helping you enjoy a quieter gaming experience.

Assigned Japanese Components

STC includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.

The Japanese polypropylene capacitor minimize the
noise during the voltage transition.

Features

Active Power Factor Correction (Active PFC)

PFC value up to 99%, provides clean and reliable power.

Compatible with the Newest Components

Created for use with multi-core CPU and PCI express 3.0
graphics cards with 8(6+2) pin PCI-e connector.

Superior Fan Curve Tuning

Advanced technology for noise minimization

105°C Japanese Standby Capacitors

Reliable and durable components that extend the PSU’s
useful life.

Strong Safeguards : OCP, OPP, OVP, UVP & SCP

Maximum safety for your key system components

Connector
Color Cables		 MB CPU P-ATA S-ATA PCI-E
Pin 24(20+4) 8(4+4) 4 5 8(6+2)
Length (mm) 450 650 450
STC 400 1 1 1 4 1
STC 500 1 1 2 5 2
STC 550 1 1 2 5 2
STC 600 1 1 2 6 2
STC 650 1 1 2 6 2
STC 700 1 2 3 8 4
STC 750 1 1 3 6 4

User Manual

STC 550 / 650

Protection

UVP (Under Voltage Protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OVP (Over Voltage Protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

SCP (Short-Circuit Protection)

In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OPP (Over Power Protection)

If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.

OCP (Overcurrent Protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.

Safety Standards

Производител: COUGAR GAMING

Гаранция: 24 месеца
