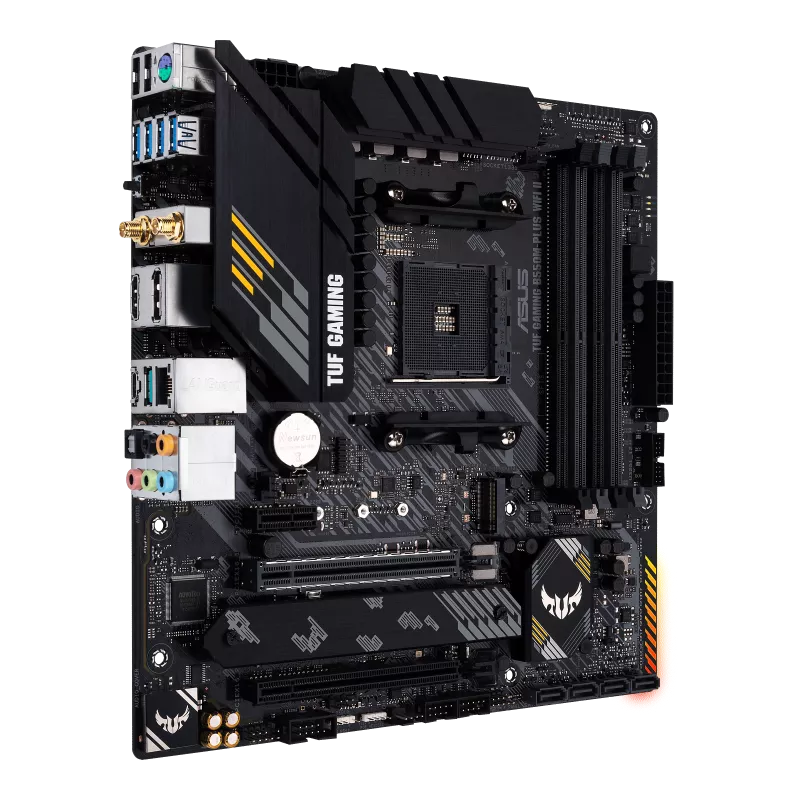

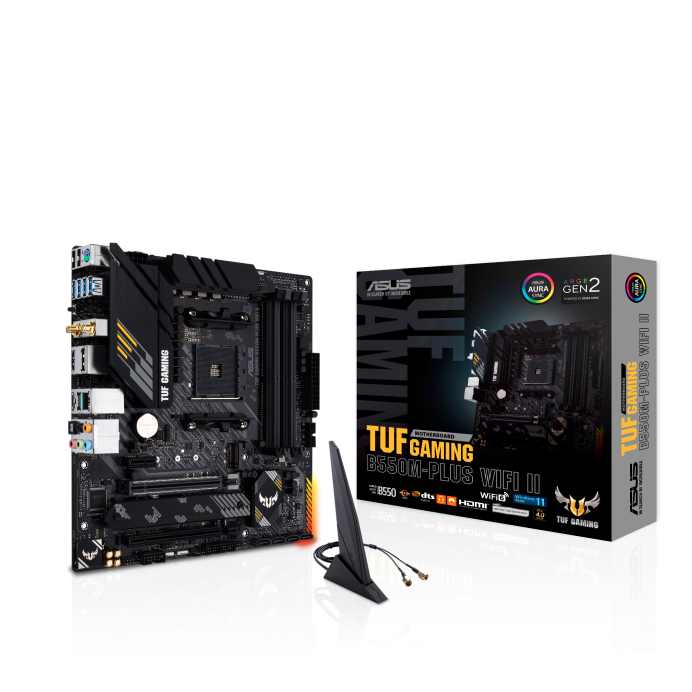

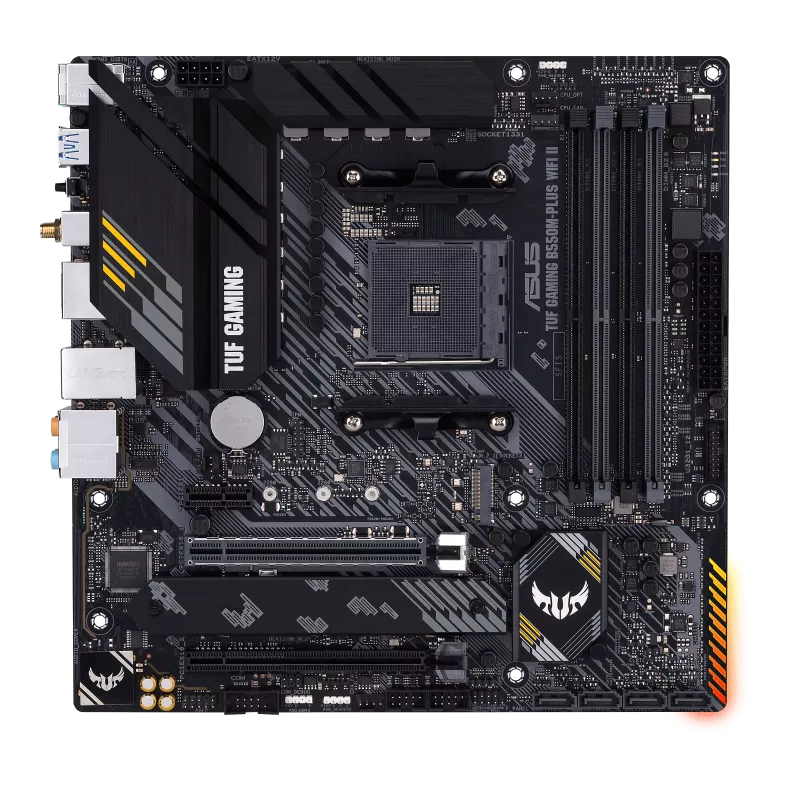

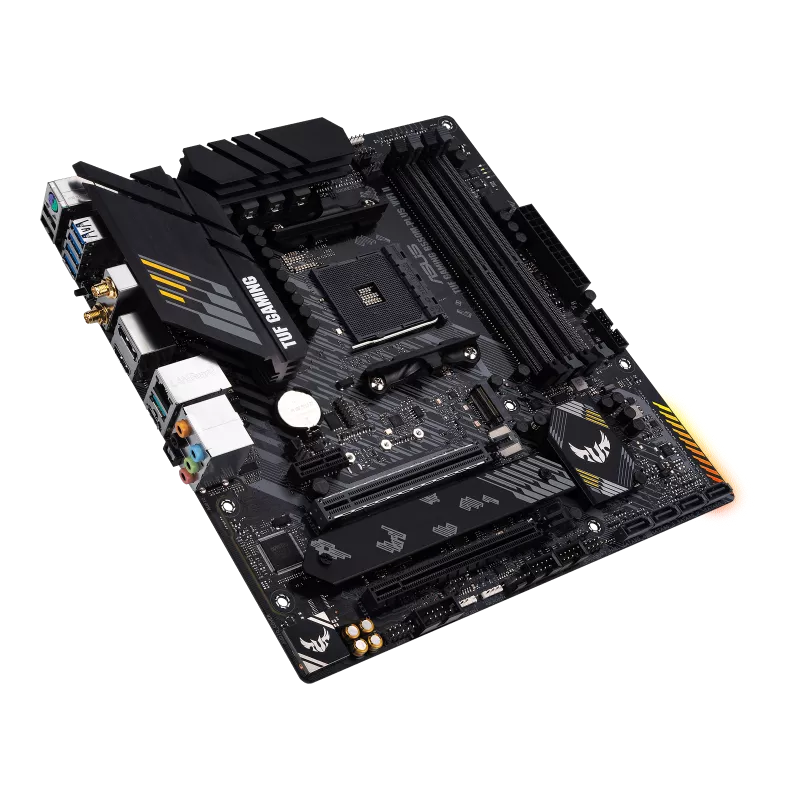

ASUS TUF GAM B550M-PLUS WF II

CPU’s supported: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Тип памет: 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*; Dual Channel Memory Architecture

Чипсет: B550

Графика: 1 x DisplayPort**; 1 x HDMI®port***

Слотове за разширение: AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode)*; AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors; 1 x PCIe 3.0 x16 slot (supports x16 mode)*; AMD B550 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode)**; 1 x PCIe 3.0 x1 slot**

Съхранение: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes); AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); AMD B550 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; Support RAID 0, 1, 10

I/O: 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®); 4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x BIOS FlashBack™ button; 1 x PS/2 Keyboard/Mouse combo port

Конектори: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x Addressable Gen 2 header; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

Аудио: Realtek 7.1 Surround Sound High Definition Audio CODEC; – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; – Supports up to 24-Bit/192 kHz playback; Audio Features; – Audio Shielding; – Rear optical S/PDIF out port; – Premium audio capacitors; – Dedicated audio PCB layers; – Audio cover

LAN: TUF LANGuard

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Форма фактор: microATX; 24.4cm x 24.4cm

операционна система: Windows 10 64bit; Windows® 11 ready; Windows® 10 64-bit

Други: 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2

Производител: ASUS

Гаранция: 36 месеца
