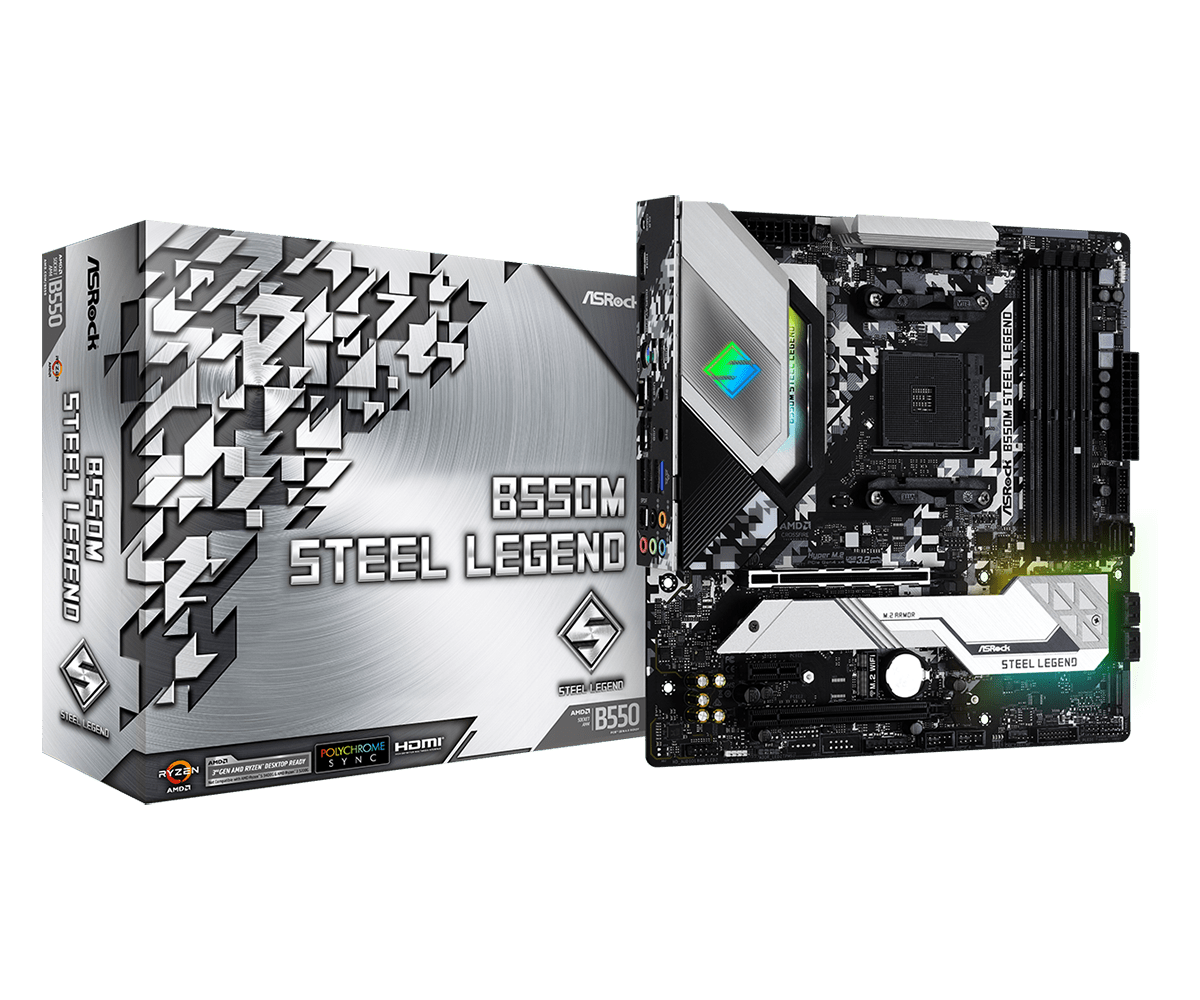

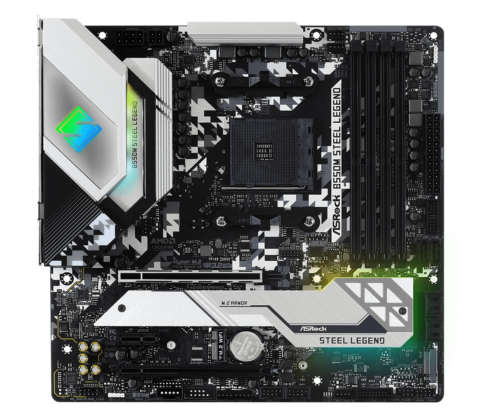

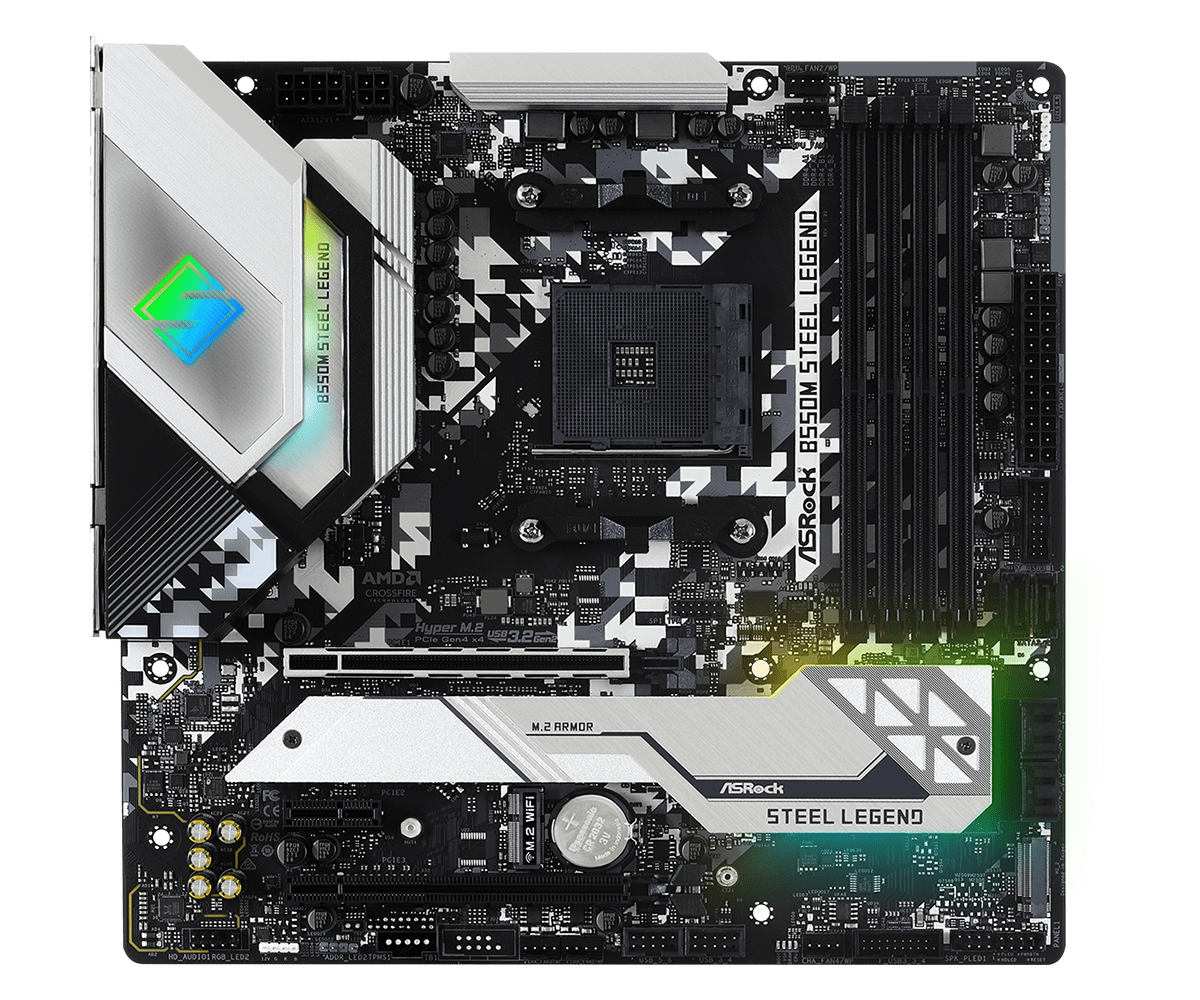

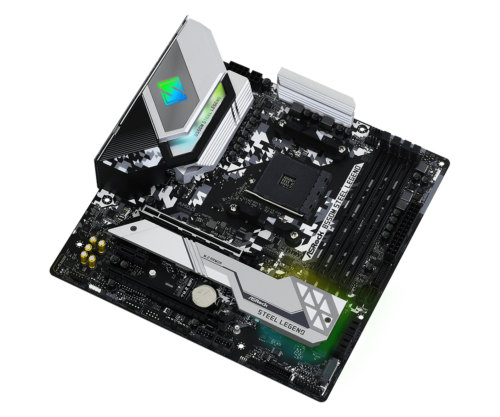

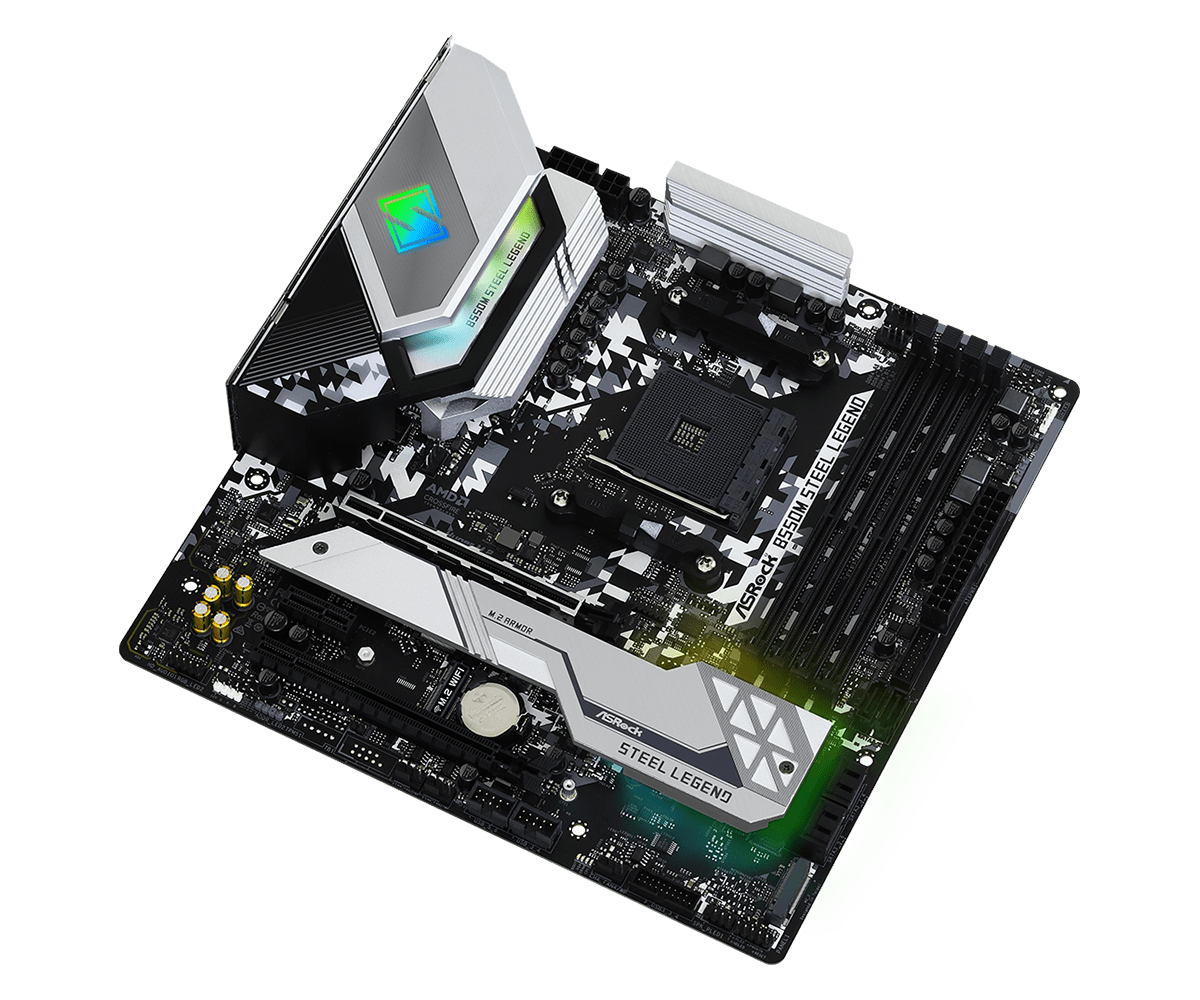

ASROCK B550M STEEL LEGEND

Тип памет: – Dual Channel DDR4 Memory Technology; – 4 x DDR4 DIMM Slots; – AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; – AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; – AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 41

CPU’s supported: – Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*; – Digi Power design; – 10 Power Phase design

Чипсет: – AMD B550

Графика: – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; – DirectX 12, Pixel Shader 5.0; – Shared memory default 2GB. Max Shared memory supports up to 16GB.**; – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz; – Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz; – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); – Supports HDR (High Dynamic Range) with HDMI 2.1; – Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***; – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; – Supports Microsoft® PlayReady

Слотове за разширение: AMD Ryzen series CPUs (Vermeer and Matisse); – 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); – 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*; AMD Ryzen series APUs (Picasso); – 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*; – 1 x PCI Express 3.0 x1 Slot; – Supports AMD Quad CrossFireX™ and CrossFireX™; – 15μ Gold Contact in VGA PCIe Slot (PCIE1); – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Съхранение: – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*; – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)**; – 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

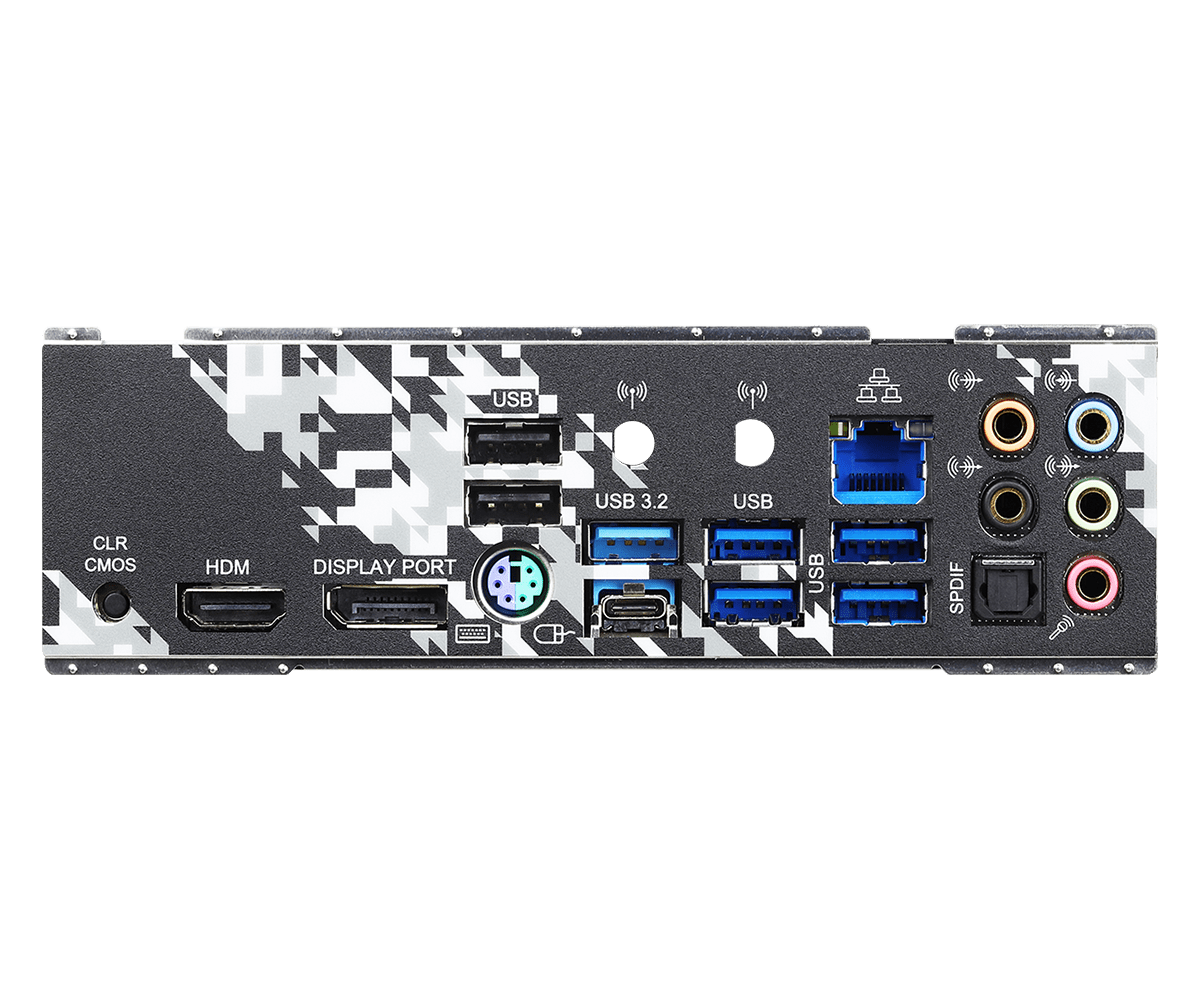

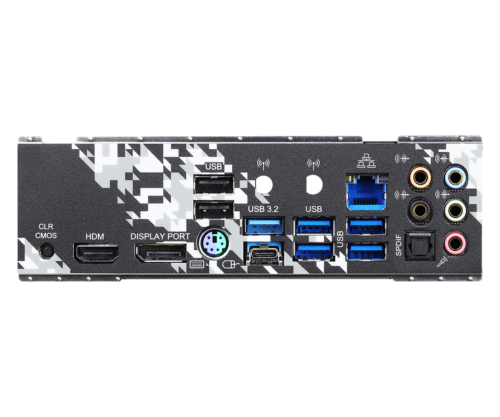

I/O: – 2 x Antenna Mounting Points; – 1 x PS/2 Mouse/Keyboard Port; – 1 x HDMI Port; – 1 x DisplayPort 1.4; – 1 x Optical SPDIF Out Port; – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); – 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection); – 2 x USB 2.0 Ports (Supports ESD Protection); – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); – 1 x Clear CMOS Button; – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Конектори: – 1 x SPI TPM Header; – 1 x Power LED and Speaker Header; – 2 x RGB LED Headers*; – 2 x Addressable LED Headers**; – 1 x CPU Fan Connector (4-pin)***; – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); – 1 x Front Panel Audio Connector; – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

Аудио: – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); – Premium Blu-ray Audio support; – Supports Surge Protection; – PCB Isolate Shielding; – Individual PCB Layers for R/L Audio Channel; – Gold Audio Jacks; – Nahimic Audio

LAN: – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; – Dragon RTL8125BG; – Supports Dragon 2.5G LAN Software; – Smart Auto Adjust Bandwidth Control; – Visual User Friendly UI; – Visual Network Usage Statistics; – Optimized Default Setting for Game, Browser, and Streaming Modes; – User Customized Priority Control; – Supports Wake-On-LAN; – Supports Lightning/ESD Protection; – Supports Energy Efficient Ethernet 802.3az; – Supports PXE

BIOS: – 256Mb AMI UEFI Legal BIOS with GUI support; – Supports „Plug and Play“; – ACPI 5.1 compliance wake up events; – Supports jumperfree; – SMBIOS 2.3 support; – CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

Форма фактор: – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – 2oz Copper PCB

операционна система: – Microsoft® Windows® 10 64-bit / 11 64-bit

Производител: ASROCK

Гаранция: 36 месеца
