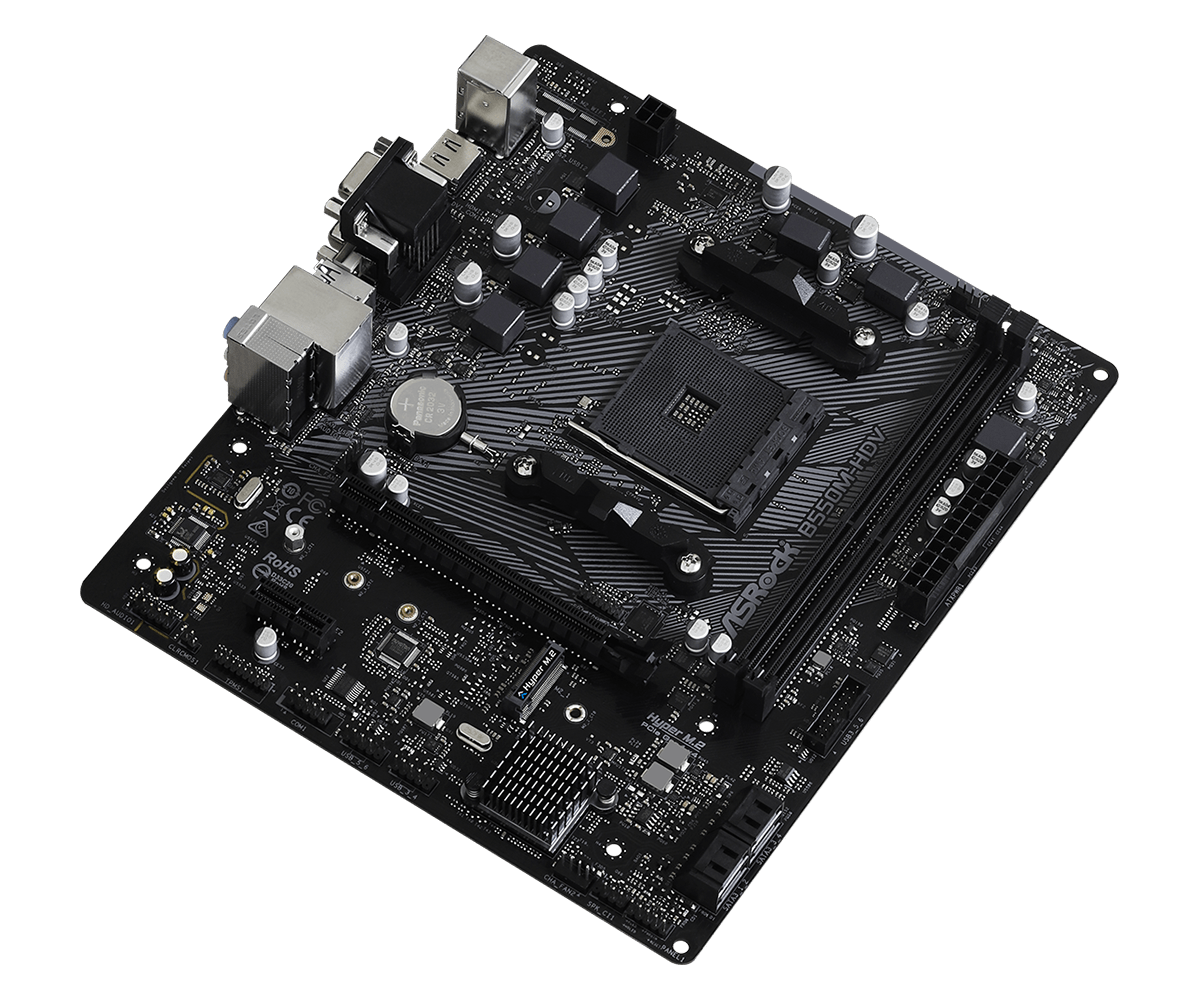

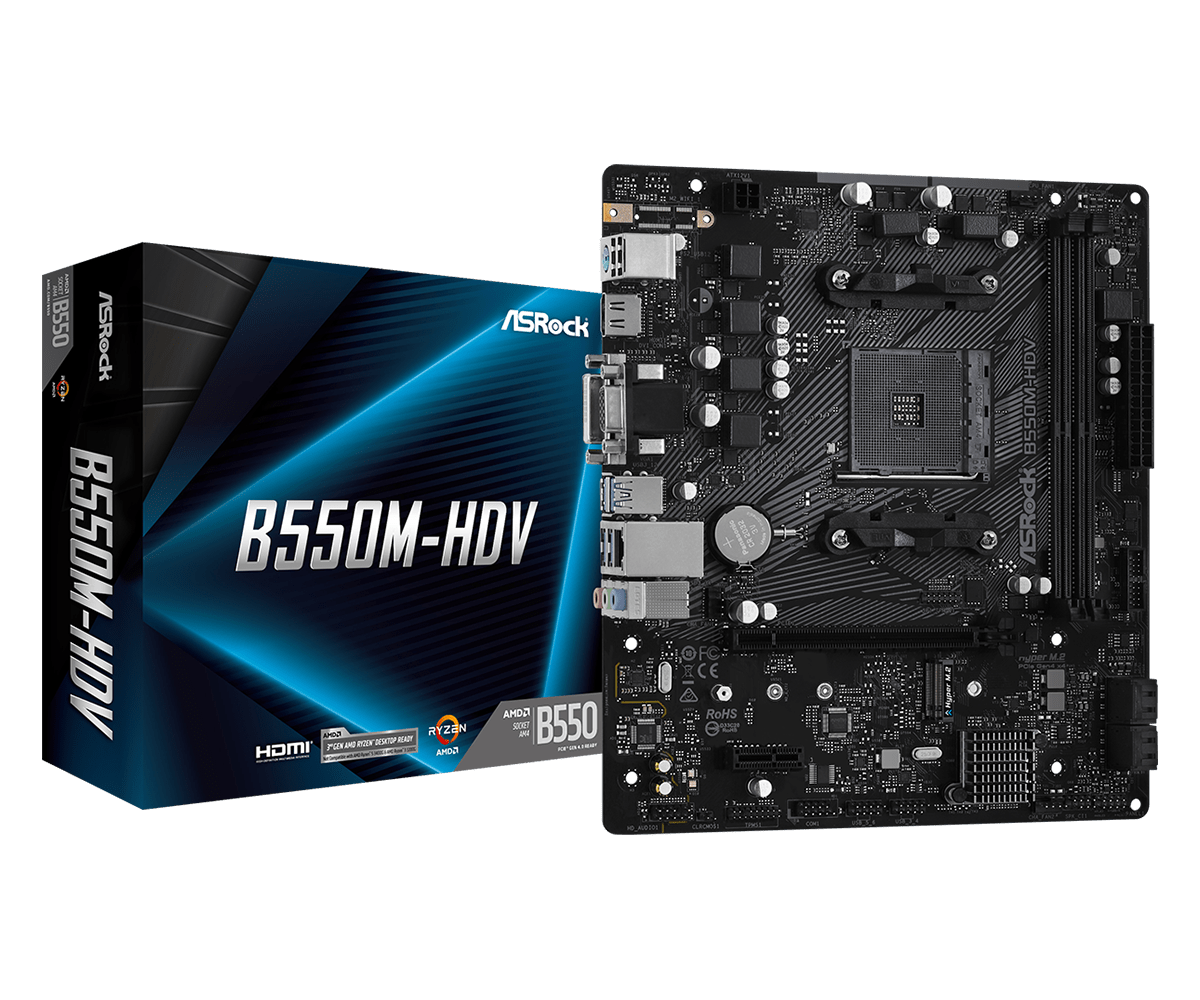

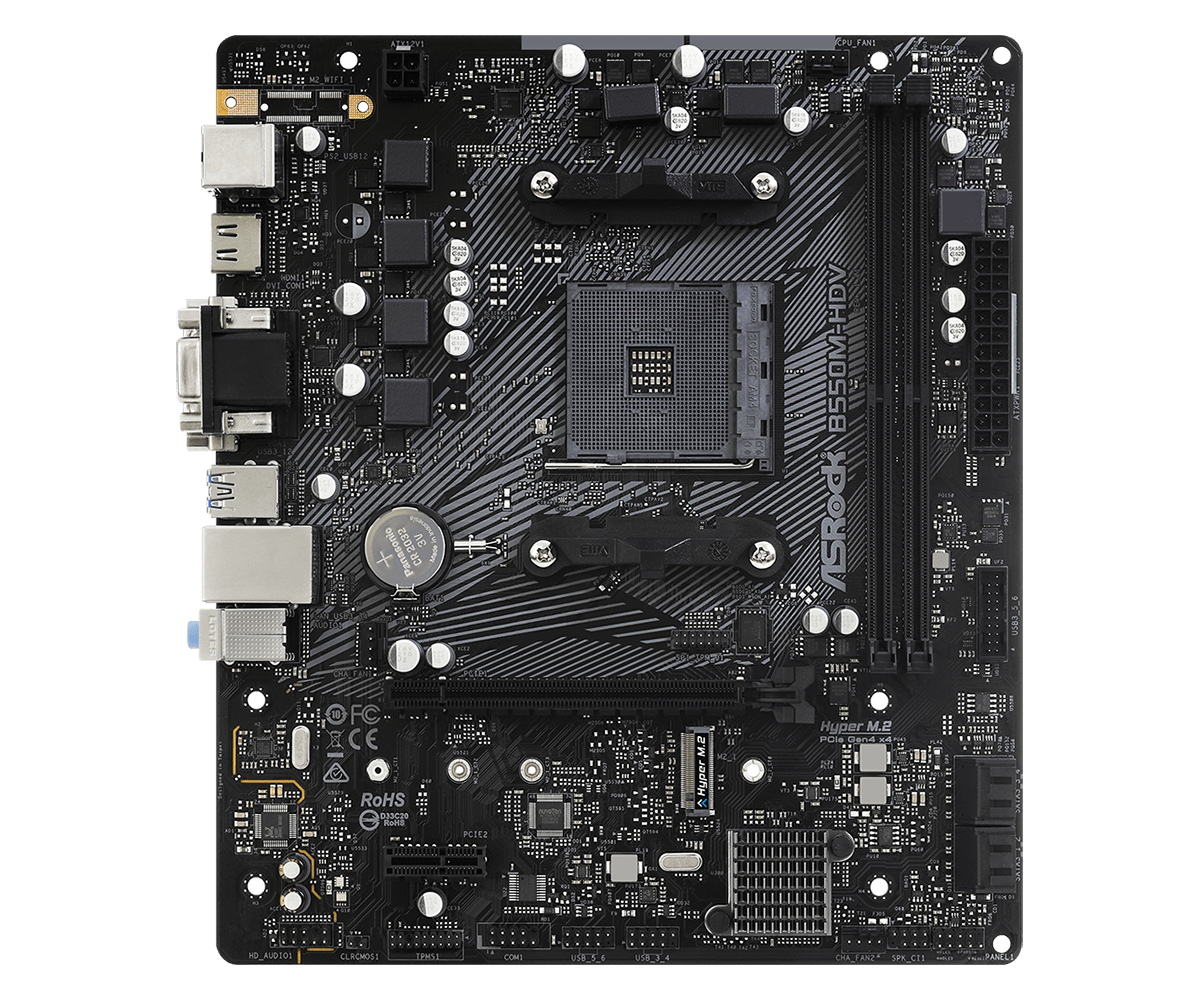

ASROCK B550M-HDV /AM4

Тип памет: – Dual Channel DDR4 Memory Technology; – 2 x DDR4 DIMM Slots; – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; – Max. capacity of system memory: 64GB**; – Supports Extreme Memory Profile (XMP) memory modules; – 15μ Gold Contact in DIMM Slots*

CPU’s supported: – Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors* – 6 Power Phase design

Чипсет: – AMD B550

Графика: – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; – DirectX 12, Pixel Shader 5.0; – Shared memory default 2GB. Max Shared memory supports up to 16GB.**; – Three graphics output options: D-Sub, DVI-D and HDMI; – Supports Triple Monitor; – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz; – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz; – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz; – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); – Supports HDR (High Dynamic Range) with HDMI 2.1; – Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports; – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; – Supports Microsoft® PlayReady

Слотове за разширение: AMD Ryzen series CPUs (Matisse); – 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*; AMD Ryzen series APUs (Renoir); – 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*; – 1 x PCI Express 3.0 x1 Slot

Съхранение: – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot ; – 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*

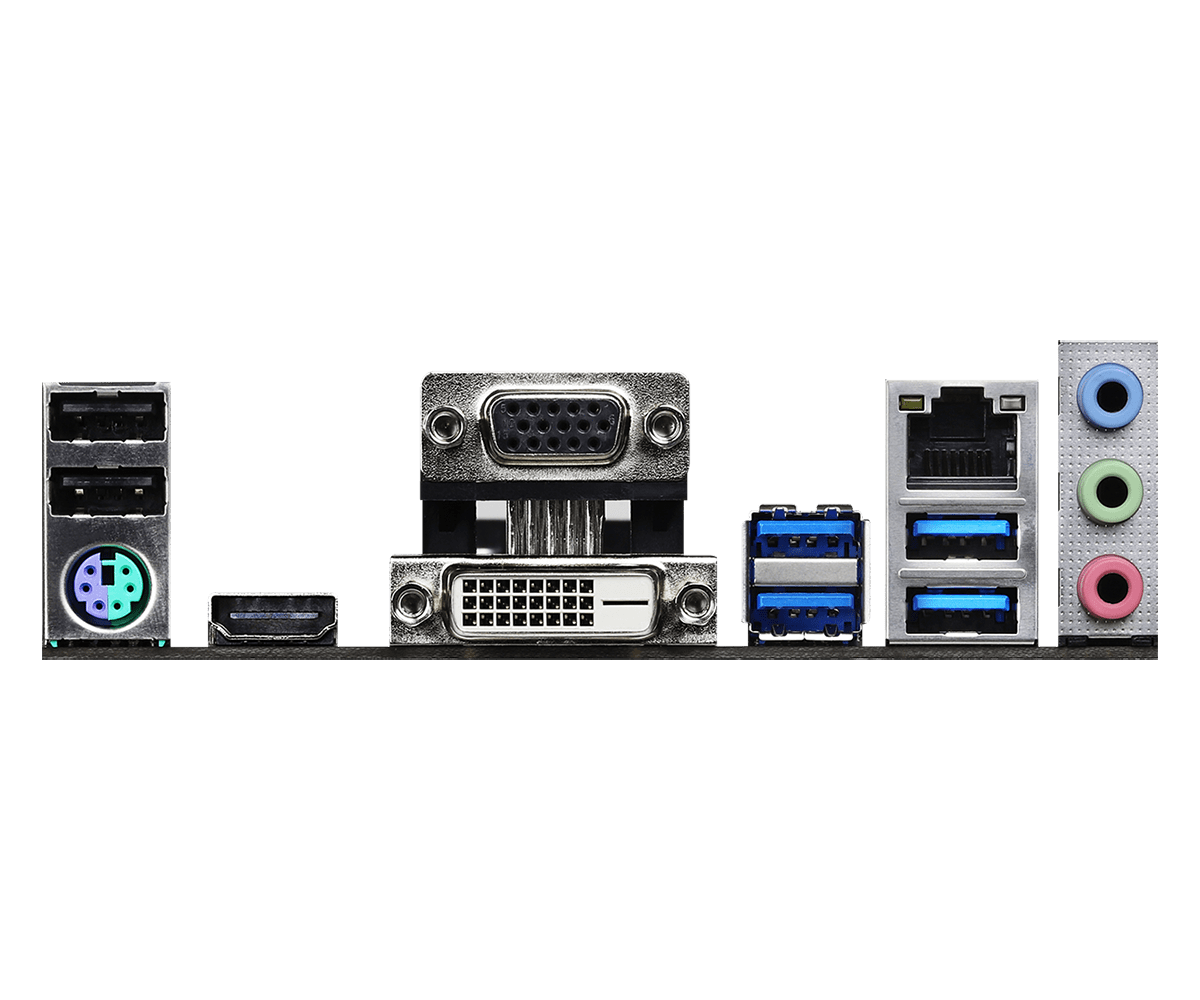

I/O: – 1 x PS/2 Mouse/Keyboard Port; – 1 x D-Sub Port; – 1 x DVI-D Port; – 1 x HDMI Port; – 2 x USB 2.0 Ports (Supports ESD Protection); – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); – HD Audio Jacks: Line in / Front Speaker / Microphone

Конектори: – 1 x SPI TPM Header; – 1 x COM Port Header; – 1 x Chassis Intrusion and Speaker Header; – 1 x CPU Fan Connector (4-pin)*; – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**; – 1 x 24 pin ATX Power Connector; – 1 x 4 pin 12V Power Connector; – 1 x Front Panel Audio Connector; – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Аудио: – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection

LAN: – PCIE x1 Gigabit LAN 10/100/1000 Mb/s; – Realtek RTL8111H; – Supports Wake-On-LAN; – Supports Lightning/ESD Protection; – Supports Energy Efficient Ethernet 802.3az; – Supports PXE

BIOS: – 256Mb AMI UEFI Legal BIOS with GUI support; – Supports „Plug and Play“; – ACPI 5.1 compliance wake up events; – Supports jumperfree; – SMBIOS 2.3 support; – CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Форма фактор: – Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm – Solid Capacitor design

операционна система: – Microsoft® Windows® 10 64-bit

Производител: ASROCK

Гаранция: 36 месеца
