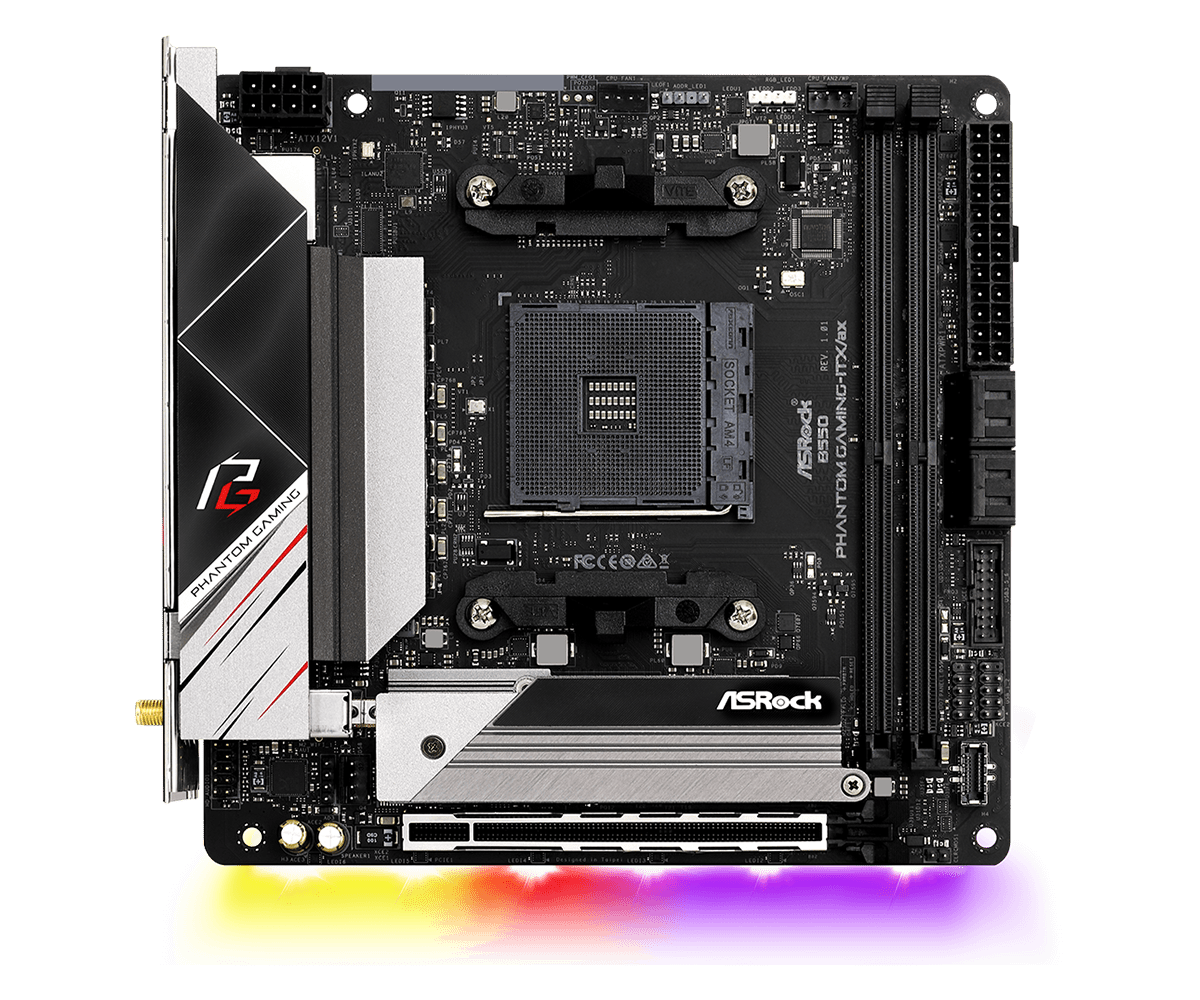

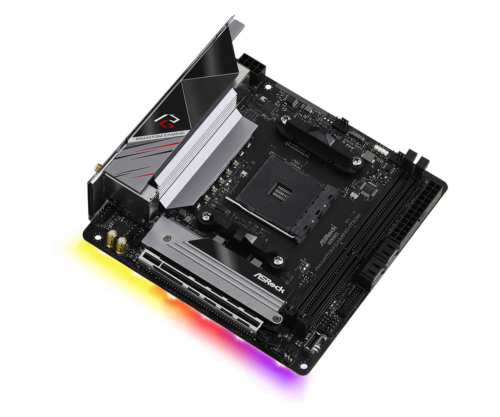

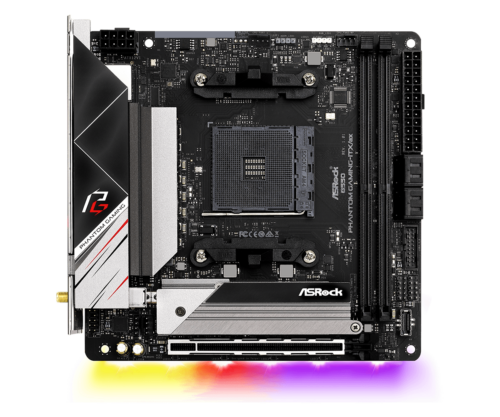

ASROCK B550 PHANTOM GAMING-ITX

CPU’s supported: – Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*; – Digi Power design; – 8 Power Phase design

Тип памет: – Dual Channel DDR4 Memory Technology; – 2 x DDR4 DIMM Slots; – AMD Ryzen series CPUs (Vermeer) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; – AMD Ryzen series CPUs (Matisse) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; – AMD Ryzen series APUs (Cezanne) support DDR4 5400+(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC)

Чипсет: – AMD B550

Графика: – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; – DirectX 12, Pixel Shader 5.0; – Shared memory default 2GB. Max Shared memory supports up to 16GB.**; – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz; – Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz; – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); – Supports HDR (High Dynamic Range) with HDMI 2.1; – Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***; – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; – Supports Microsoft® PlayReady

Слотове за разширение: AMD Ryzen series CPUs (Vermeer and Matisse); – 1 x PCI Express x16 Slot (PCIE1: Gen4x16 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); – 1 x PCI Express x16 Slot (PCIE1: Gen3x16 mode)*; AMD Ryzen series APUs (Picasso); – 1 x PCI Express x16 Slot (PCIE1: Gen3x8 mode)*; – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O); – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Съхранение: – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*; – 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

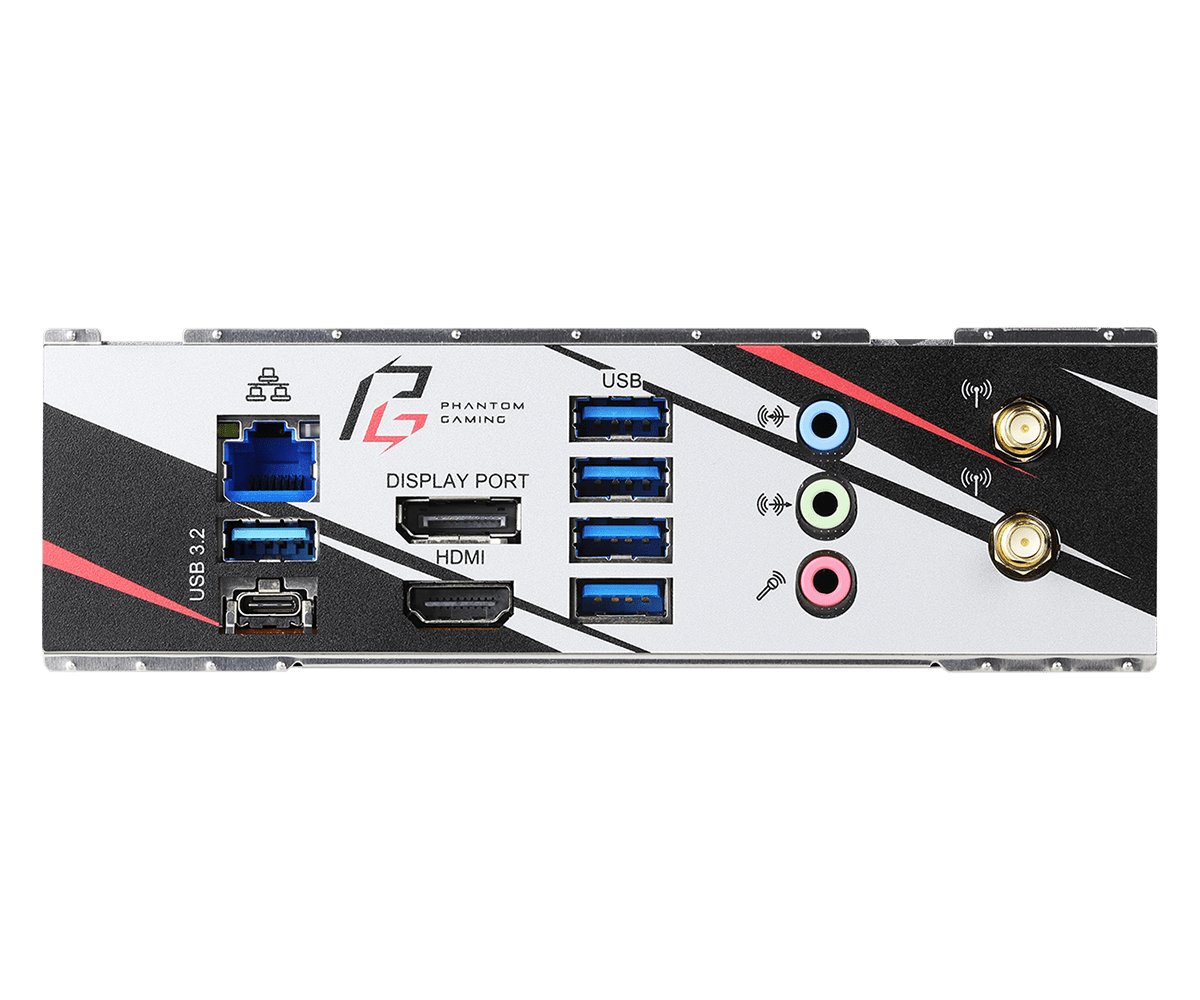

I/O: – 2 x Antenna Ports; – 1 x HDMI Port; – 1 x DisplayPort 1.4; – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); – HD Audio Jacks: Line in / Front Speaker / Microphone

Конектори: – 1 x RGB LED Header*; – 1 x Addressable LED Header**; – 1 x CPU Fan Connector (4-pin)***; – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****; – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); – 1 x Front Panel Audio Connector (15μ Gold Audio Connector); – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection); – 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)******

Аудио: – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); – Premium Blu-ray Audio support; – Supports Surge Protection; – 120dB SNR DAC with Differential Amplifier; – Pure Power-In; – Direct Drive Technology; – PCB Isolate Shielding; – Impedance Sensing on Rear Out port; – Individual PCB Layers for R/L Audio Channel; – 15μ Gold Audio Connector; – Nahimic Audio

LAN: – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; – GigaLAN Intel® I225V; – Supports Wake-On-LAN; – Supports Lightning/ESD Protection; – Supports Energy Efficient Ethernet 802.3az; – Supports PXE

BIOS: – 256Mb AMI UEFI Legal BIOS with GUI support; – Supports „Plug and Play“; – ACPI 5.1 compliance wake up events; – Supports jumperfree; – SMBIOS 2.3 support; – CPU, CPU VDDCR_SOC, DRAM, VPPM, Chipset 1.05V, 2.50V, +1.8V, VDDP Voltage Multi-adjustment

Форма фактор: – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; – 8 Layer PCB; – 2oz Copper PCB

операционна система: – Microsoft® Windows® 10 64-bit / 11 64-bit

Други: – Intel® 802.11ax WiFi Module; – Supports IEEE 802.11a/b/g/n/ax; – Supports Dual-Band (2.4/5 GHz); – Supports WiFi6 802.11ax (2.4Gbps); – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; – Supports Bluetooth 5.2 + High speed class II; – Supports MU-MIMO

Производител: ASROCK

Гаранция: 36 месеца
