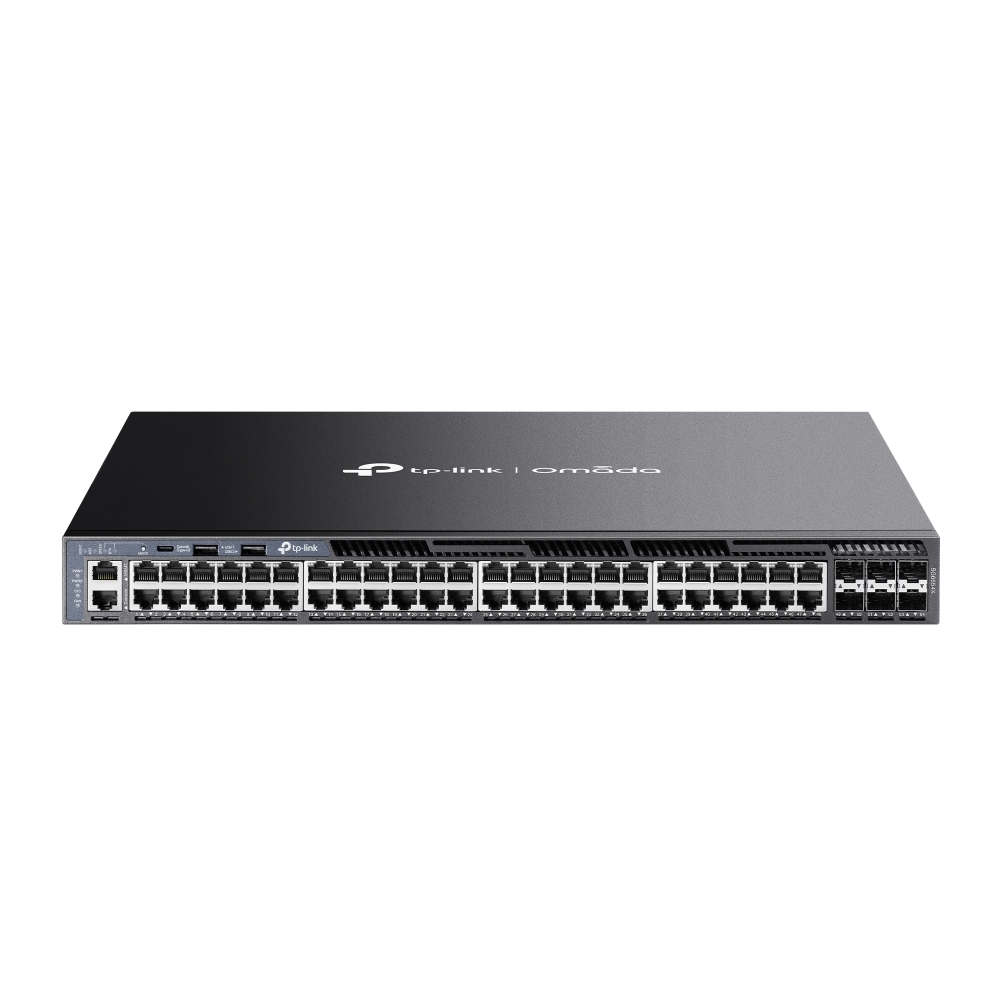

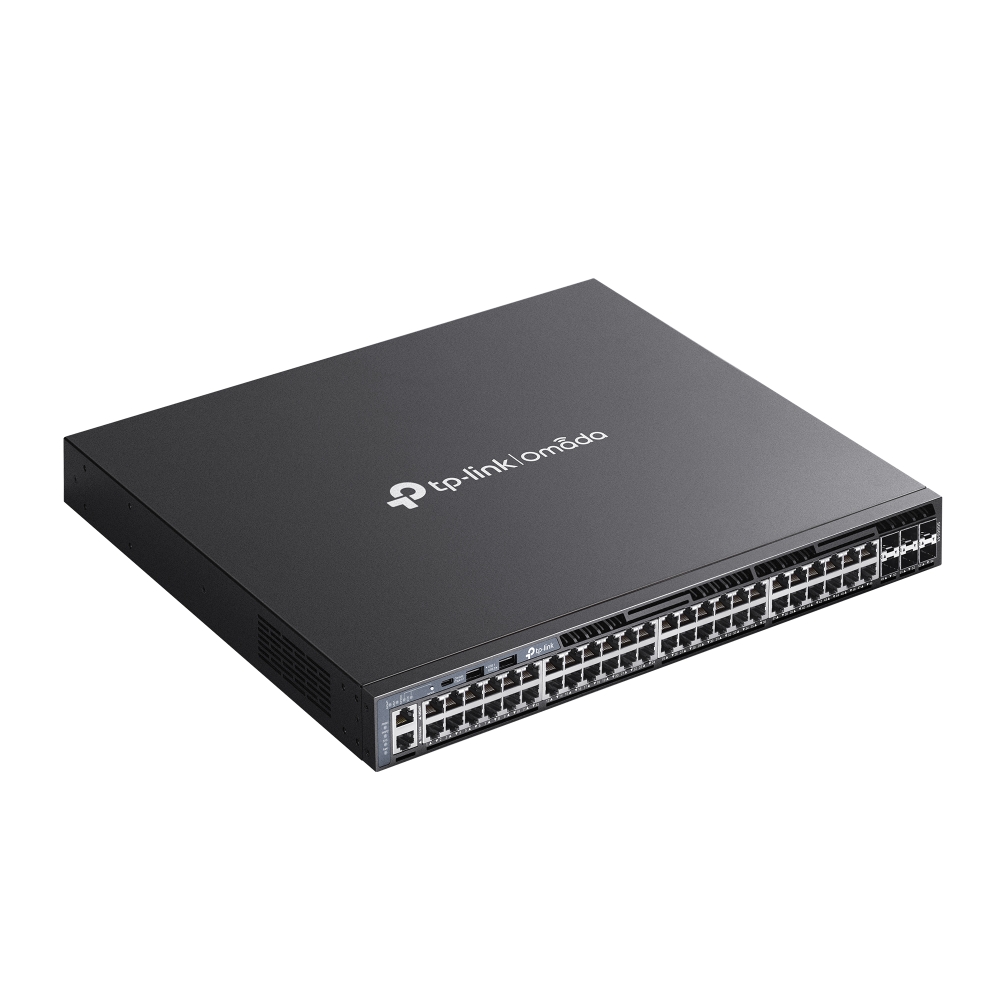

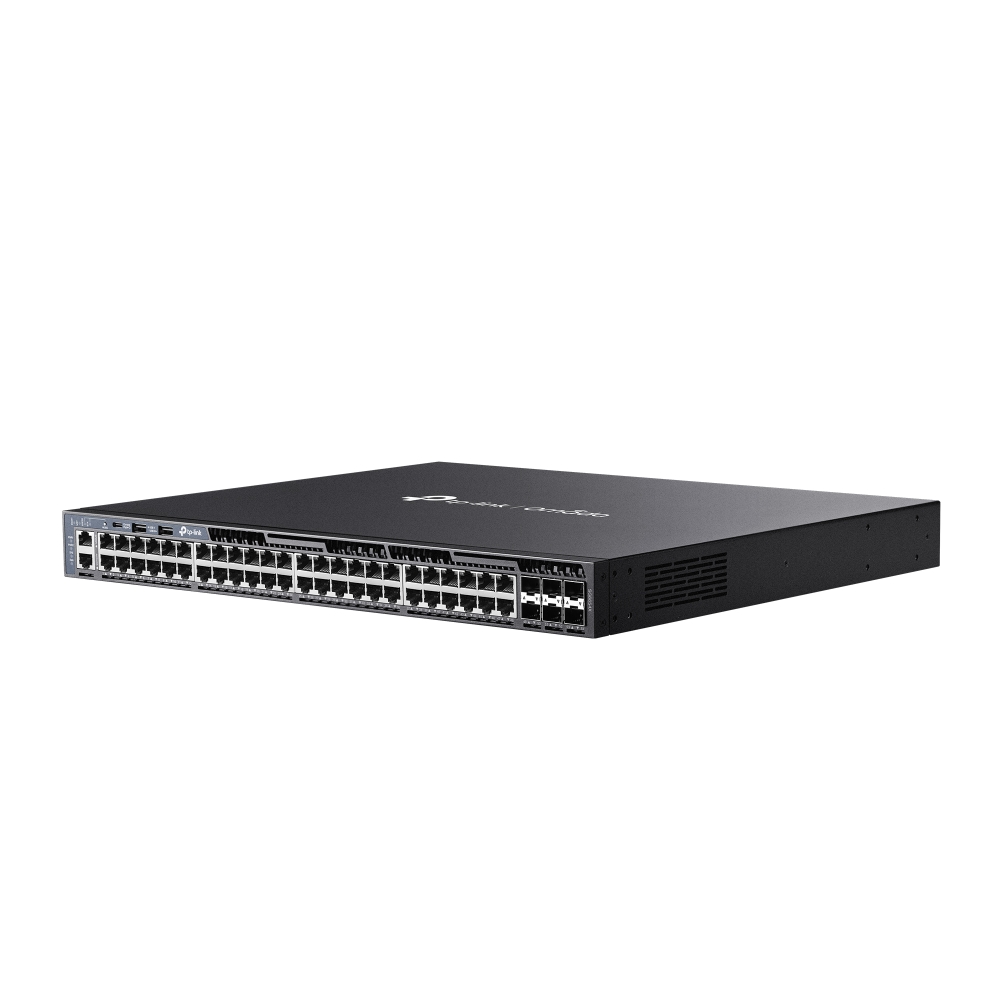

48-портов L3 управляем комутатор с 6 10G слота TP-Link Omada SG6654X

VLAN: Voice VLAN; Private VLAN; Multicast VLAN; VLAN VPN (QinQ): Max 256 entries; Max. 4K VLAN Groups; VLAN VPN (QinQ); Management VLAN; Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries; MAC VLAN Entries: 200; 802.1q Tagged VLAN; GVRP

ХИТ: N

Качество на обслужване: Voice VLAN; Smoother Performance; User-Defined OUI; Class of Service; Bandwidth Control; Action for Flows

Работна влажност: 10%~90% без кондензация

Интерфейс: 6× 10G SFP+ Slots; 48 10/100/1000Mbps RJ45 Ports; 2× USB 2.0 Ports; 1× USB Type-C Console Port; 1× RJ45 Management Port; 1× RJ45 Console Port

L3 Превключващи функции: VRRP: Version v2/v3, Max 64 groups; RIP: Version v1/v2, Max 8,190; Static Routing; Static ARP: 512 static entries; Relayed VLAN; Relayed Interface; OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097; Proxy ARP; Max 64 IP Pools; Max 1,024, IPv6: Max 512; Max 1,000 Manual Binding Entries; IP Interfaces:; IPv4: Max 256, IPv6: Max 256; Host Route Table: Max 6,100 entries; ECMP: 256 entries, max 32 ECMP Nexthops per Destination; Dynamic ARP: 7,680 dynamic entries; DHCP Server:; DHCP Server/Relay

L2 комутационни функции: MAC Address Table; Static Multicast IP; ERPS; Spanning Tree Protocol; IGMP Snooping; Supports 2,048 IGMP groups; Multicast Filtering; PIM-DM, PIM-SM (IPv4); Static Link Aggregation; Port-based and VLAN-based Loopback Detection; Multicast VLAN Registration (MVR); MLD Snooping; Multicast; RSPAN; Fast Leave; 802.3x Flow Control; L2 Multicast Table

Захранване: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)

Размери височина: 44 mm

Ethernet портове: 6× 10G SFP+ Slots; 48× 10/100/1000 Mbps RJ45 Ports; 1× RJ45 Console Port; 1× RJ45 Management Port

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Размери ширина: 440 mm

Софтуерни функции: Quality of Service; L3 Features; L2 and L2+ Features; VLAN; Advanced Features; Security

Влажност на съхранение: 10%~90% без кондензация

Размери дълбочина: 380 mm

Вид на монтаж: Rackmount

Работна температура: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters; -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters; -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

Критерии за валидност на гаранцията: Гаранционна карта/Сериен номер

Марка: TP-LINK

48-портов L3 управляем комутатор с 6 10G слота TP-Link Omada SG6654X

Производител: TP-LINK

Гаранция: 60 месеца
