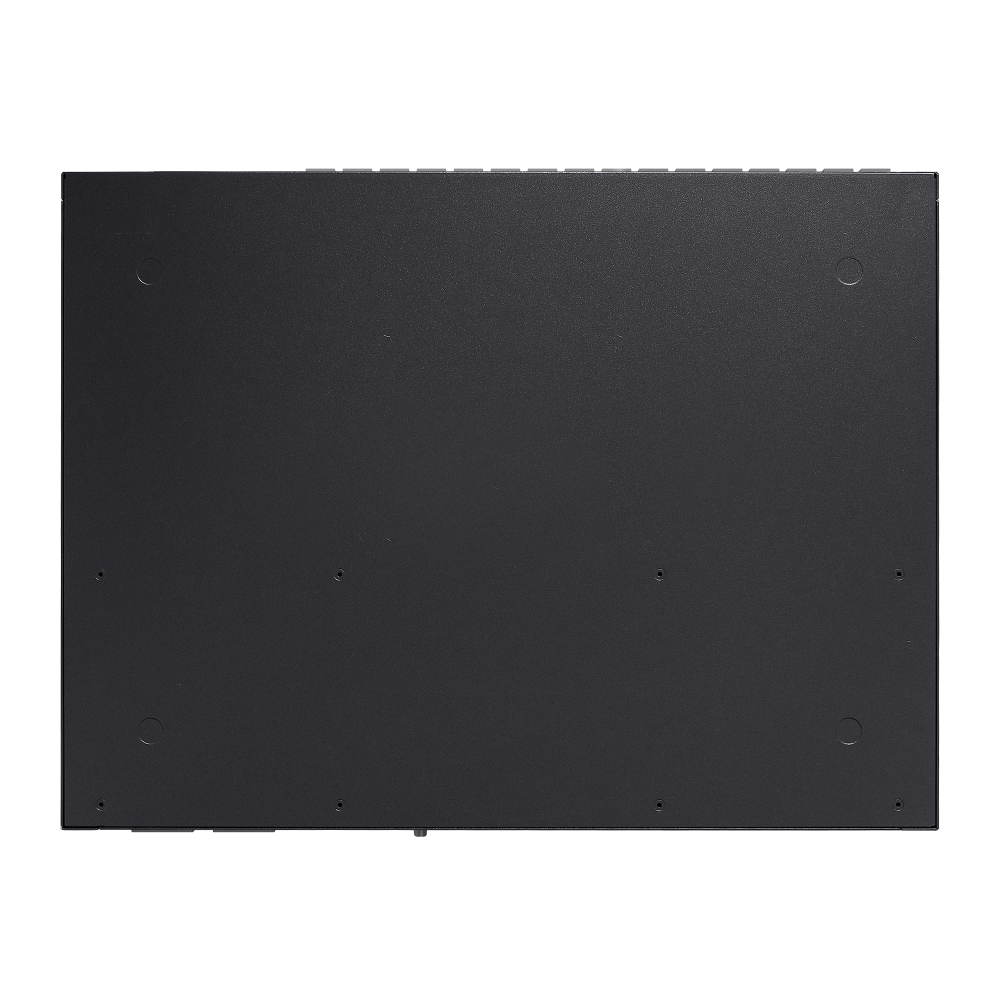

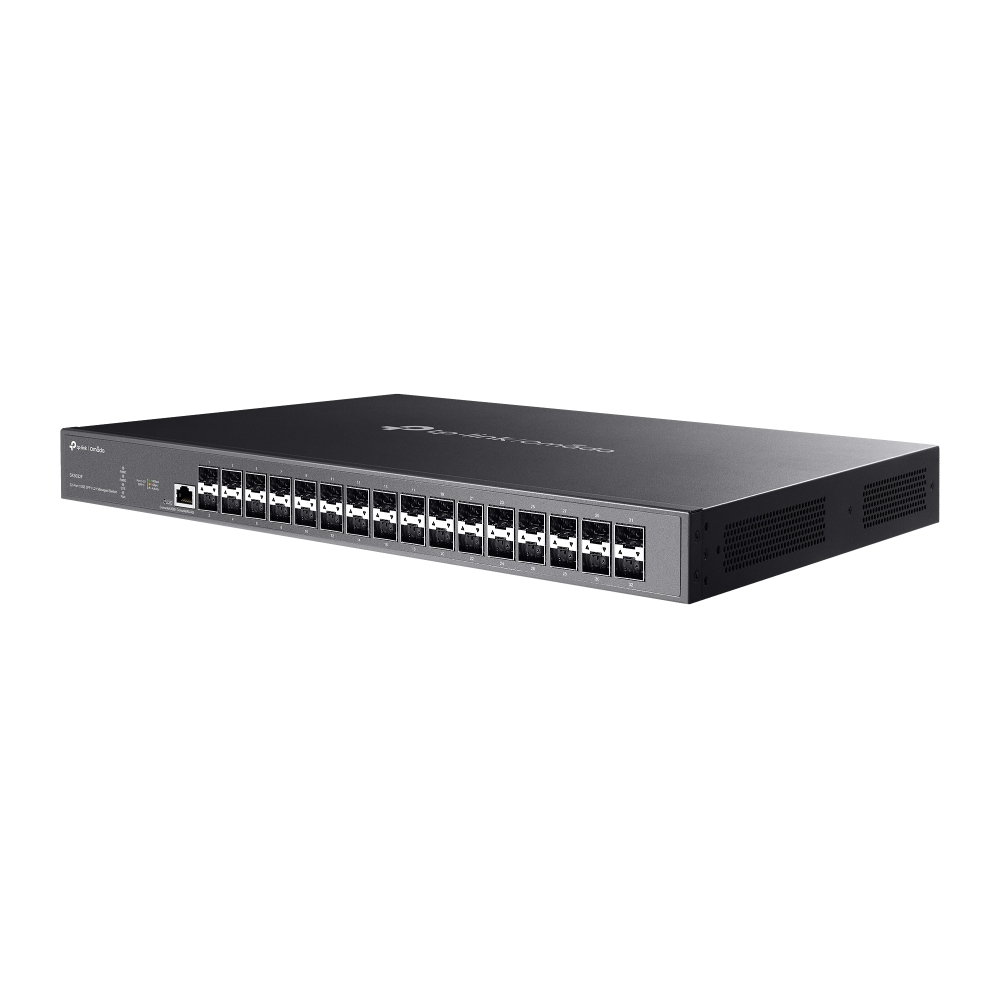

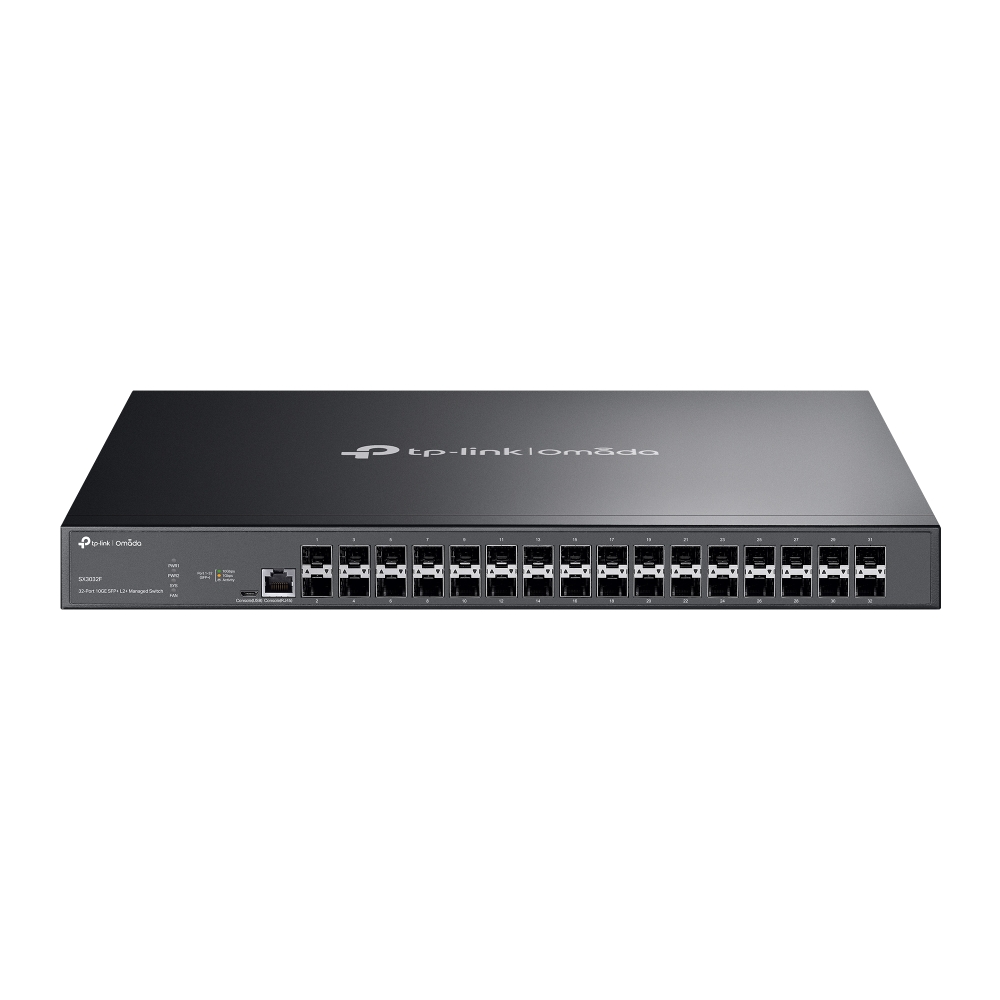

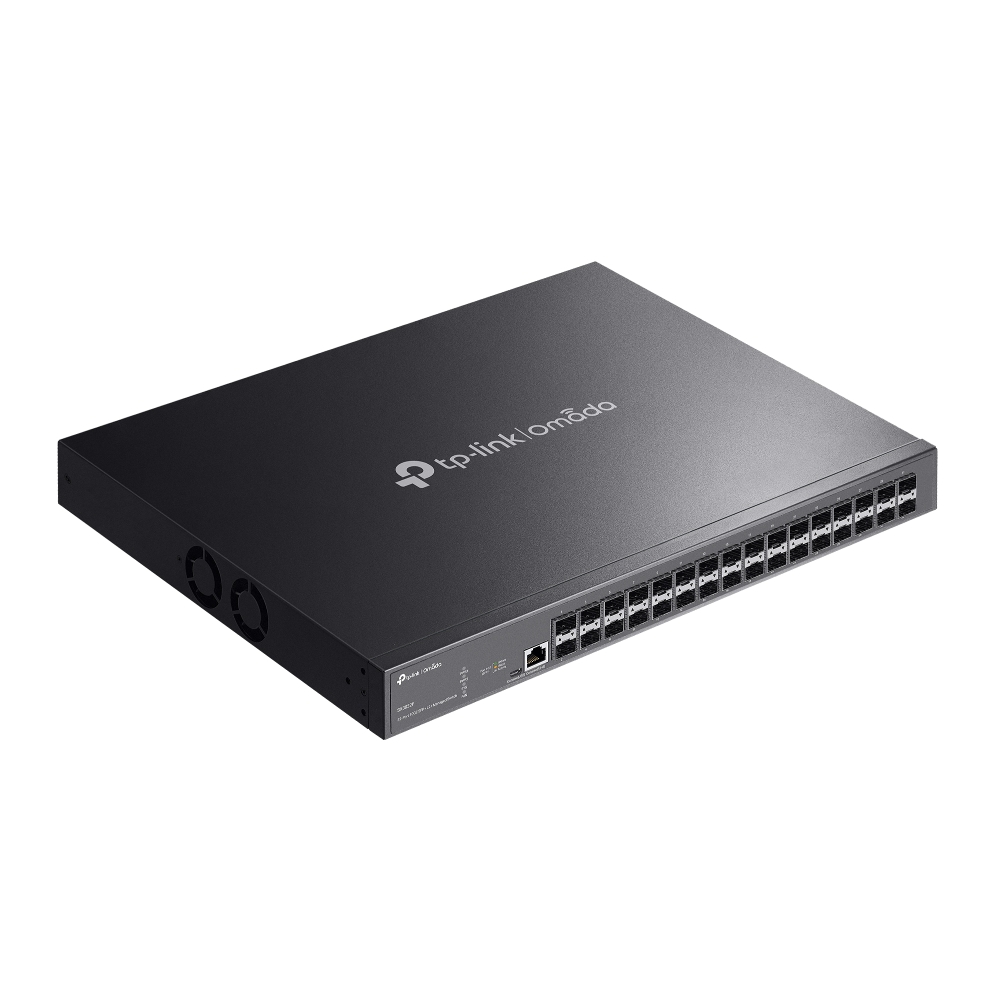

32-портов 10GE SFP+ L2+ управляем комутатор TP-Link Omada SX3032F

Експлоатационни качества: MAC Address Table 32 K; Packet Buffer Memory 24 Mbit; Packet Forwarding Rate 240 Mpps; Switching Capacity 640 Gbps

Управление/Management: Web-based GUI; Web UI; System Log; SNTP; SDM Template; RMON (1,2,3,9 groups); EEE; Dual Image, Dual Configuration; DHCP/BOOTP Client; SNMP Trap/Inform; DHCP AutoInstall; Command Line Interface (CLI) through telnet; 802.1ab LLDP/LLDP-MED

Съвместимост с мрежови стандарти: IEEE 802.3x Flow Control; IEEE 802.1p; IEEE 802.1x; IEEE 802.3ad; IEEE 802.1d; IEEE 802.1w

Софтуерни функции: Port Mirroring; Password Recovery*; Omada Software Controller; Omada Hardware Controller (OC300); IEEE 802.1X: Port-Based Authentication with Guest VLAN Support; Omada Cloud-Based Controlle; Omada Hardware Controller (OC200); CPU Monitoring; IEEE 802.3ad: Link Aggregation; IEEE 802.3x: Flow Control; Omada App

Сигурност: Static/Dynamic Port Security; IP-MAC-Port Binding; IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN; Secure web management through HTTPS with SSLv3/TLS1.0; DoS Defence; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; DHCP Snooping; Port isolation; Broadcast/Multicast/Unknown-unicast Storm Control; IPv4 Source Guard; ARP Inspection; AAA; IP/Port/MAC based access control

Мрежови характеристики: Switching Capacity 640 Gbps

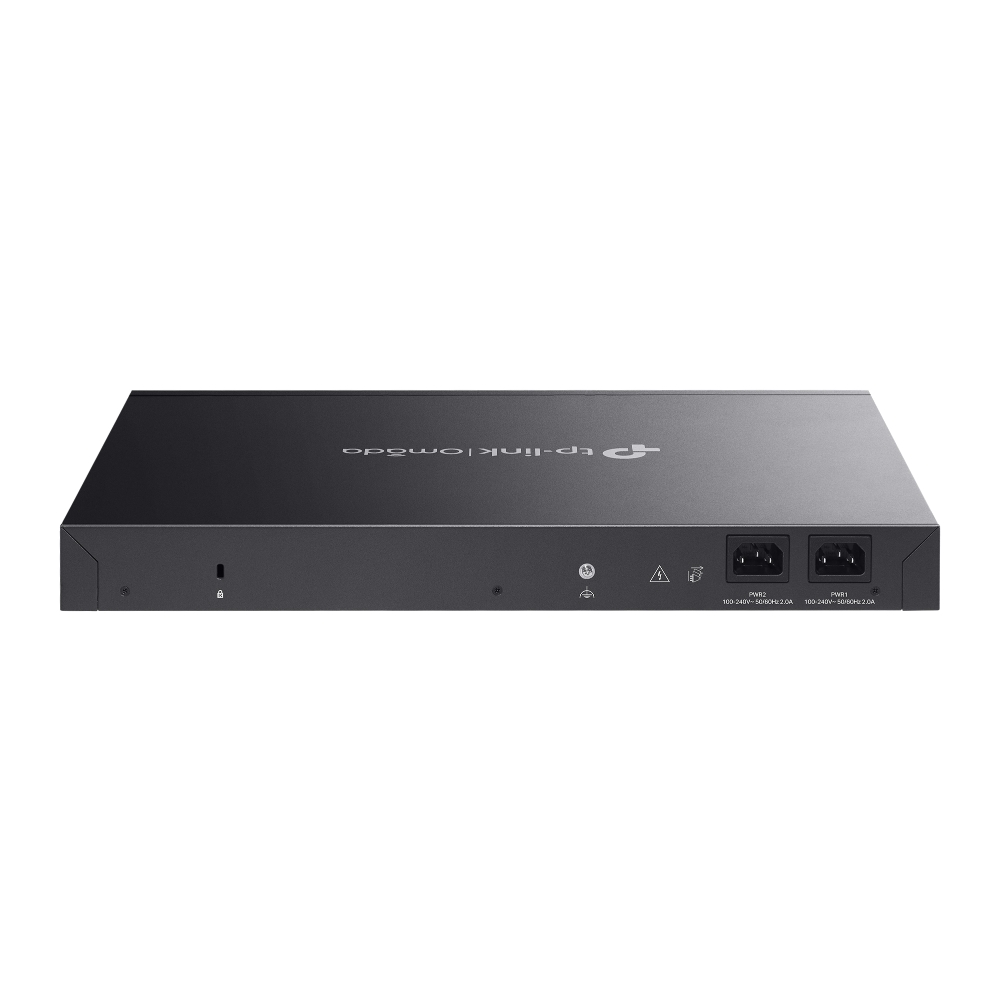

Захранване: 100-240 V AC~50/60 Hz; 1+1 Redundant Power Supply (internal fixed)

Интерфейс: 32× 1/10Gbps SFP+ Slots; 1x Micro-USB Console Port; 1 Console Port

Размери ширина: 440 mm

Тегло, кг.: 4.5 кг

Системни изисквания: Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8/8.1, MAC® OS, NetWare®, UNIX® or Linux.

Сертификати: CE, FCC, RoHS

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Качество на обслужване: Action for Flows; Support 802.1p CoS/DSCP priority; Bandwidth Control; Smoother Performance; Support 8 priority queues; Cable Diagnostics; Queue scheduling: SP, WRR, SP+WRR; Rate Limit

L3 Превключващи функции: Static ARP; Proxy ARP; DHCP Server/Relay; Gratuitous ARP; 16 IPv4/IPv6 Interfaces; DHCP L2 Relay; Static Routing

IPv6 приложения: Tracert6; IPv6 SNMP; Telnet(v6); Ping6; DHCPv6 Client; IPv6 ACL*; IPv6 TFTP; Http/Https; IPv6 SSL; IPv6 Interface*; IPv6 SSH

IPv6: TCPv6/UDPv6; IPv6 neighbor discovery (ND); Static IPv6 Routing; IPv6 Dual IPv4/IPv6; Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; Multicast Listener Discovery (MLD) Snooping

L2 комутационни функции: Multicast Filtering: 256 profiles and 16 entries per profile; IGMP Snooping V1/V2/V3; MVR; MLD v1/v2 Snooping; 802.3x Flow Control; IGMP Authentication; Cable Diagnostics; CPU Mirroring; 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group); Link Aggregation; IGMP Snooping Querier; Static Link Aggregation; Port Mirroring; Static Routing

VLAN: Voice VLAN; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Private VLAN; Max. 4K VLAN Groups; GARP/GVRP; 802.1q Tagged VLAN; VLAN Group; Selective QinQ; VLAN VPN (QinQ); MAC VLAN: 30 Entries

Тип: Управляем; Omada

Филтър Swich скорост: Switching capacity: 320 Gbps; 10G (100Mbps/1G/2.5G/5G/10G) RJ45; 10 Gb SFP+ modules

Размери височина: 44 mm

Размери дълбочина: 330 mm

Цвят: Черен

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Марка: TP-LINK

EAN: 4895252504477

Ethernet портове: 640 Gbps

Влажност на съхранение: 5%~90% без кондензация

В наличност: LIMITED STOCK

Работна температура: 0℃~45℃ (32–113 ℉)

VPN: VLAN VPN (QinQ)

Охлаждане: Активно

Приложение: Rackmount

Вид на монтаж: Rackmount

Работна влажност: 10%~90% без кондензация

32-портов 10GE SFP+ L2+ управляем комутатор TP-Link Omada SX3032F

Производител: TP-LINK

Гаранция: 60 месеца
