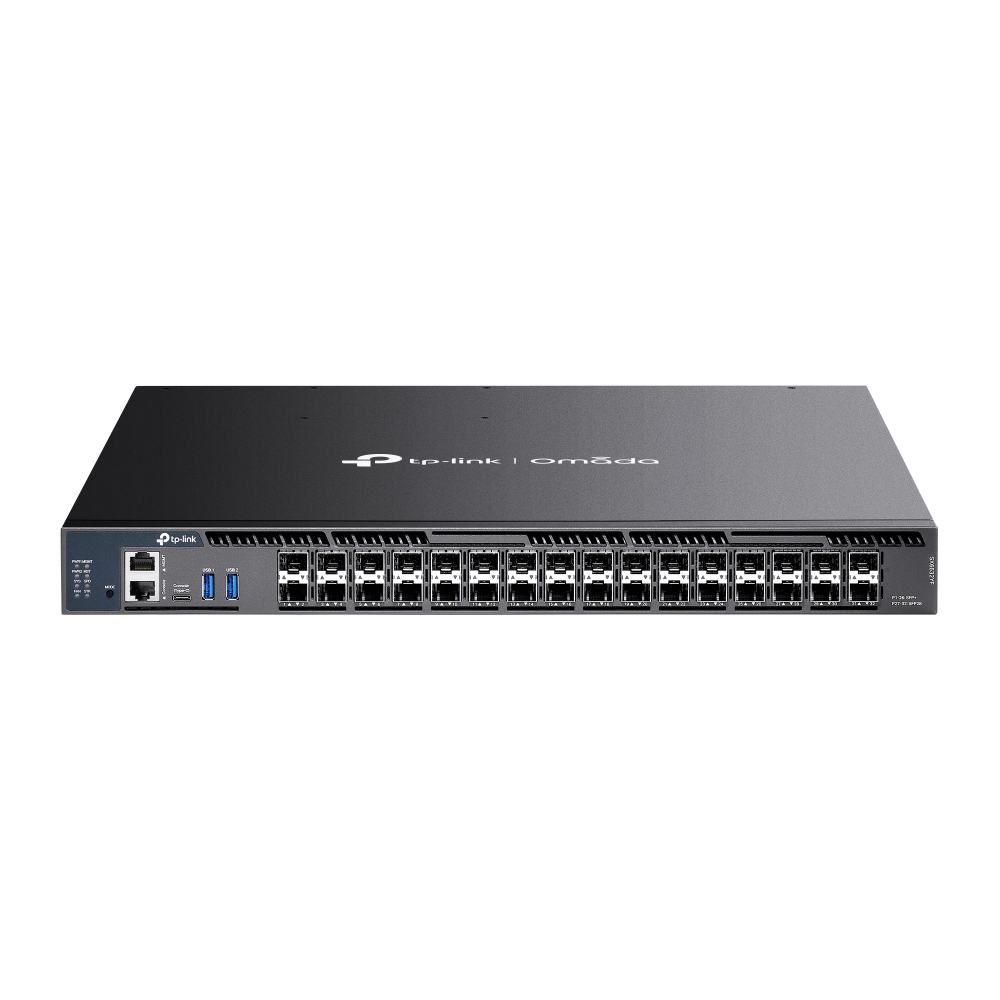

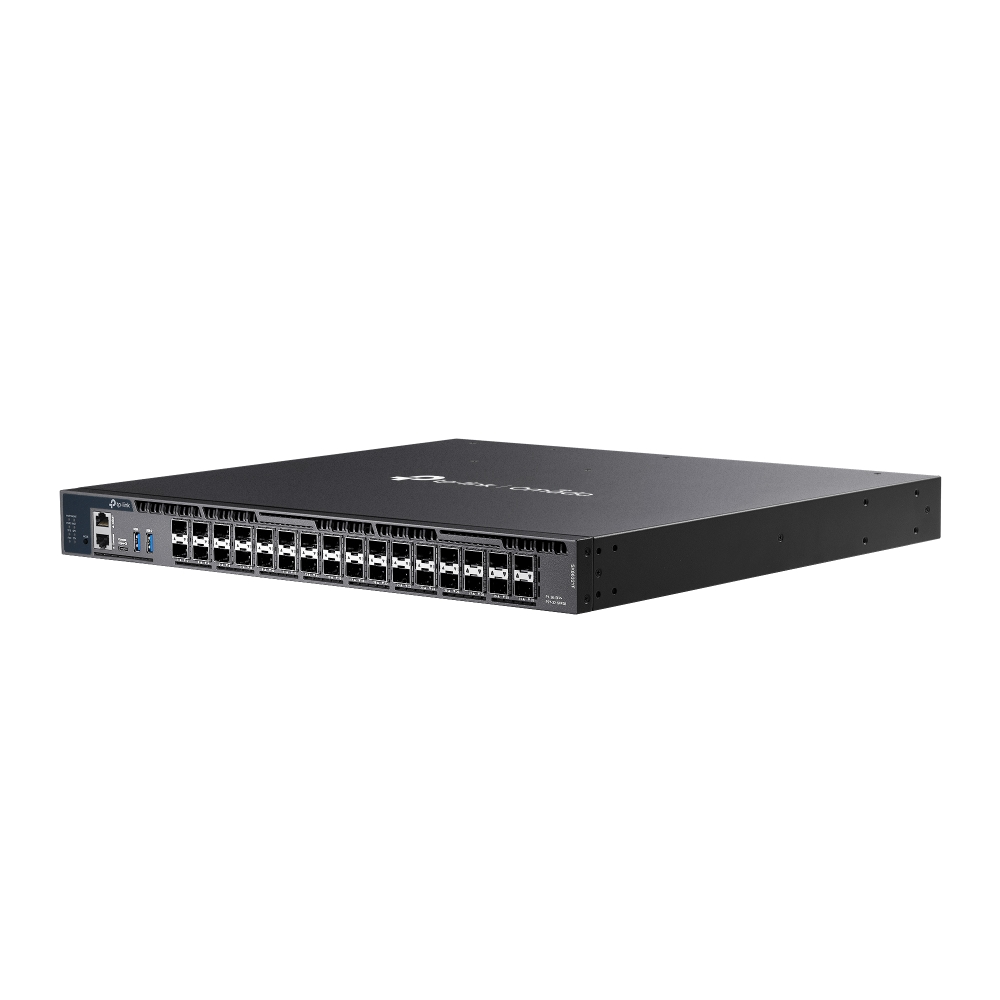

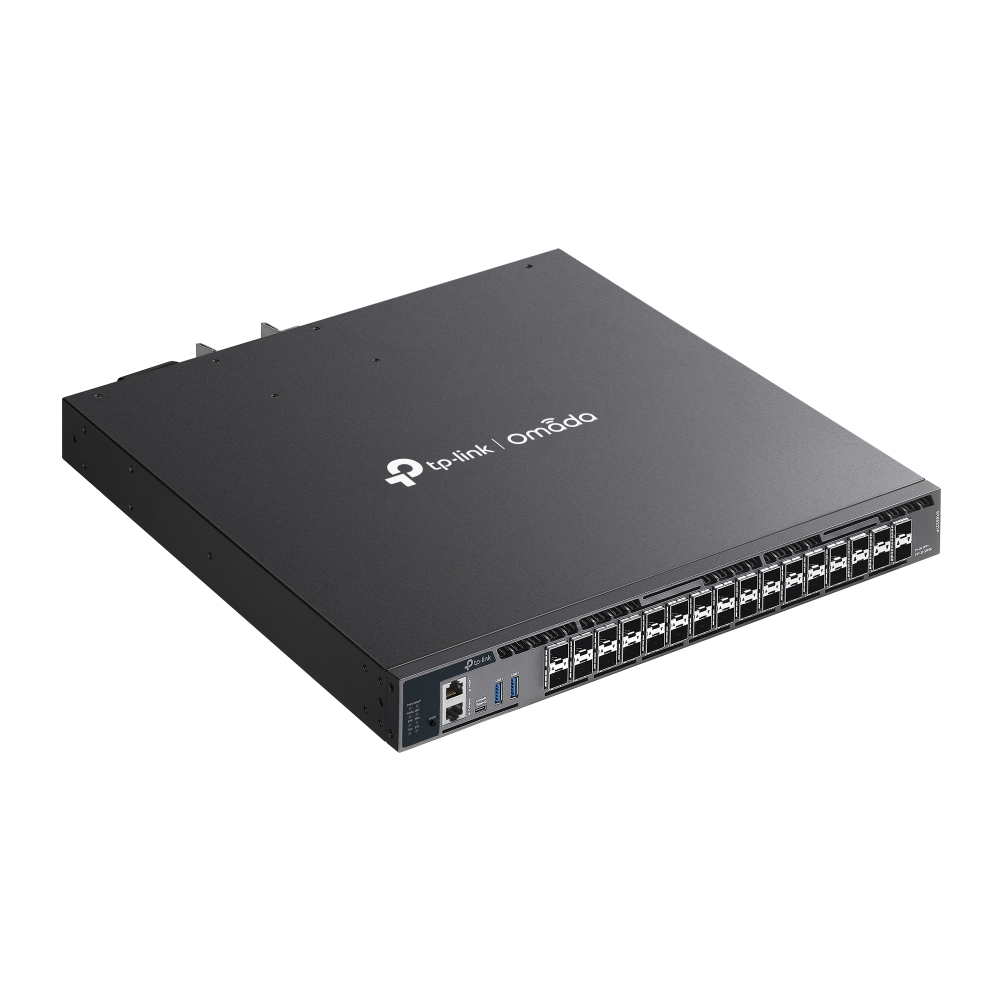

26-портов 10G модулен L3 управляван агрегационен комутатор с 6 25G слота TP-Link Omada SX6632YF

Софтуерни функции: Omada App; Omada Hardware Controller (OC300); Omada Software Controller; IEEE 802.3ad: Link Aggregation; Port Mirroring; Omada Hardware Controller (OC200); CPU Monitoring; IEEE 802.1X: Port-Based Authentication with Guest VLAN Support; IEEE 802.3x: Flow Control; Password Recovery*; Omada Cloud-Based Controlle

Тип: Управляем; Omada

Съвместимост с мрежови стандарти: IEEE 802.3x Flow Control; IEEE 802.3ad; IEEE 802.1p; IEEE 802.1w; IEEE 802.1d; IEEE 802.1x

Цвят: Черен

L2 комутационни функции: 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group); Static Link Aggregation; Static Routing; IGMP Snooping V1/V2/V3; Port Mirroring; IGMP Authentication; Cable Diagnostics; 802.3x Flow Control; Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP; IGMP Snooping Querier; Multicast Filtering: 256 profiles and 16 entries per profile; CPU Mirroring; Link Aggregation

VLAN: 802.1q Tagged VLAN; VLAN Group; Max. 4K VLAN Groups; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; VLAN VPN (QinQ); MAC VLAN: 30 Entries; Voice VLAN; Private VLAN; GARP/GVRP; Selective QinQ

Сигурност: IP-MAC-Port Binding; IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN; Static/Dynamic Port Security; DoS Defence; Secure web management through HTTPS with SSLv3/TLS1.0; Broadcast/Multicast/Unknown-unicast Storm Control; DHCP Snooping; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; Port isolation; ARP Inspection; AAA; IPv4 Source Guard; IP/Port/MAC based access control

Управление/Management: DHCP AutoInstall; Web UI; Web-based GUI; EEE; System Log; 802.1ab LLDP/LLDP-MED; Command Line Interface (CLI) through telnet; Dual Image, Dual Configuration; SNTP; RMON (1,2,3,9 groups); SDM Template; SNMP Trap/Inform; DHCP/BOOTP Client

Приложение: Rackmount

Сертификати: CE, FCC, RoHS

Интерфейс: 1× RJ45 Console Port; 1× RJ45 Management Port; 26× 1/10G SFP+ Slots; 1× USB Type C Console Port; 6× 10/25G SFP28 Slots; 2× USB 3.0 Ports

Експлоатационни качества: Packet Forwarding Rate 610.1 Mpps; MAC Address Table 128 K; Switching Capacity 820 Gbps; Packet Buffer Memory 8 MB

В наличност: LIMITED STOCK

Работна температура: 0℃~45℃ (32–113 ℉)

L3 Превключващи функции: Gratuitous ARP; Static Routing; Host Route Table: Max 15,300 entries; DHCP L2 Relay; IPv4: Max 2,048, IPv6: Max 1,024; IPv4: Max 256, IPv6: Max 256; DHCP Server/Relay; Proxy ARP; IP Interfaces:; Static ARP; RIP: Version v1/v2, Max 102,400 – RIPng: Max 51,200

Размери дълбочина: 380 mm

Работна влажност: 10%~90% без кондензация

VPN: VLAN VPN (QinQ)

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Размери ширина: 440 mm

Филтър Swich скорост: 10 Gb SFP+ modules; 10G (100Mbps/1G/2.5G/5G/10G) RJ45; Switching capacity: 320 Gbps

Захранване: 100-240 V AC~50/60 Hz

Размери височина: 44 mm

Охлаждане: Активно

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Качество на обслужване: Support 8 priority queues; Action for Flows; Smoother Performance; Cable Diagnostics; Rate Limit; Queue scheduling: SP, WRR, SP+WRR; Bandwidth Control; Support 802.1p CoS/DSCP priority

Тегло, кг.: 4.5 кг

Марка: TP-LINK

Влажност на съхранение: 5%~90% без кондензация

Вид на монтаж: Rackmount

26-портов 10G модулен L3 управляван агрегационен комутатор с 6 25G слота TP-Link Omada SX6632YF

Версия: 1.0

Производител: TP-LINK

Гаранция: 60 месеца
