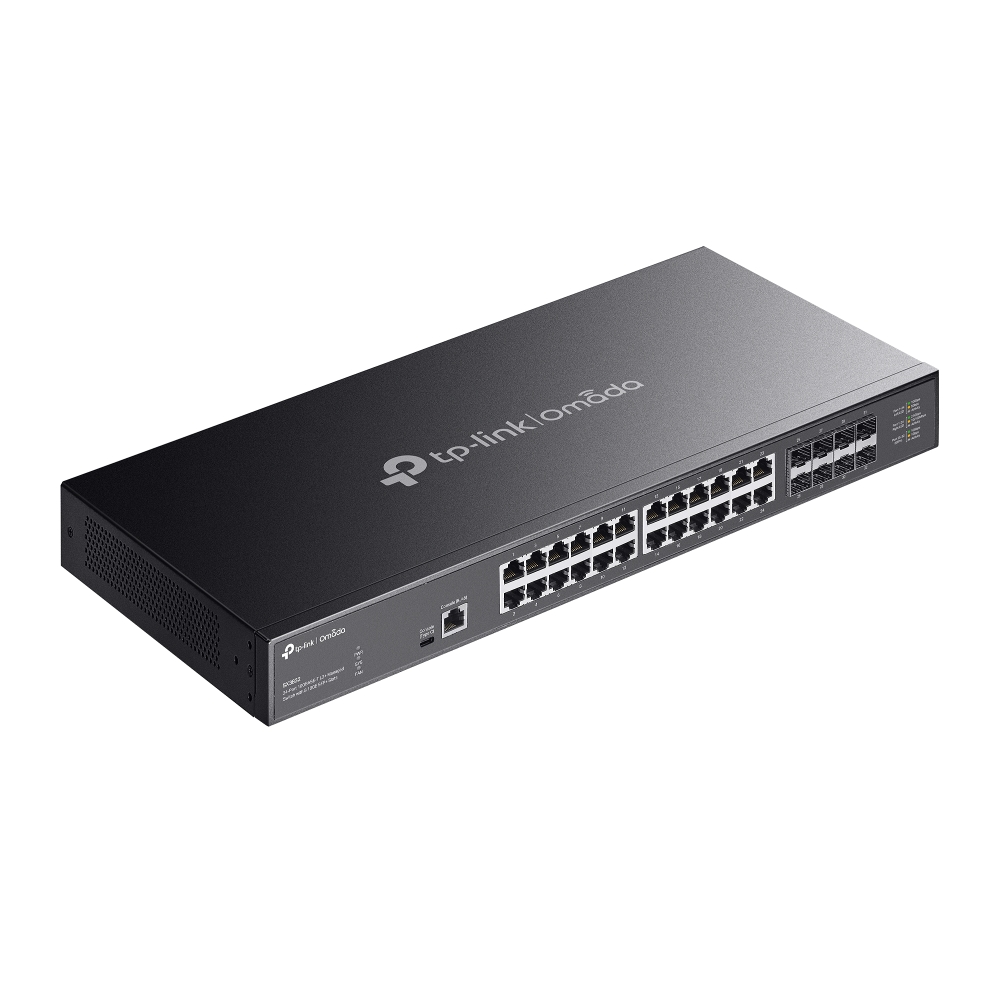

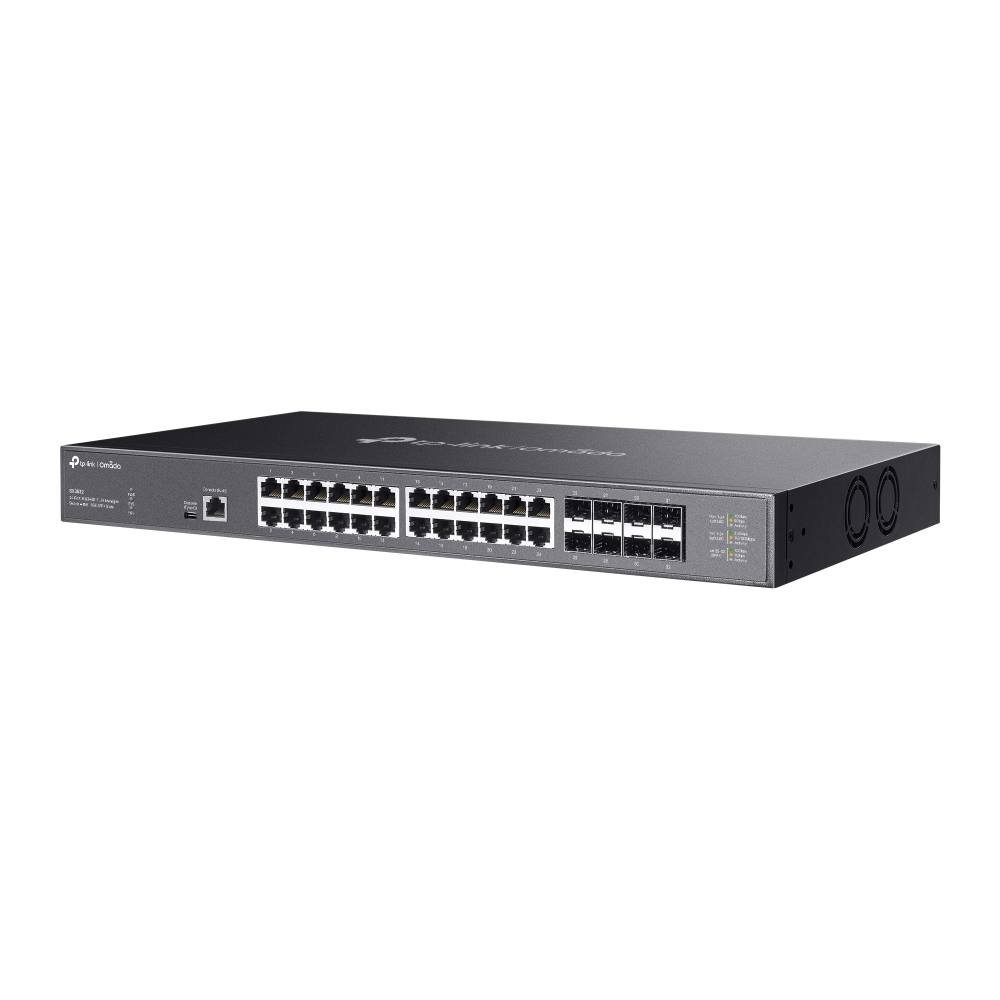

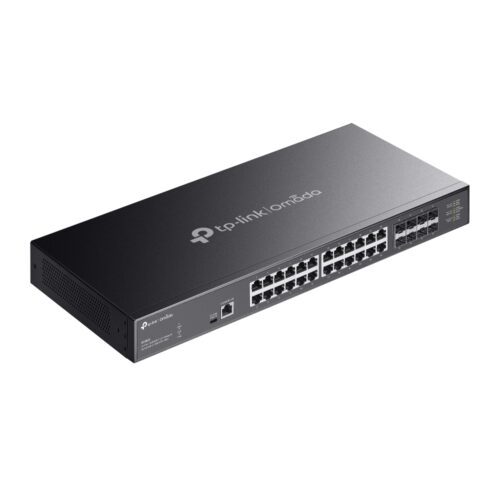

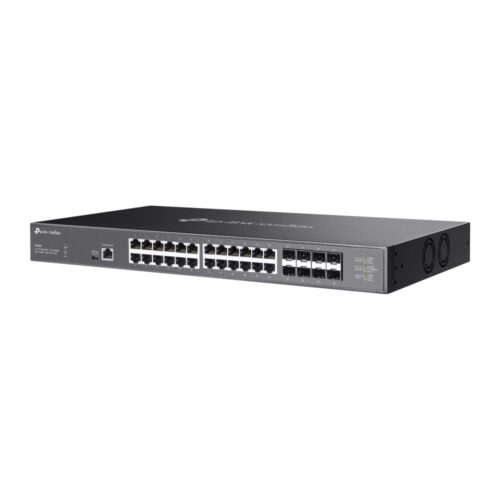

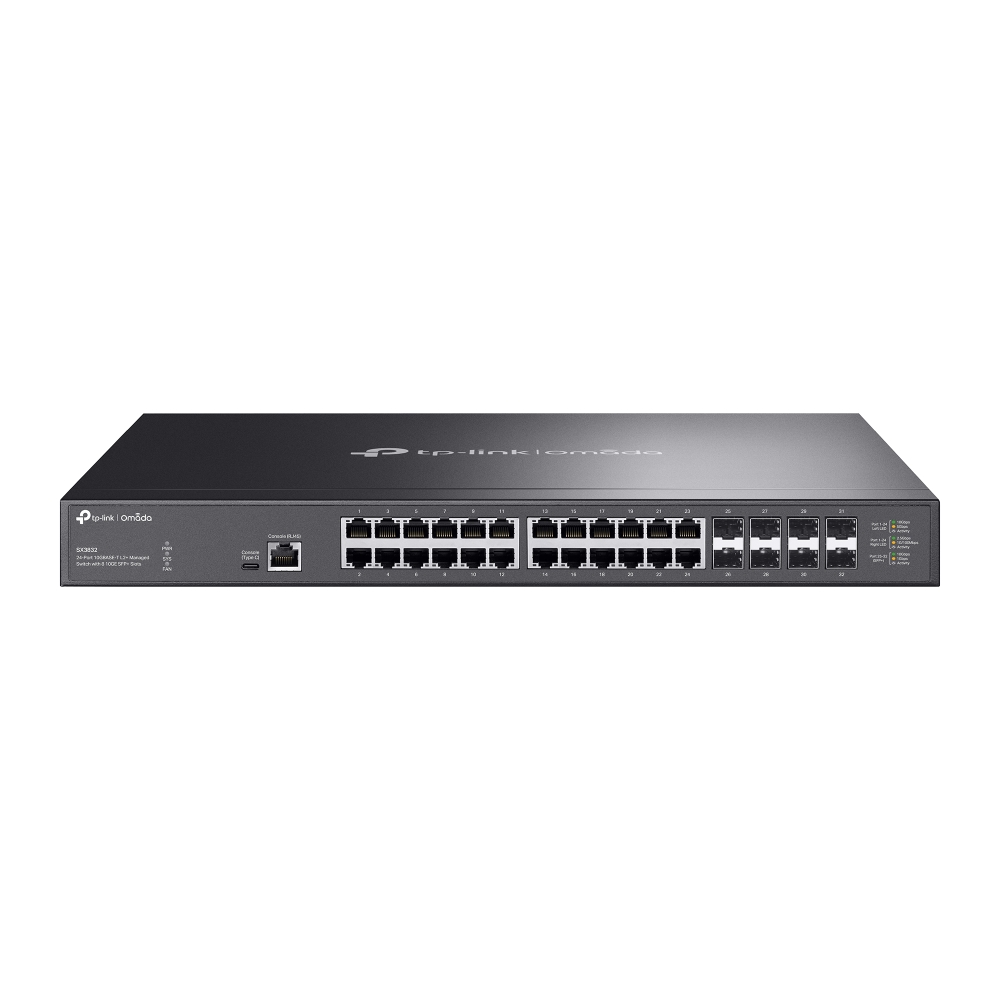

24-портов 10GBASE-T L2+ управляем комутатор с 8 10GE SFP+ слота TP-Link Omada SX3832

Управление/Management: System Log; DHCP AutoInstall; Dual Image, Dual Configuration; Web UI; DHCP/BOOTP Client; EEE; SNTP; SDM Template; Web-based GUI; Command Line Interface (CLI) through telnet; 802.1ab LLDP/LLDP-MED; RMON (1,2,3,9 groups); SNMP Trap/Inform

VLAN: Max. 4K VLAN Groups; 802.1q Tagged VLAN; GARP/GVRP; Voice VLAN; Private VLAN; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Selective QinQ; VLAN VPN (QinQ); VLAN Group; MAC VLAN: 256 Entries

Експлоатационни качества: MAC Address Table 32 K; Switching Capacity 640 Gbps; Packet Buffer Memory 24 Mbit; Packet Forwarding Rate 240 Mpps

Сигурност: DHCP Snooping; IPv4 Source Guard; ARP Inspection; Port isolation; Static/Dynamic Port Security; Broadcast/Multicast/Unknown-unicast Storm Control; IP-MAC-Port Binding; Secure web management through HTTPS with SSLv3/TLS1.0; IP/Port/MAC based access control; AAA; Access Control List • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL; IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN; DoS Defence; Secure Command Line Interface (CLI) management with SSHv1/SSHv2

ХИТ: N

L2 комутационни функции: MVR; 802.3x Flow Control; Cable Diagnostics; 128 IP Interfaces: Support IPv4/IPv6 Interface; IGMP Snooping V1/V2/V3; Port Mirroring; Static Routing; Proxy ARP; 510 ARP Entries; Static Link Aggregation; IGMP Snooping Querier; Link Aggregation; 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group); IGMP Authentication; MLD v1/v2 Snooping; CPU Mirroring; Multicast Filtering: 256 profiles and 16 entries per profile

L3 Превключващи функции: Static ARP; Proxy ARP; DHCP Server/Relay; Gratuitous ARP; 16 IPv4/IPv6 Interfaces; DHCP L2 Relay; Static Routing

IPv6 приложения: Http/Https; Ping6; Telnet(v6); IPv6 TFTP; IPv6 ACL*; DHCPv6 Client; IPv6 Interface*; IPv6 SNMP; IPv6 SSH; Tracert6; IPv6 SSL

Качество на обслужване: Rate Limit; Smoother Performance; Support 802.1p CoS/DSCP priority; Cable Diagnostics; Queue scheduling: SP, WRR, SP+WRR; Action for Flows; Bandwidth Control; Support 8 priority queues

Ethernet портове: 8× 1/10G SFP+ Slots; 1× RJ45 Console Port; 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

Охлаждане: Активно

IPv6: IPv6 ACL; Internet Control Message Protocol (ICMP) version 6; Path maximum transmission unit (MTU) discovery; Static IPv6 Routing; IPv6 Dual IPv4/IPv6; TCPv6/UDPv6; IPv6 neighbor discovery (ND); Multicast Listener Discovery (MLD) Snooping

Филтър Swich скорост: Switching capacity: 320 Gbps; 10 Gb SFP+ modules; 10G (100Mbps/1G/2.5G/5G/10G) RJ45

Интерфейс: 1× USB Type C Console Port; 1× RJ45 Console Port; 8× 1/10G SFP+ Slots; 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

Софтуерни функции: IEEE 802.3ad: Link Aggregation; Password Recovery*; Omada Software Controller; Omada App; IEEE 802.3x: Flow Control; Omada Hardware Controller (OC300); CPU Monitoring; Port Mirroring; Omada Hardware Controller (OC200); Omada Cloud-Based Controlle; IEEE 802.1X: Port-Based Authentication with Guest VLAN Support

Тегло, кг.: 4.5 кг

Тип: Omada; Управляем

Сертификати: CE, FCC, RoHS

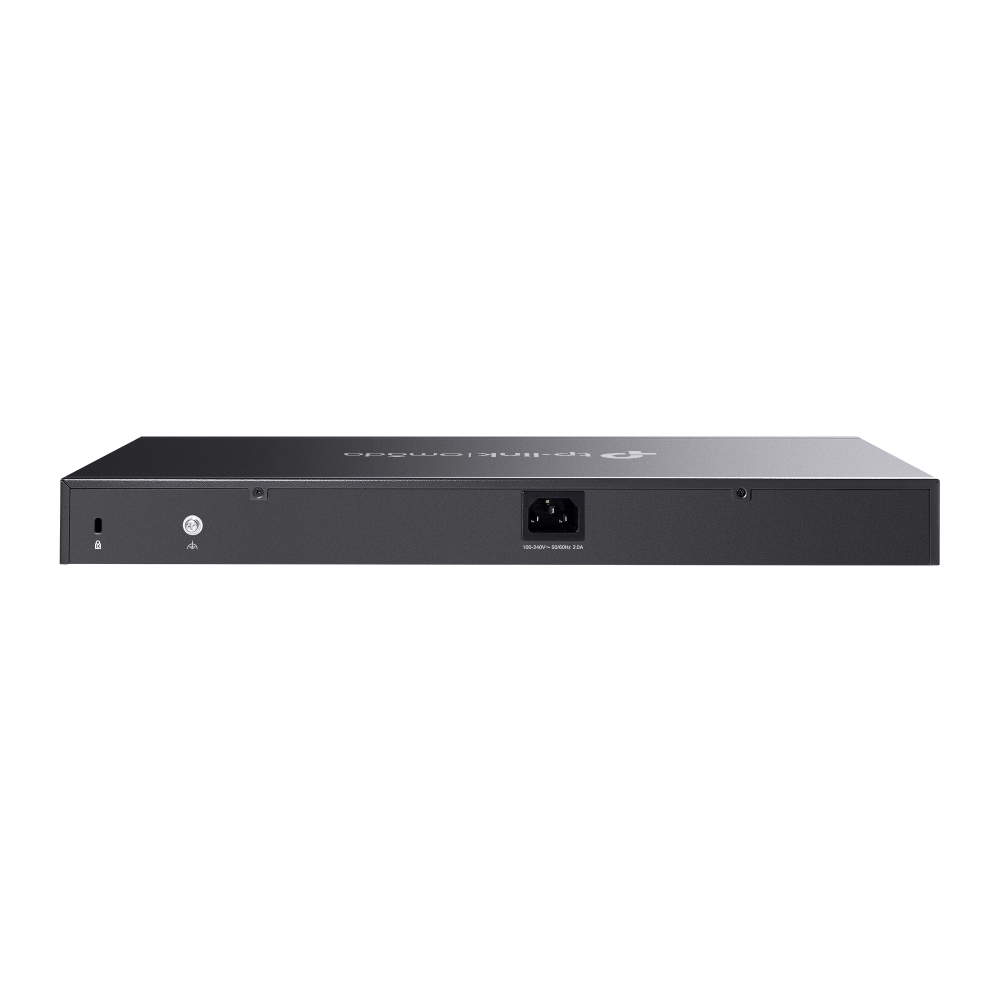

Захранване: 100-240 V AC~50/60 Hz

Вид на монтаж: Rackmount

Работна влажност: 10%~90% без кондензация

Марка: TP-LINK

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Съвместимост с мрежови стандарти: IEEE 802.3x Flow Control; IEEE 802.1w; IEEE 802.1p; IEEE 802.3ad; IEEE 802.1x; IEEE 802.1d

Размери дълбочина: 220 mm

VPN: VLAN Replace; VLAN Mapping

Размери ширина: 440 mm

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Цвят: Черен

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

В наличност: LIMITED STOCK

Влажност на съхранение: 5%~90% без кондензация

Работна температура: 0℃~45℃ (32–113 ℉)

Приложение: Rackmount

Размери височина: 44 mm

24-портов 10GBASE-T L2+ управляем комутатор с 8 10GE SFP+ слота TP-Link Omada SX3832

Версия: 1.0

Производител: TP-LINK

Гаранция: 60 месеца
