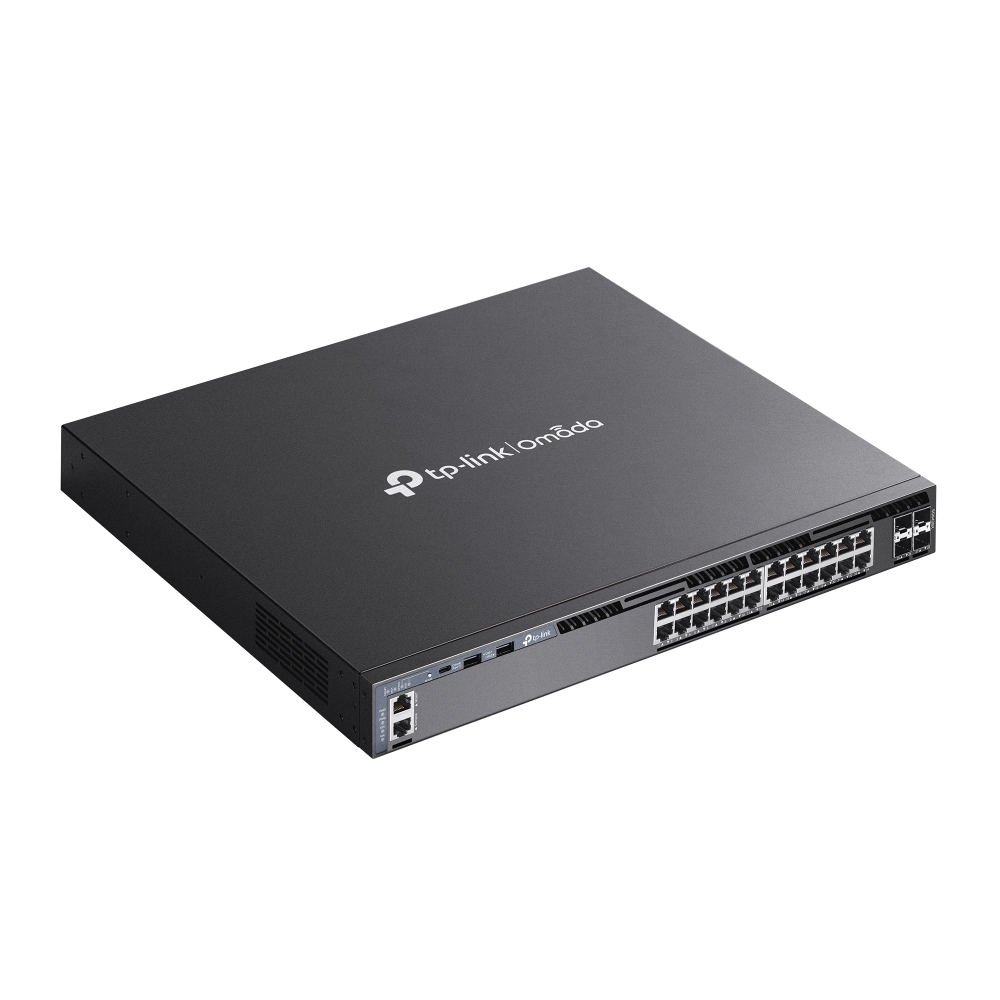

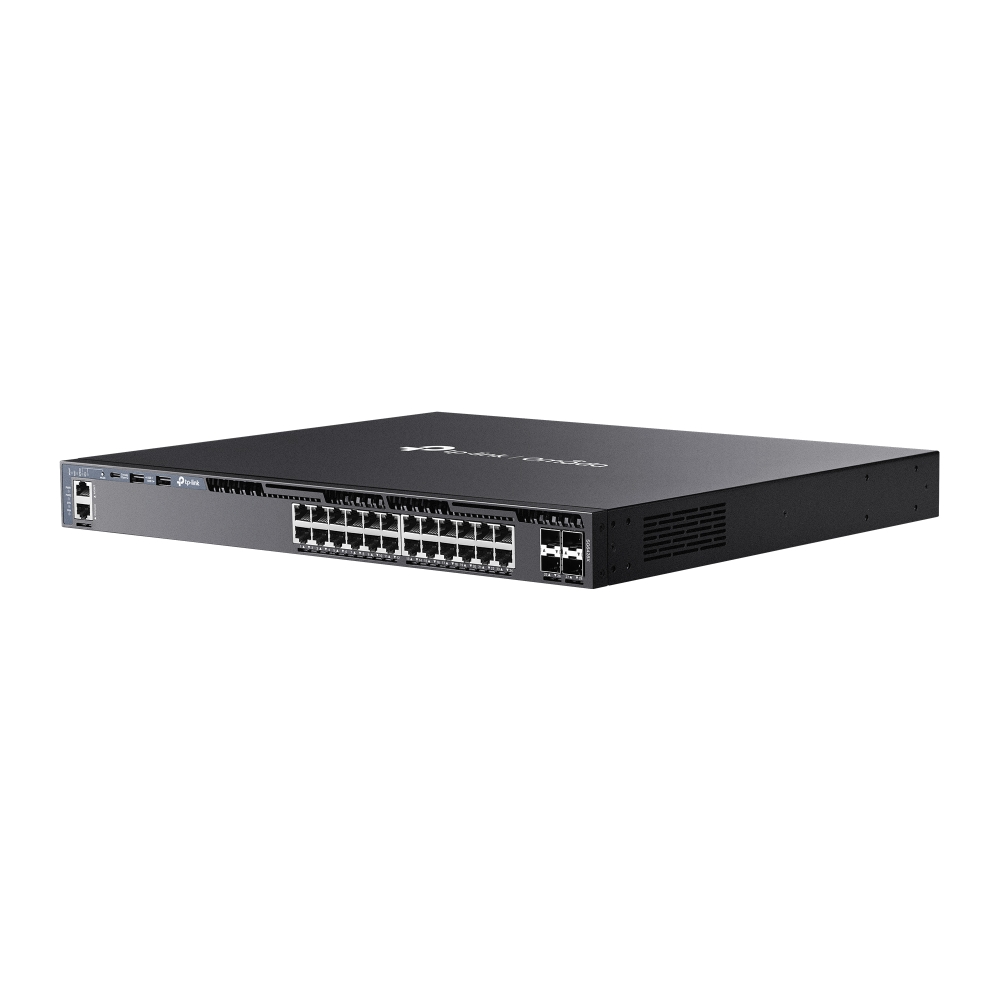

24-портов Gigabit Stackable L3 управляем комутатор TP-Link Omada SG6428X с 4 10G слота

L3 Превключващи функции: VRRP: Version v2/v3, Max 64 groups; Max 1,024, IPv6: Max 512; Static Routing; Max 1,000 Manual Binding Entries; Static ARP: 512 static entries; IPv4: Max 256, IPv6: Max 256; RIP: Version v1/v2, Max 8,190; IP Interfaces:; Relayed VLAN; Host Route Table: Max 6,100 entries; Relayed Interface; ECMP: 256 entries, max 32 ECMP Nexthops per Destination; Proxy ARP; Dynamic ARP: 7,680 dynamic entries; OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097; DHCP Server:; Max 64 IP Pools; DHCP Server/Relay

Размери ширина: 440 mm

L2 комутационни функции: IGMP Snooping; 802.3x Flow Control; Multicast; Spanning Tree Protocol; L2 Multicast Table; Port-based and VLAN-based Loopback Detection; Multicast Filtering; Fast Leave; Static Link Aggregation; MAC Address Table; PIM-DM, PIM-SM (IPv4); MLD Snooping; Supports 2,048 IGMP groups; Static Multicast IP; RSPAN; Multicast VLAN Registration (MVR); ERPS

Софтуерни функции: Quality of Service; Advanced Features; Security; VLAN; L3 Features; L2 and L2+ Features

Работна температура: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters; -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters; -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters

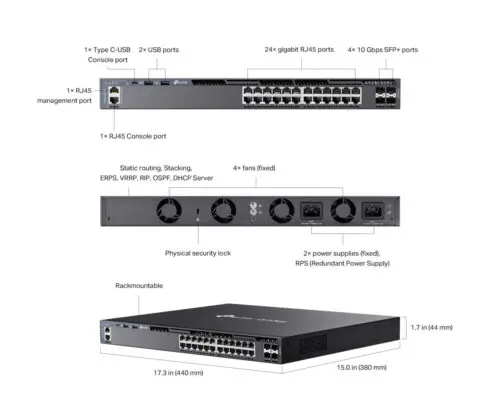

Ethernet портове: 1× RJ45 Management Port; 1× RJ45 Console Port; 4× 10G SFP+ Slots; 24× 10/100/1000 Mbps RJ45 Ports

VLAN: VLAN VPN (QinQ): Max 256 entries; GVRP; VLAN VPN (QinQ); MAC VLAN Entries: 200; Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries; Max. 4K VLAN Groups; 802.1q Tagged VLAN; Private VLAN; Management VLAN; Voice VLAN; Multicast VLAN

Влажност на съхранение: 10%~90% без кондензация

Критерии за валидност на гаранцията: Гаранционна карта/Сериен номер

Интерфейс: 4× 10G SFP+ Slots; 1× USB Type-C Console Port; 2× USB 2.0 Ports; 1× RJ45 Management Port; 24× 10/100/1000 Mbps RJ45 Ports; 1× RJ45 Console Port

Марка: TP-LINK

Експлоатационни качества: Table of MAC addresses 32 K; Stacking Number: 4; Switching capacity 128 Gbps per Unit; Packet Buffer Memory 3MB; Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports); Jumbo Frame 9 KB

Работна влажност: 10%~90% без кондензация

Качество на обслужване: Bandwidth Control; Action for Flows; User-Defined OUI; Class of Service; Smoother Performance; Voice VLAN

Размери височина: 44 mm

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Размери дълбочина: 380 mm

Вид на монтаж: Rackmount

Захранване: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)

24-портов Gigabit Stackable L3 управляем комутатор TP-Link Omada SG6428X с 4 10G слота

Производител: TP-LINK

Гаранция: 60 месеца
