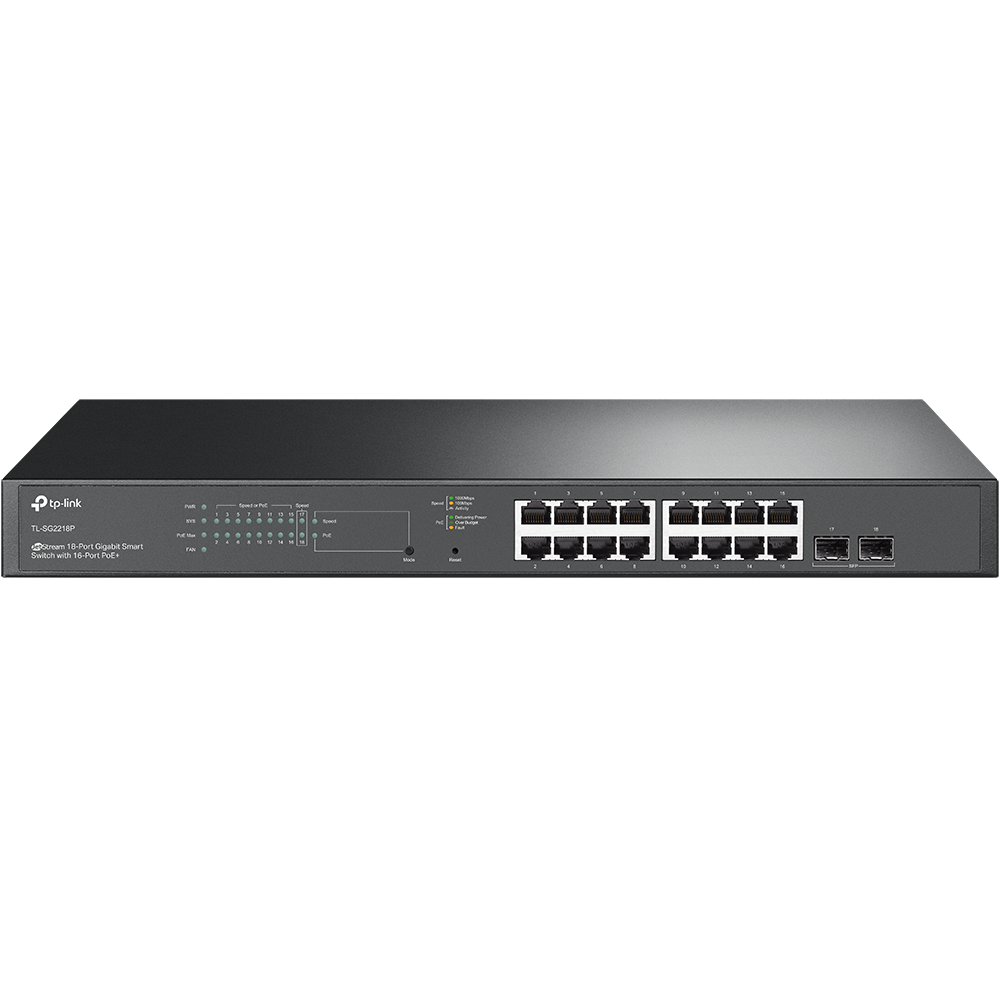

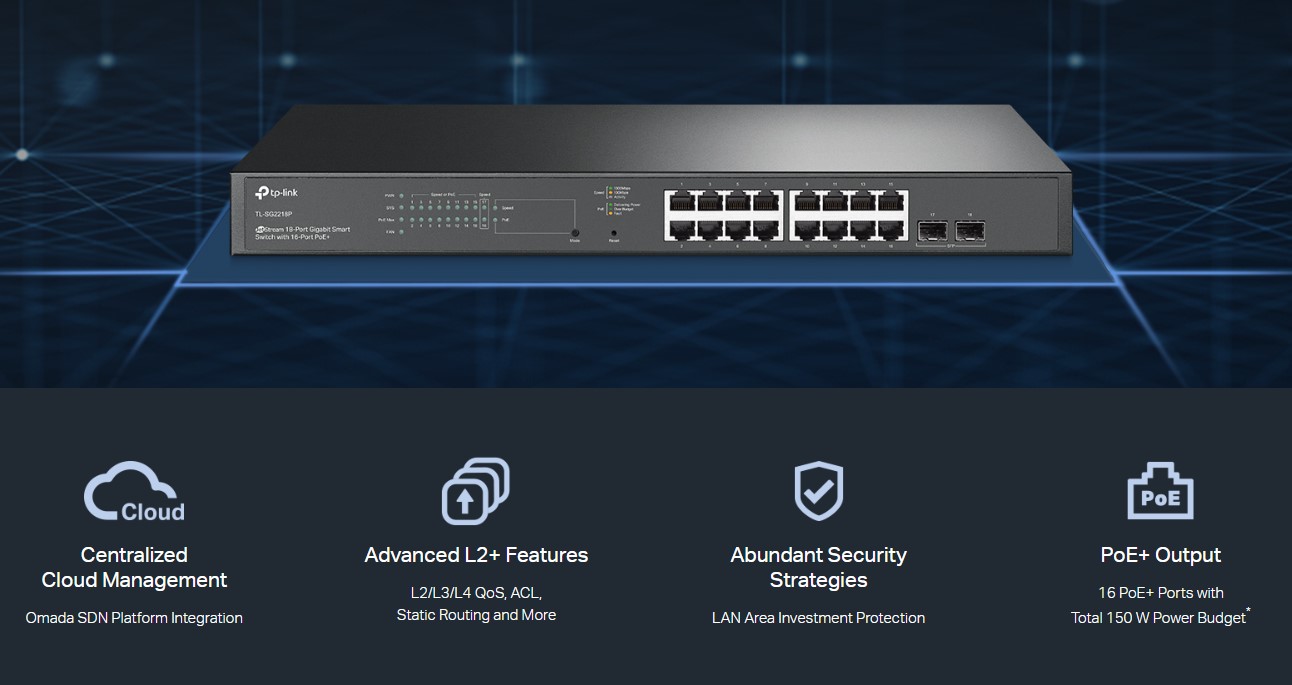

18-портов гигабитен управляем комутатор TP-Link JetStream TL-SG2218P с 16-портов PoE+

Качество на обслужване: Support 802.1p CoS/DSCP priority; Queue Weight Config; Support 8 priority queues; Priority Schedule Mode – SP (Strict Priority) – WRR (Weighted Round Robin); Storm Control; Port/Flow- based Rate Limiting; Smoother Performance; Bandwidth Control

L2 комутационни функции: Loop back detection; DHCP Relay; Static Link Aggregation; 32 IP Interfaces – Support IPv4/IPv6 Interface; 802.1ab LLDP/ LLDP-MED; DHCP Server; One-to-One; Cable Diagnostics; Broadcast/Multicast/Unknown Unicast Storm Recovery; Voice VLANs; Link Aggregation; IPv6 ACL; Many-to-One; DHCP L2 Relay; CPU Mirroring; Device Link Detect Protocol (DLDP); Flow-Based; Spanning Tree STP/RSTP/MSTP; Gratuitous ARP; DHCP VLAN Relay; Ingress/Egress/Both; Port Mirroring; DHCP Snooping; Static ARP; Proxy ARP; DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay; Static Routing – 32 IPv4/IPv6 Static Routes

Критерии за валидност на гаранцията: Гаранционна карта/Сериен номер

Охлаждане: Пасивно

Съвместимост с мрежови стандарти: IEEE 802.1w; IEEE 802.3x Flow Control; IEEE 802.3ad; IEEE 802.1s; IEEE 802.1q; IEEE 802.1p; IEEE 802.1x; IEEE 802.1d

IPv6 приложения: Tracert6; IPv6 SSL; Telnet(v6); IPv6 SSH; IPv6 SNMP; TCPv6/UDPv6; IPv6 Routing*; IPv6 neighbor discovery (ND); Ping6; IPv6 Interface; Path maximum transmission unit (MTU) discovery; IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL*; Internet Control Message Protocol (ICMP) version 6; Http/Https; IPv6 TFTP; DHCPv6 Client

Управление/Management: Web UI; System Log; SNTP; EEE; Dual Image, Dual Configuration; DHCP AutoInstall

+ Подарък: N

Сигурност: IPv6-MAC-Port Binding; Secure shell; IP/Port/MAC based access control; IP-MAC-Port Binding; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IPv6 Source Guard; Port Security; Port isolation; 802.1x and Radius Authentication; AAA; Access Control List; Broadcast/Multicast/Unknown-unicast Storm Control; DoS Defence; Static/Dynamic/Permanent Port Security; Secure web management through HTTPS with SSLv3/TLS1.0; IP Source Guard

Влажност на съхранение: 5%~90% без кондензация

Интерфейс: 2× Gigabit SFP Slots; 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Размери височина: 44 mm

Ethernet портове: 36 Gbps

VLAN: Voice VLAN; MAC/Protocol-based VLAN; VLAN Group; MAC VLAN: 12 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; GARP/GVRP; Max. 4K VLAN Groups; 802.1Q tag VLAN

Тип: Управляем; JetStream

Филтър Swich скорост: 1 Gbps SFP ports; 1.0 Gbps; SFP; Switching capacity: 36 Gbps; 10/100/1000Mbps RJ45 Ports; 10/100/1000 Mbps

Системни изисквания: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Мрежови характеристики: Switching Capacity: 36Gbps

Цвят: Черен

Работна температура: 0℃~40℃ (32℉~104℉)

Вид на монтаж: Десктоп; Rackmount

Захранване: 100～240VAC, 50/60Hz; Max. Power Consumption: 12W

Марка: TP-LINK

Работна влажност: 10%~90% без кондензация

Софтуерни функции: 802.1p/DSCP QoS; CPU Monitoring; IEEE 802.1X: Port-Based Authentication with Guest VLAN Support; IEEE 802.3ad: Link Aggregation; Password Recovery*; IEEE 802.3x: Flow Control

Приложение: Rackmount

Тегло, кг.: 2.3 кг.

Размери ширина: 440 mm

Експлоатационни качества: IEEE802.3x Flow Control

Температура на съхранение: -40℃~70℃ (-40℉~158℉)

Сертификати: CE, FCC, RoHS

Критерии за валидност гаранционна карта: Гаранционна карта/Сериен номер

Размери дълбочина: 180 mm

В наличност: LIMITED STOCK

18-портов гигабитен управляем комутатор TP-Link JetStream TL-SG2218P с 16-портов PoE+

Производител: TP-LINK

Гаранция: 60 месеца
